Suzuki GSX1300BK B-King - Repair Instructions; Front Wheel Components

2D-2 Wheels and Tires:
Repair Instructions

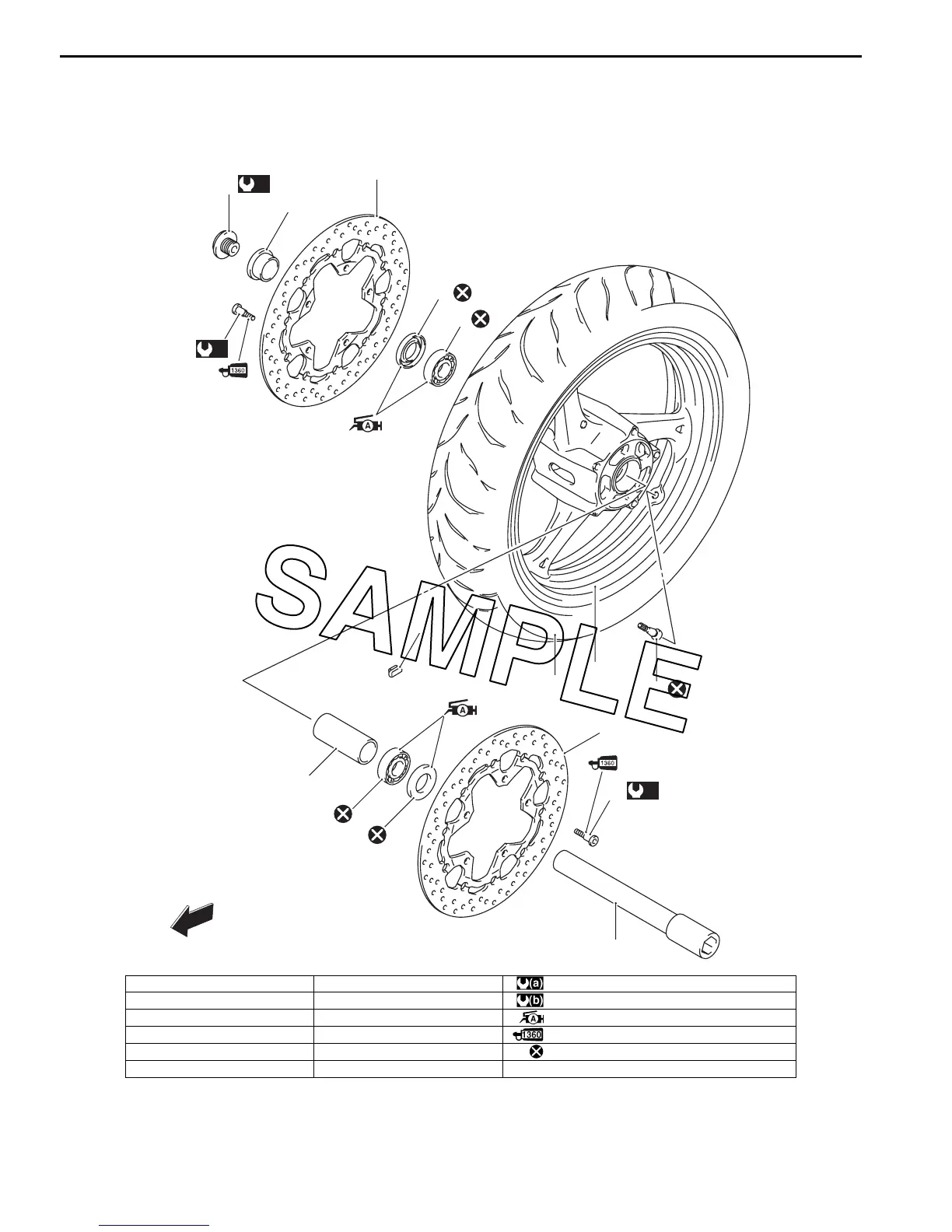

Front Wheel Components
B823H12406001
7
(b)
9
8
3
12
10
11
6
5
4
4
5
3
(a)
2
1
FWD
FWD
(a)
2
I823H1240060-02
1. Front axle 7. Front wheel : 23 Nm (2.3 kgf-m, 16.5 lb-ft)
2. Brake disc bolt 8. Collar : 100 Nm (10.0 kgf-m, 72.5 lb-ft)
3. Brake disc 9. Front axle bolt : Apply grease.
4. Dust seal 10. Tire : Apply thread lock to the thread part.
5. Bearing 11. Wheel balancer : Do not reuse.
6. Spacer 12. Air valve
