Suzuki GSX1300BK B-King - Rear Brake Master Cylinder Components

Brake Control System and Diagnosis: 4A-13

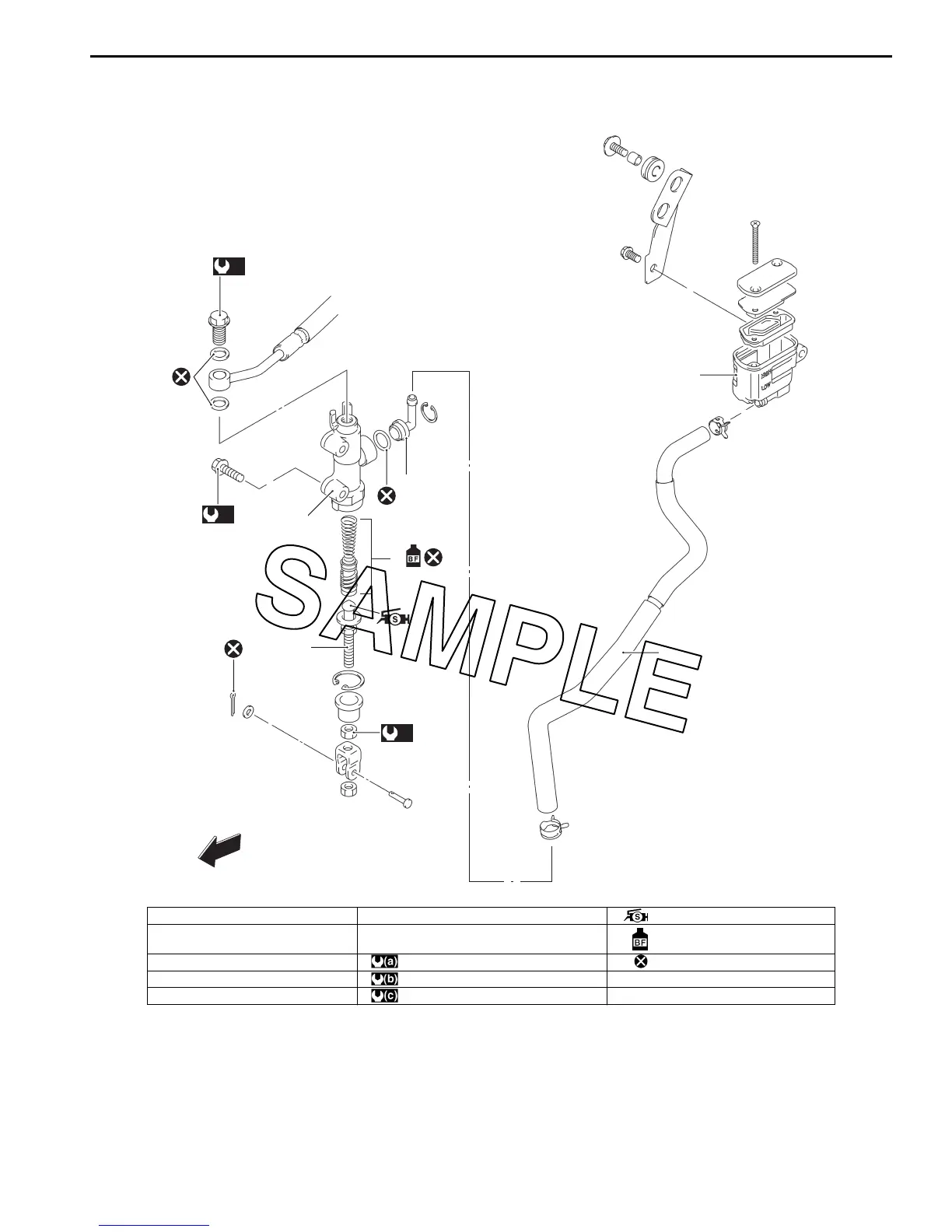

Rear Brake Master Cylinder Components
B823H14106015
(c)
3
(a)
FWD
FWD
(b)
7
6
5
4
1
2
I823H1410046-05
1. Reservoir tank 6. Piston/Cup set : Apply silicone grease.
2. Reservoir hose 7. Push rod : Apply brake fluid.
3. Brake hose union bolt : 10 Nm (1.0 kgf-m, 0.7 lb-ft) : Do not reuse.
4. Brake hose connector : 18 Nm (1.8 kgf-m, 13.0 lb-ft)
5. Master cylinder : 23 Nm (2.3 kgf-m, 16.5 lb-ft)
