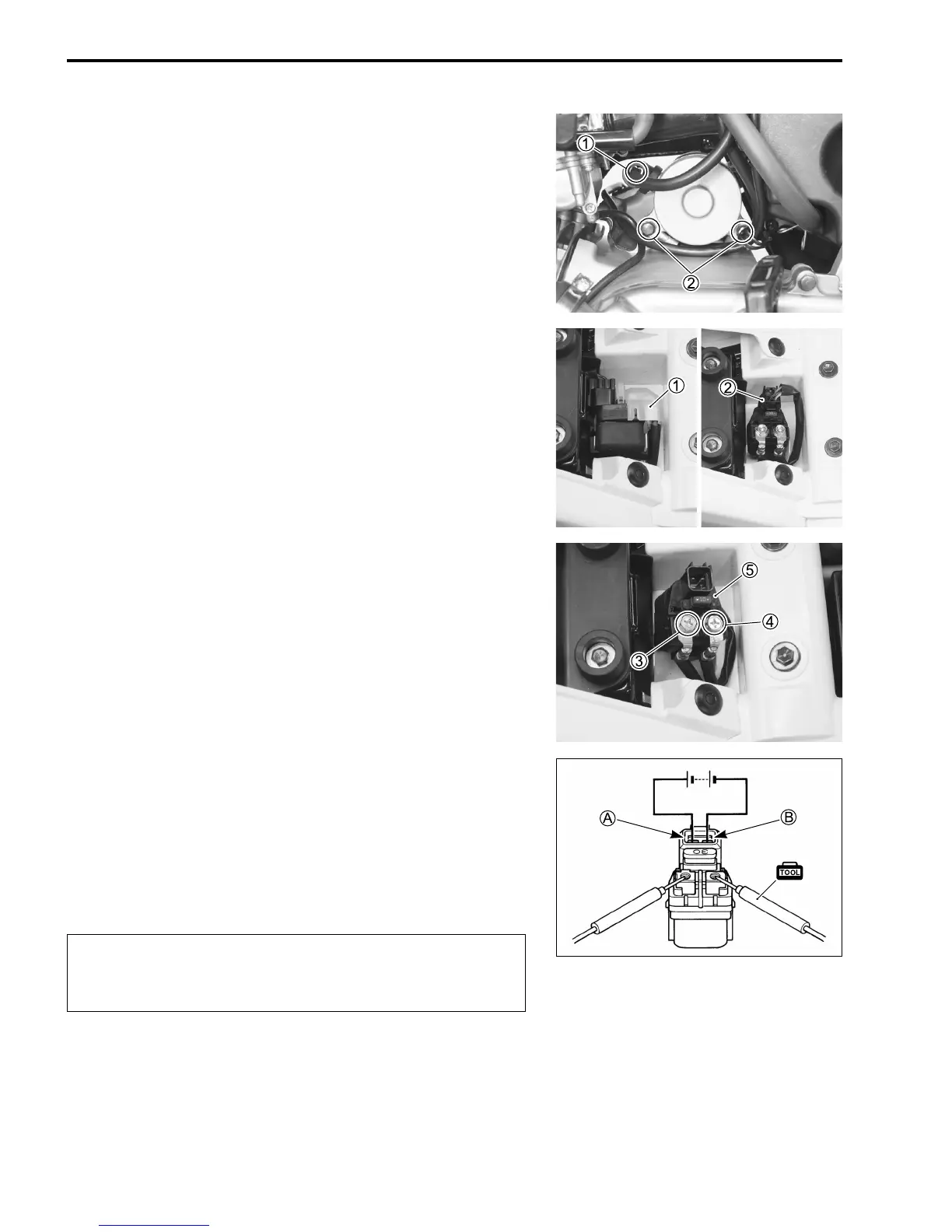

6-16 ELECTRICAL SYSTEM
STARTER MOTOR INSTALLATION
• Tighten the starter motor lead wire mounting bolt
1
and
starter motor mounting bolts
2
.
• Tighten the starter motor lead wire mounting bolt to the speci-
fied torque.
" Starter motor lead wire mounting bolt:
4 N·m (0.4 kgf-m, 3.0 lb-ft)
STARTER RELAY INSPECTION
• Remove the seat. (
5-4)
• Disconnect the battery
-
lead wire from the battery.
• Remove the starter relay cover
1
.
• Disconnect the starter relay coupler
2
.
• Disconnect the battery
+
lead wire
3
starter motor lead wire
4
.
• Remove the starter relay
5
.
• Apply 12 V to
A
and
B
terminals and check for continuity
between the positive and negative terminals using the
multi-circuit tester. If the starter relay clicks and continuity is
found, the relay is ok.
\ 09900-25008: Multi-circuit tester set
= Tester knob indication: Continuity test (?)
Do not apply battery voltage to the starter relay for
more than five seconds, since the relay coil may over-
heat and get damaged.
