SERVICING INFORMATION 7-17

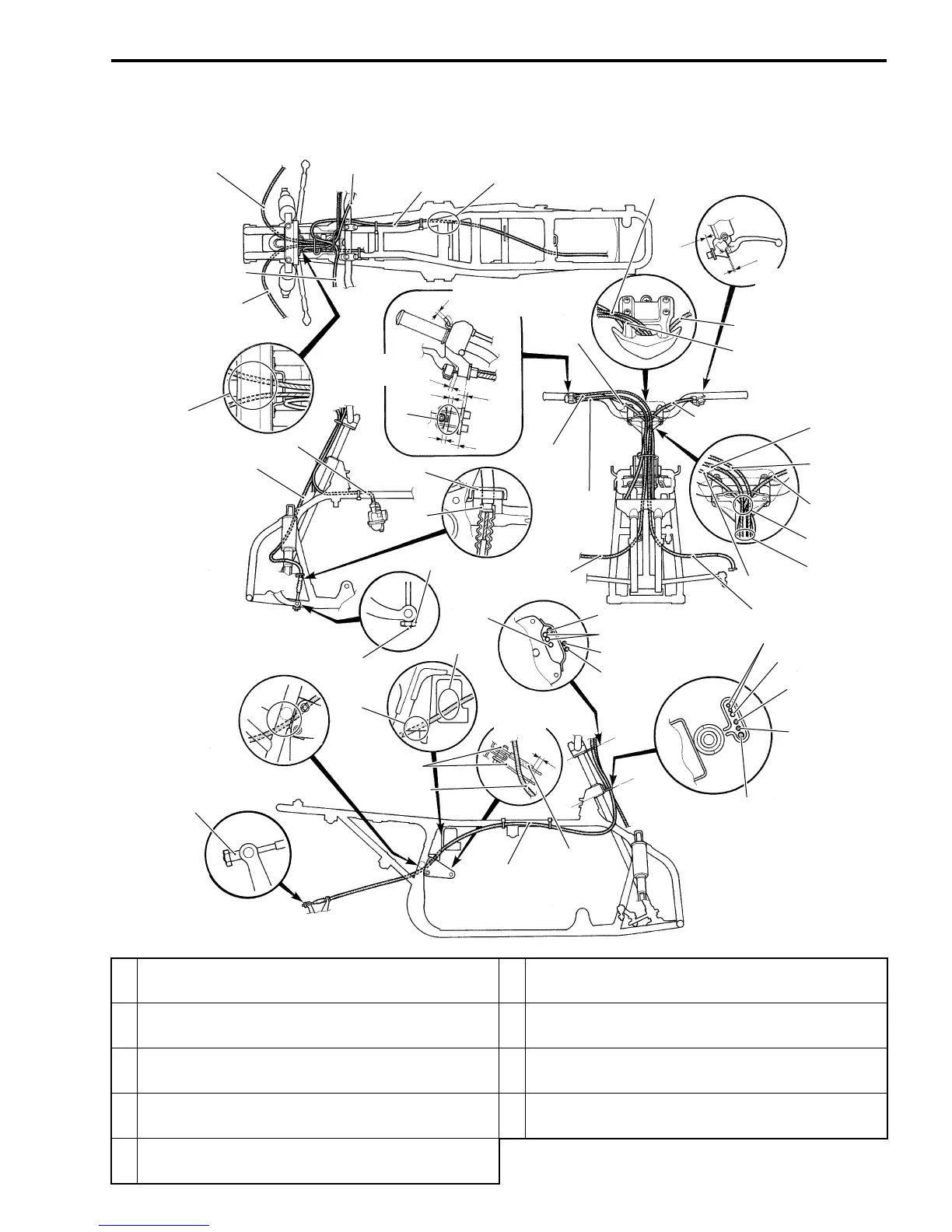

CABLE ROUTING
Front brake cable (R)
Front brake cable (L)
Front brake
cable (L)
Front brake
cable (R)
Front brake cable (R)
Front brake
cable (R)
Bracket
W2
W1
*6
*3
*9
*8
Front brake cable (L)
Front brake
cable (L)
Front brake
cable (R)
Wiring harness
Wiring harness
Throttle cable
Throttle
cable
Front brake
cable (L)
Front brake cable (L)
Front brake
cable (R)
Front brake
cable (R)
Front brake cable (L)
Throttle cable
Rear brake cable
Rear brake cable
Rear brake cable
Rear brake cable
Rear brake
cable
Adjusting nut
Adjusting nut
Screw end
Rear brake
cable
Rear cable
protecter
Rear brake
cable
Rear engine
mounting plate
Rear brake cable
Rear brake cable
Front brake cable
Throttle cable
Throttle
cable
Throttle cable
*1
*2
*7
*4
*5
4 ± 1 mm
(0.15 ± 0.03 in)
5 ± 2 mm
(0.19 ± 0.07 in)
3 ± 1 mm
(0.11 ± 0.03 in)
12 ± 5 mm
(0.47 ± 0.19 in)
*1
Pass the rear brake cable through downside of
the frame.
*6
Fix the boot of the front brake cable.
*2
Pass the brake cables through downside of the
frame.
*7
Pass the rear brake cable through inside of the
rear fender.
*3
Align the clearance less than 1 mm difference
between W1 and W2.
*8
Pass the rear brake cable through outside of the
rear belt cooling duct.
*4
Pass the throttle cable through in side of the rear
brake cable.
*9
Pass the rear brake cable through under side of
the frame.
*5
Pass the front brake cable through out side of
the rear brake cable.
To Next Page
