AMI Sample Sequencer
Product Description
Safety
Features
No data loss after power failure. All data is saved in non-volatile
memory. Over voltage protection of in- and outputs. Galvanic sepa-
ration of measuring inputs and signal outputs.

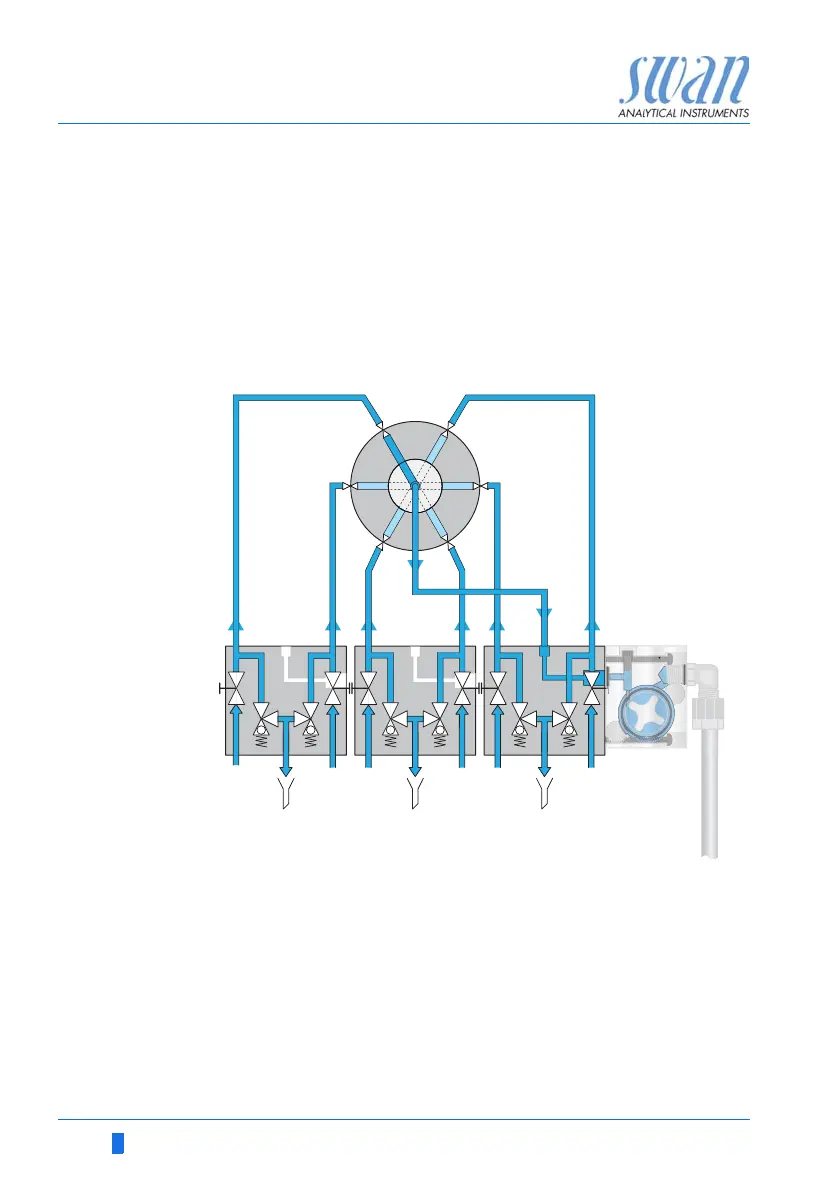

Fluidics The sample enters the flow cell blocks [C, D, E] via the sample in-
lets [I]. Each sample inlet is equipped with a flow regulating valve
[G]. The sample flows through the active sample line via 6-way
valve [A] and flow meter [F] to the instrument. Excessive sample
(e.g. inactive sample lines) flows via overflow [H] to the atmospher-
ic drain [J].
A
B
C
D
6-way valve
Sample outlet
Flow cell block with sample
inlet 1 and 2
Flow cell block with sample
inlet 3 and 4
E
F
G
H
I
J
Flow cell block with sample
inlet 5 and 6
Flow meter
Flow regulating valve
Overflow
Sample inlets 1–6
Atmospheric drain
