Swan Analytical Instruments AMI - Connection Diagram

42 A-96.250.661 / 120418
AMI Sample Sequencer
Installation

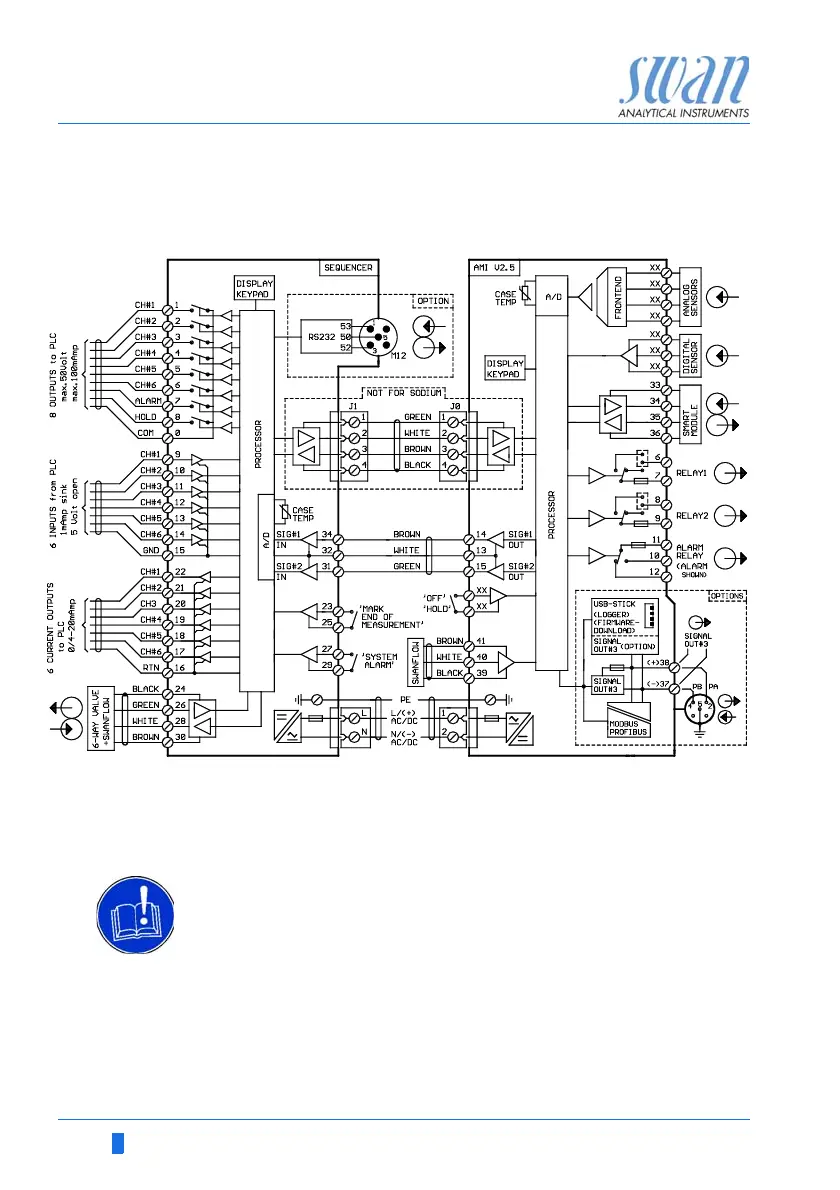

3.7. Connection Diagram
CAUTION
Use only the terminals shown in this diagram, and only for the
mentioned purpose. Use of any other terminals will cause short
circuits with possible corresponding consequences to material
and personnel.
