Swan Analytical Instruments AMI - Connect Sample and Waste

AMI Sample Sequencer
Installation
A-96.250.661 / 120418 25

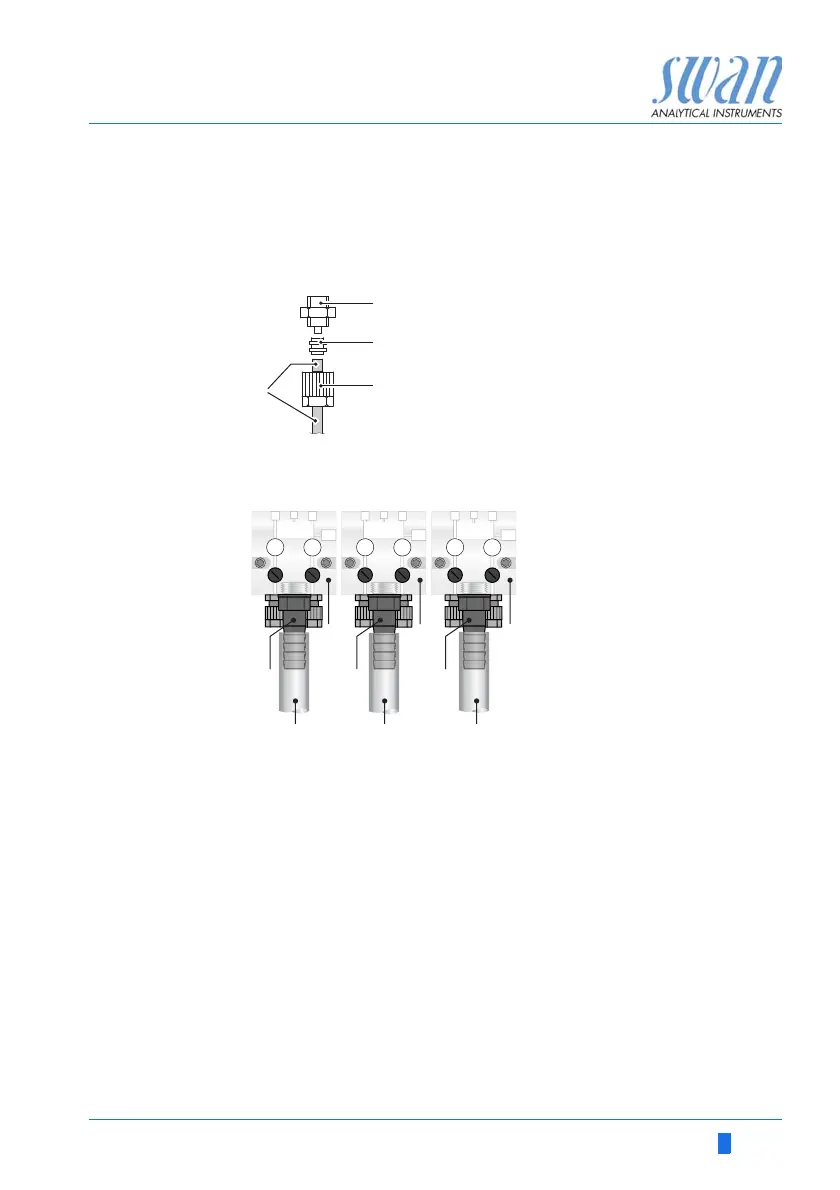

3.3. Connect Sample and Waste
Sample inlet Use plastic tube (FEP, PA, or PE 4 x 6 mm) to connect the sample
line.
Mounting of
SERTO fitting
Waste Connect the 1/2” tubes to the nozzle of the waste funnels and place
them into an atmospheric drain of sufficient capacity.
A
B
C
D
Screw connection
Compression ferrule
Knurled nut
Flexible tube
B
C
D
A
A
B
C
Flow cell blocks sample inlet 1 to 6)
Hose nozzles
1/2” Tube to atmospheric drain
1 2 3 4
5 6
AAA
BB
B
C
CC
