34 A-96.250.661 / 120418
AMI Sample Sequencer
Installation
Mode External If the AMI analyzer is set to mode external, each sample stream to
be measured has to be activated by closing the respective contact.

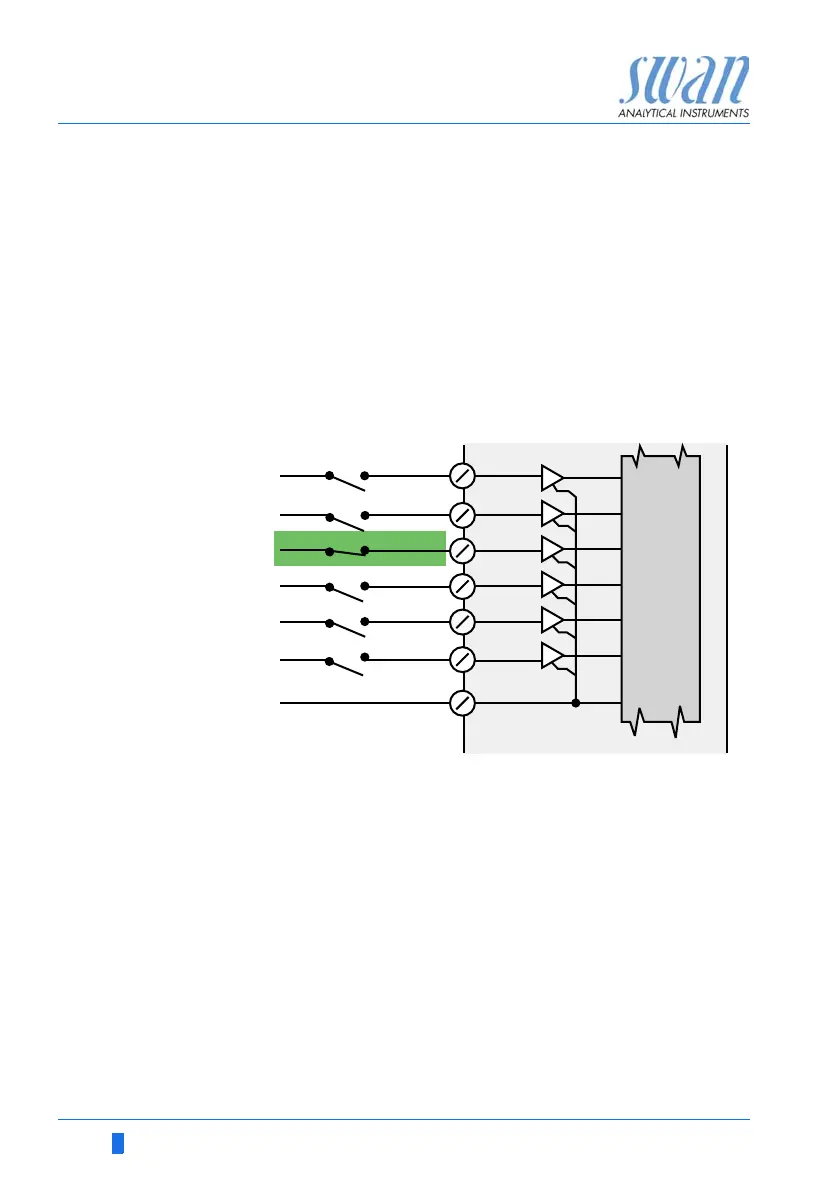

In the example below, the sample stream 3 (CH3) highlighted in
green will be measured as soon as the AMI analyzer has finished
the previous measurement.
NOTICE:
• Closing more than one of the inputs will cause an undefined
state.
• If all inputs are open the AMI analyzer switches to standby
mode.
Connect the signal inputs according to the connection diagram.
Mode Fieldbus The same function as External but using Profibus or Modbus proto-
col.
Further information concerning <Channel Selection> see Manual of
the corresponding AMI analyzer.
NOTICE: The AMI Sample Sequencer can not be connected to
a Profibus or Modbus system.
Install the Profibus or Modbus interface on the AMI analyzer.
CH1
SEQUENCER
Processor
CH2
CH3
CH4
CH5
6 Inputs from PLC
CH6
GND
9
10
11
12
13
14
15
1 mA sink, 5 V open
