1.6.3 CHANNEL KEY
The D100S unit can command up to 64 channels. The use of D108 or 102 units makes it possible to connect up to
64 P2, P5, P10, P25 or P50. Use of the D104 (for connecting RS232 instruments) is possible for up to 48 Opto-RS
Sylvac instruments.
All the following functions are available for each channel independently :
any Preset value.
specific tolerance limit.
normal mode, maximum mode, minimum mode, delta mode (max-min), or mean mode ( max + min) / 2
storage of values.
measuring direction.
combination A+/-B or A+/-B+/-C
any multiplication factor including diameter mode.
classification on 2 to 6 classes.
probes P2, P5, P10, P25, P50 or Opto RS simplex or duplex instruments.
Note: When using the display unit only one probe (without additional accessory unit D102/D108/D104), the same
probe can be used for 64 channels and thus manage up to 64 measurements.
Probe 1 is allocated to channel 1, probe 2 to channel 2 etc.. This allocation can be modified, and therefore several
channels may be allocated to a single probe. For example, channel 3 can be allocated to probe 1.
In the case of A+/-B or A+/-B+/-C, channel combinations, the active tolerances, preset, multiplication factor,
measuring direction and so on will be those on channel A, i.e. the first channel.

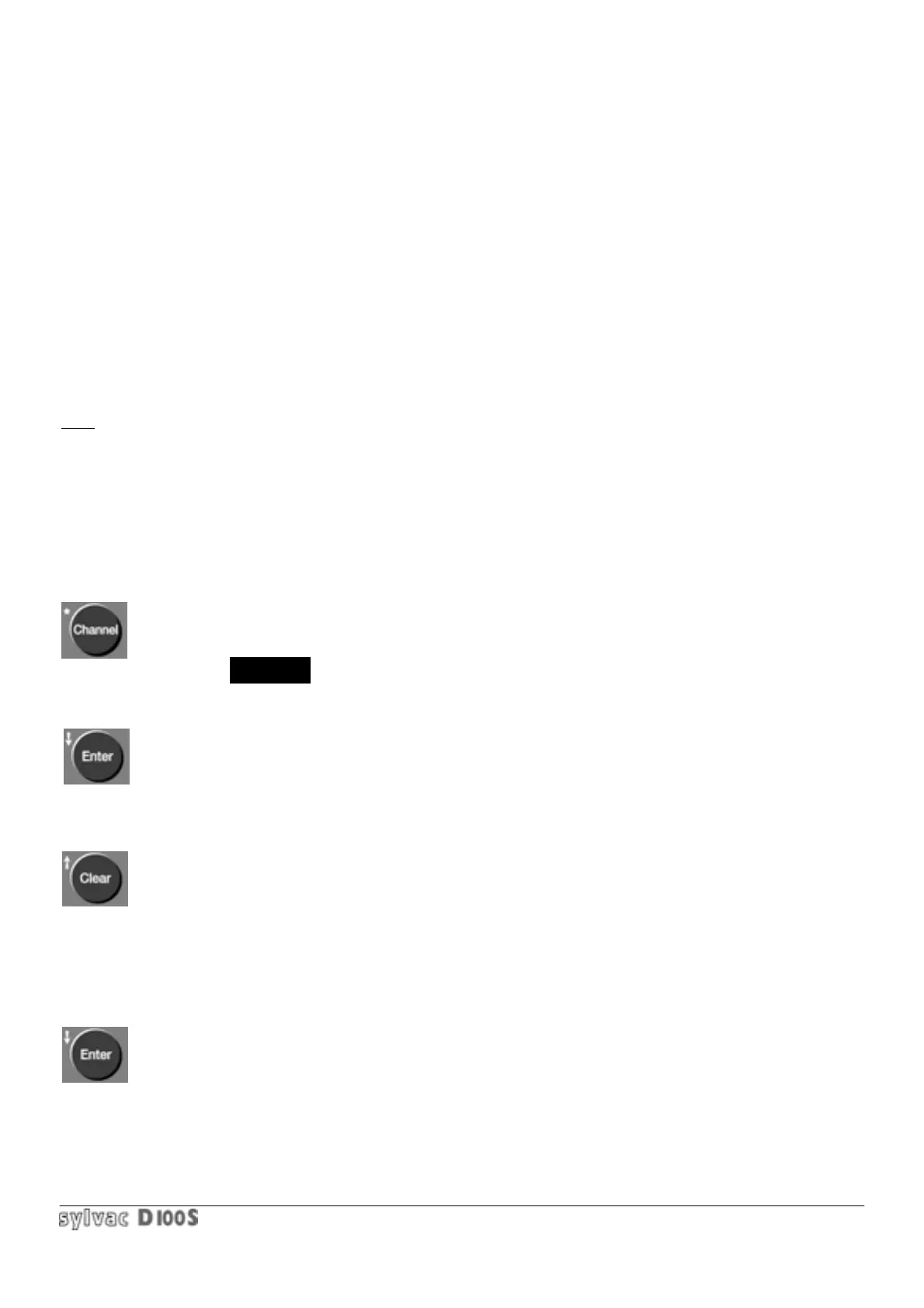

1.6.3.1 selection of measuring channel :
1/ press lchannel key , CHANNEL appears as negative on the screen.
2/ select number of required channel.
3/ confirm by pressing Enter key, CHANNEL this time appears as positive on the screen —> end of input.
1.6.3.2 selection of channel immediately following :
1/ press Clear key, if it is configured for the channel selection.
It is also possible to configure the external contacts (foot pedal) for the channel selection.
(refer to section 1.6.11).
1.6.3.3 selection of the directly preceding channel :
1/ press Enter key, if it is configured for the channel selection.
