5 PNEUMATIC COMMAND UNITS D110(V) AND D111(V)
5.1 GENERAL DESCRIPTION
The pneumatic command units D110/D111 or D110V/D111V (vacuum) are designed to work with the display units
D100S. They can be mounted on the display unit by inserting the 4 plastic legs, or, for weight considerations, under
the display unit. They can also be positioned separately away from the display unit, close to the probes.
- the D110 / D110V units allow the control of pneumatic/vacuum lifting of from 1 to 16 probes.
- the D111 / D111V pneumatic/vacuum extension units allows pneumatic/vacuum lifting of 16 additional probes.
A maximum of 1D110 / V and 3 D111 / V units can be connected to one D100S, allowing the pneumatic/vacuum
command or a maximum of 64 probes.
The retraction and return motion of probes is commanded from D100S unit, i.e. by the Clear and Enter keys, or by
means of the foot pedal. Remote command from a computer for pneumatic lifting is equally possible. Please note
that all pneumatic lifters or vacuum probes are commanded simultaneously, so it is not possible to control each lifter
separately.

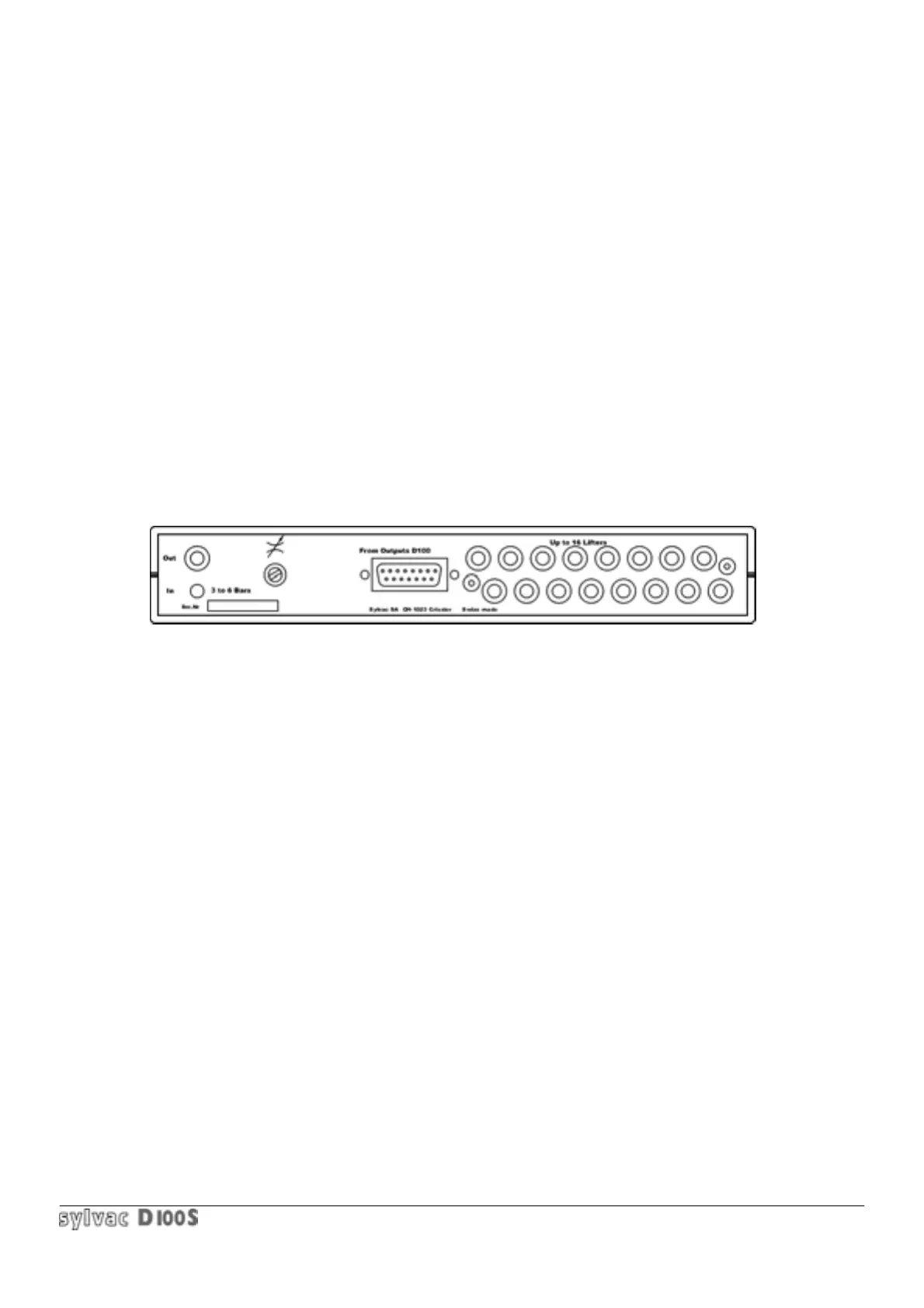

5.2 REAR PANEL (D110 unit)
5.3 OPERATION OF D110 / D110V
1/ Connect the D110 unit to the D100S unit (‘Outputs’ socket) by means of the 15 pin connecting cable.
2/ Connect from 1 to 16 lifters to the pneumatic outputs of the D110.Use the semi-flexible black PUR tube with an,
outside diameter of 4mm and an inside diameter of 2.5 mm which is supplied with the pneumatic lifter. Unused
sockets must have the red plastic plug which close the air outlet.
3/ Connect the air system at the point marked ‘In’ on the unit using the quick connector supplied and a tube with an
outside diameter of 6 mm and an inside diameter of 4 mm. Filtered and dry air, 3 to 6 bars.
4/ Configure the D100Sunit for lifting :
- by means of the Clear and Enter keys : Set Up then Enter (refer to Section 1.6.2)
-using the foot pedal (external contact) : Clear key then Setup key then 1 then 6 (refer to Section 1.6.11 ).
