4 SYLVAC PROBES P2, P5, P10, P25 AND P50
4.1 GENERAL DESCRIPTION
Sylvac long travel probes are of compact design and are distinctive by their stability and consistent measuring
accuracy. In addition they are absolute, i.e. having been disconnected then connected again or after switching off
the unit, they still display the same measuring value. They have no speed limit, so that they never lose their absolute
value.
The built-in preamplifier allows the use of long cables without intermediate amplification. The probe is not affected by
magnetic fields. (Up to 20 meters)
P2B Measuring range of 2 mm (ball cage) P5V Same as P5 (vacuum lifting)
P2BL Same as P2B (right-angled output cable (90°)) P5VL Same as P5V (right-angled output cable (90°))
P2BV Same as P2B (vacuum lifting) P10 Measuring range of 10 mm
P2BVL Same as P2BV(right-angled output cable (90°)) P10L Same as P10 (right-angled output cable (90°))
P5 Measuring range of 5 mm P25 Measuring range of 25 mm
P5L Same as P5 (right-angled output cable (90°)) P25S Same as P25 (with rubber boot)
P50 Measuring range of 50 mm
Different lifting methods are available for various probes :
- by photo-cable
- by foot pedal and cable
- by pneumatic lifter : D110 unit
- by vacuum, only for P2 - P5 : D110V unit

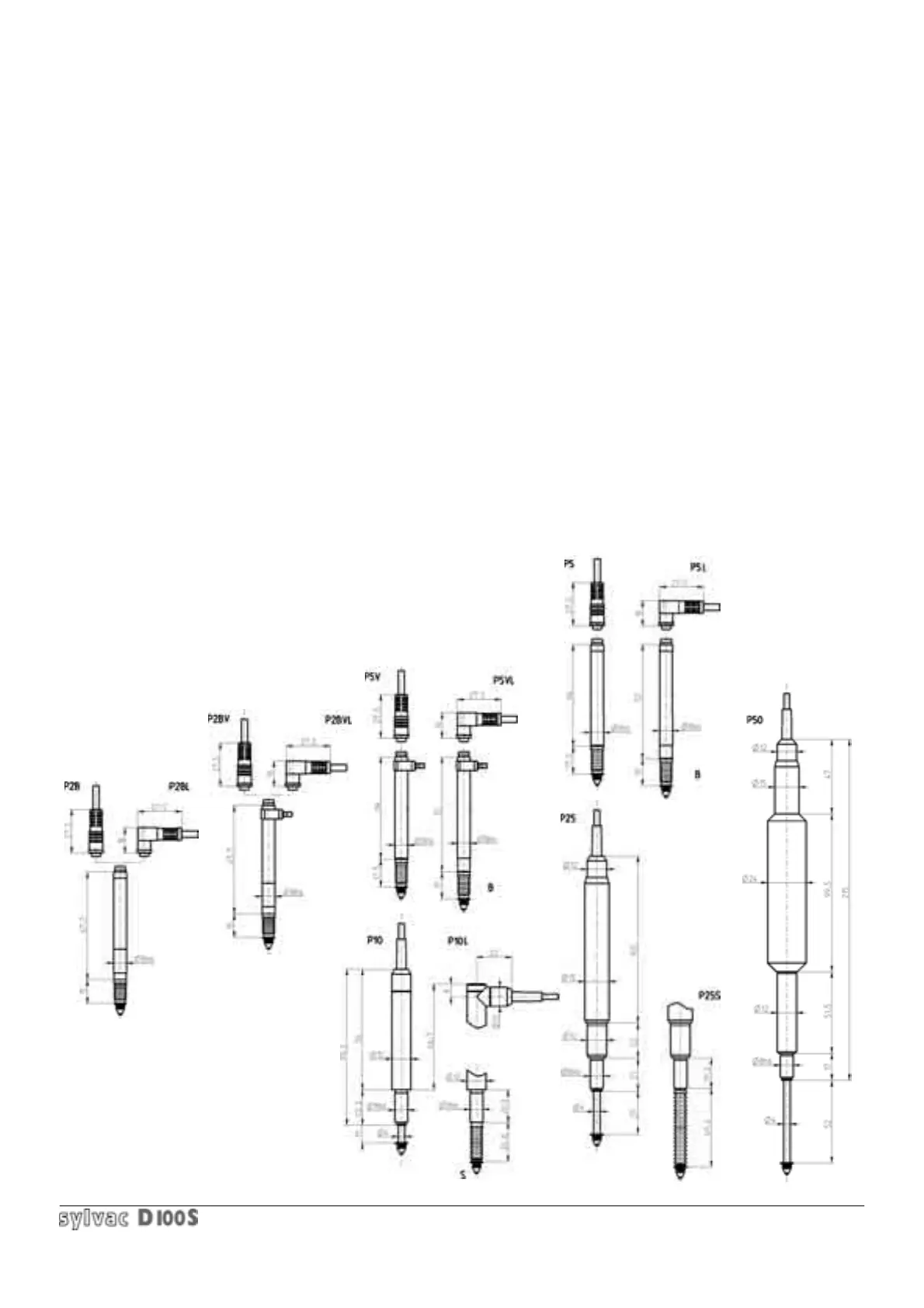

4.2 PROBE DIMENSIONS
