Sylvac D 100S - Examples of Operations; Simple Measurements; Combined Measurements a +;-B (Using D102 or D108); Combined Measurements a +;- B +;- C

12
Choose the required channel + channel number
+
Reverse measuring direction
+
Choose the measuring direction of channel 1
+ + + +
Choose combination 1 + 2 or 1 - 2
once = +
twice = -
+ +
Proceed in the same way as for 2 channels. Scan, Preset, Enter
+
Channel + Channel then multiplication factor (e.g. 0.33333 )
+
Enter nominal value, the upper and the lower tolerances :
Activates or deactivates the tolerance indicators.

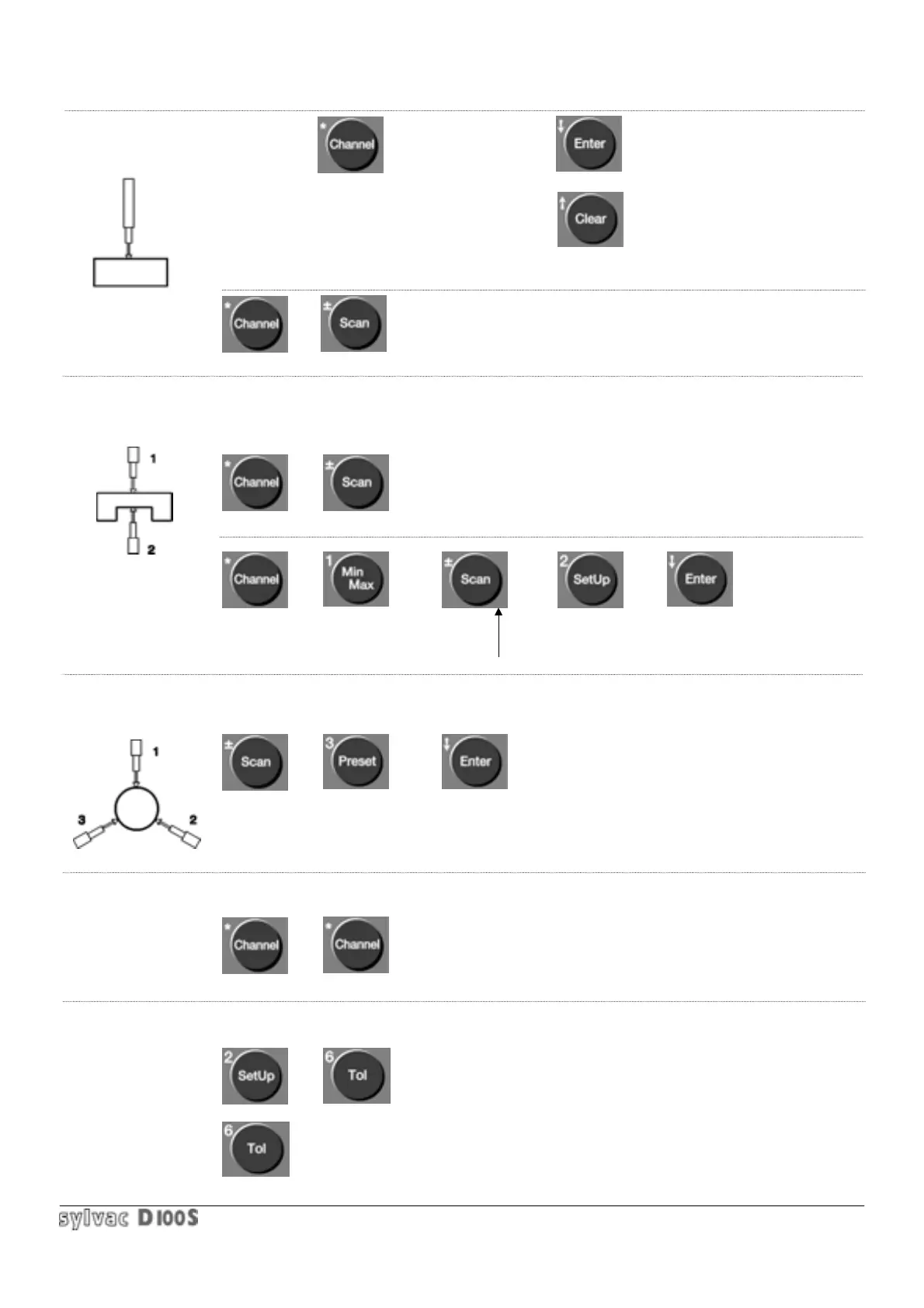

1.5 EXAMPLES OF OPERATIONS
1.5.1 Simple measurements :
1.5.2 Combined measurements A +/-B (using D102 or D108)
:
1.5.3 Combined measurements A +/- B +/- C :
1.5.4 Multiplication factor: ( also available for A+/-B et A+/-B+/-C combinations)
1.5.5 Measurements and checking tolerance limits
:
+ ENTER or
if this channel was combined
(A+/-B or A+/-B+/-C)
