1.8.5 Socket for mains charger
May be inserted in either 5, 6 or 7.
Before insertion : ensure socket polarization is at 12 o’clock.
1.8.6 Socket for external contact 1, e.g. foot pedal
May be inserted in either 6 or 5.
The external contact may be configured for different functions, refer to section 1.6.11.
1.8.7 Socket for external contact 2, e.g. second pedal
This second may have all functions of contact 1. One pedal can be used to transmit data and the second for
changing channel.

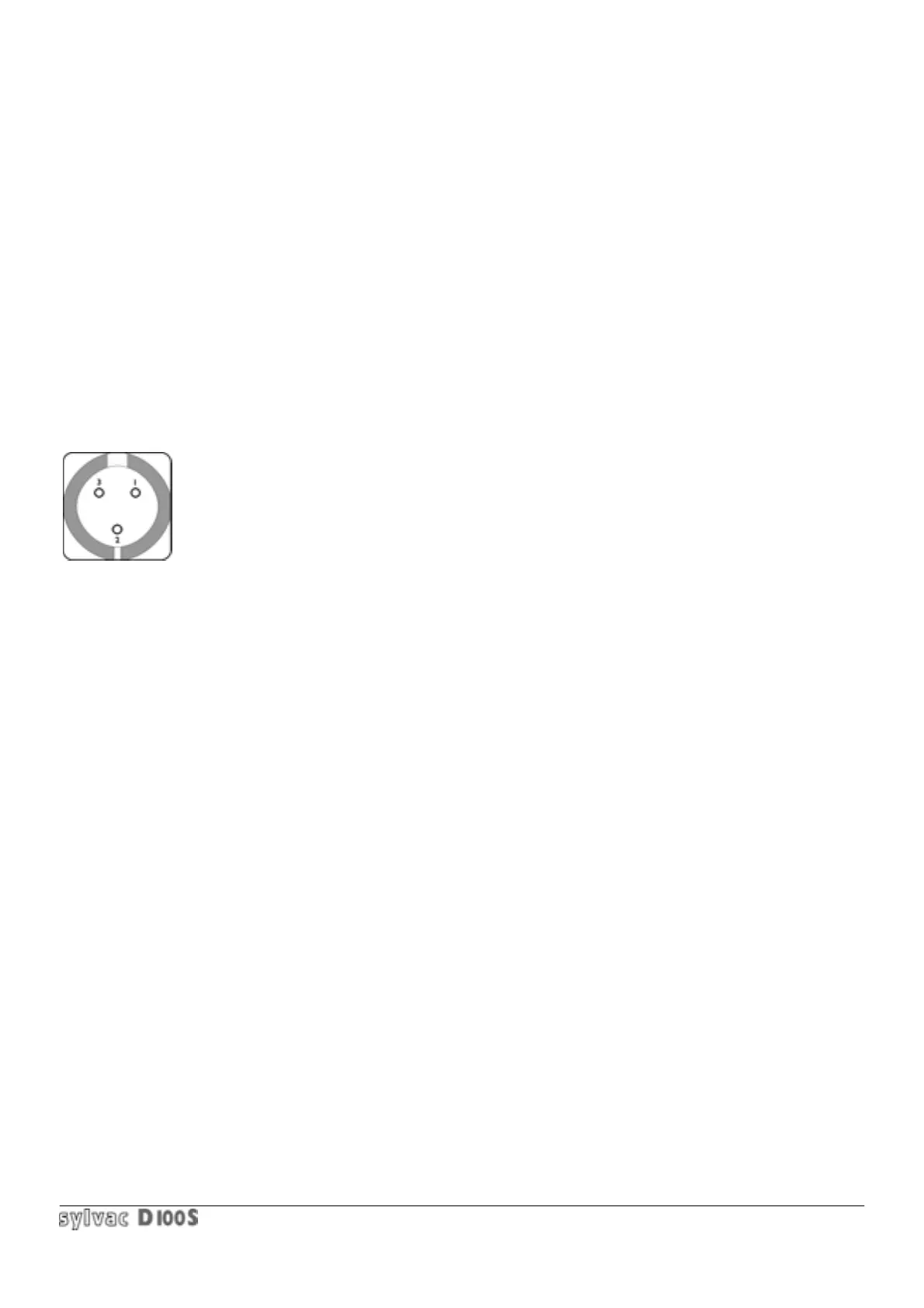

Allocation of pins for 4, 6 and 7 (external view) :
1 : Ground
2 : Power input/charger + 8.5 V
3 : External contact input 1 or 2 (signal = 0 V)
1.8.8 Probe input
Probe input or for linking cable for multi-channel unit D102 or D108.
For best connection, screw the plug into the socket.
1.8.9 Command output
Socket for command cable used with multi-channel unit D102, D108 or D104.
