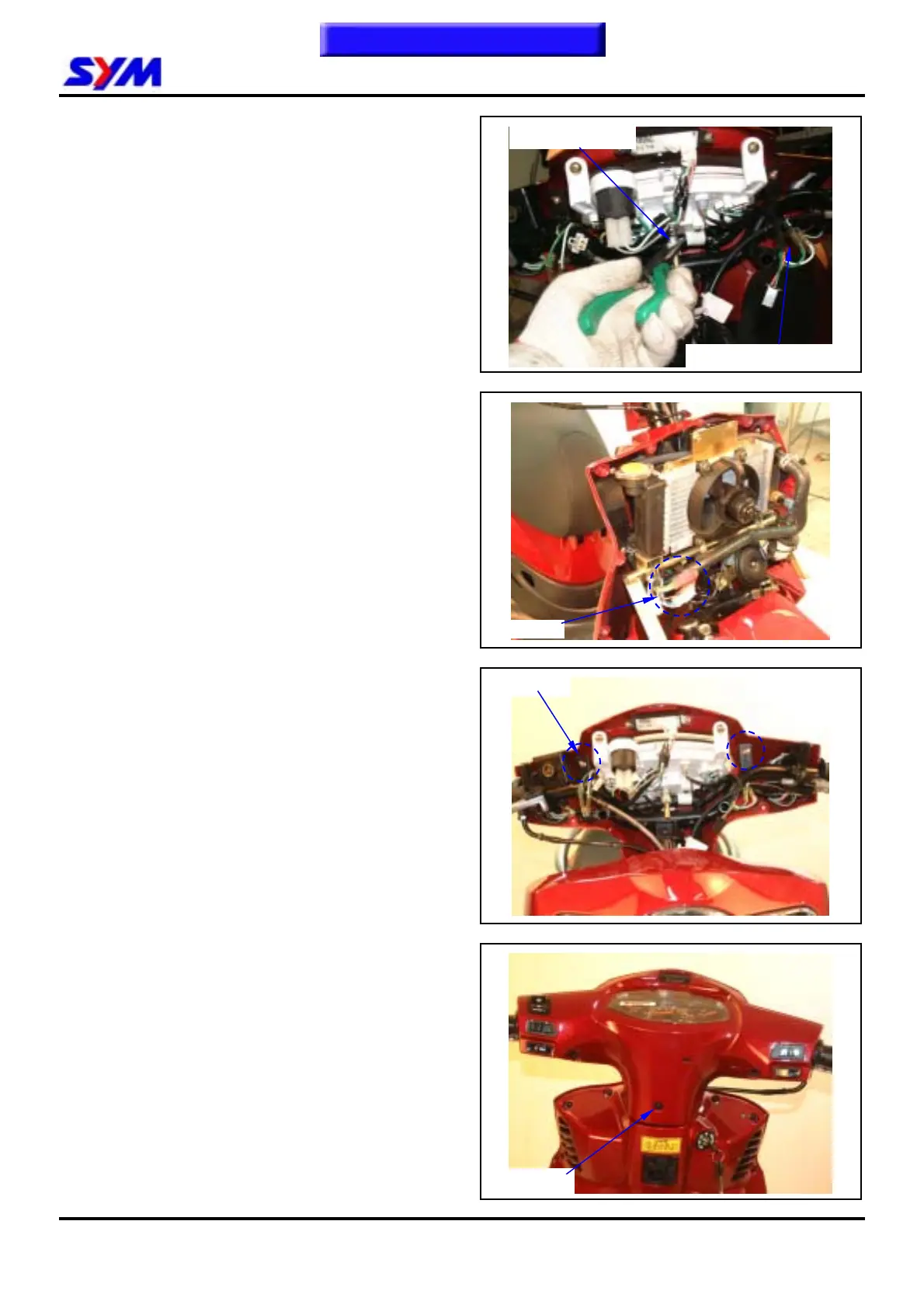

13. BODY COVER
13-5
Handle rear cover
Remover
Remove front cover.
Remove speedometer cable.
Disconnect each switch connectors.
Remove electric line coupler from the radiator.
Loosen 2 screws from the handle rear cover.
Loosen 1 screw from backside of the handle rear
cover.
Remove handle rear cover.
2 screws
2 Screws
Speedometer cable
Each switch connectors
Coupler
