8. CYLINDER HEAD/VALVE
8-4

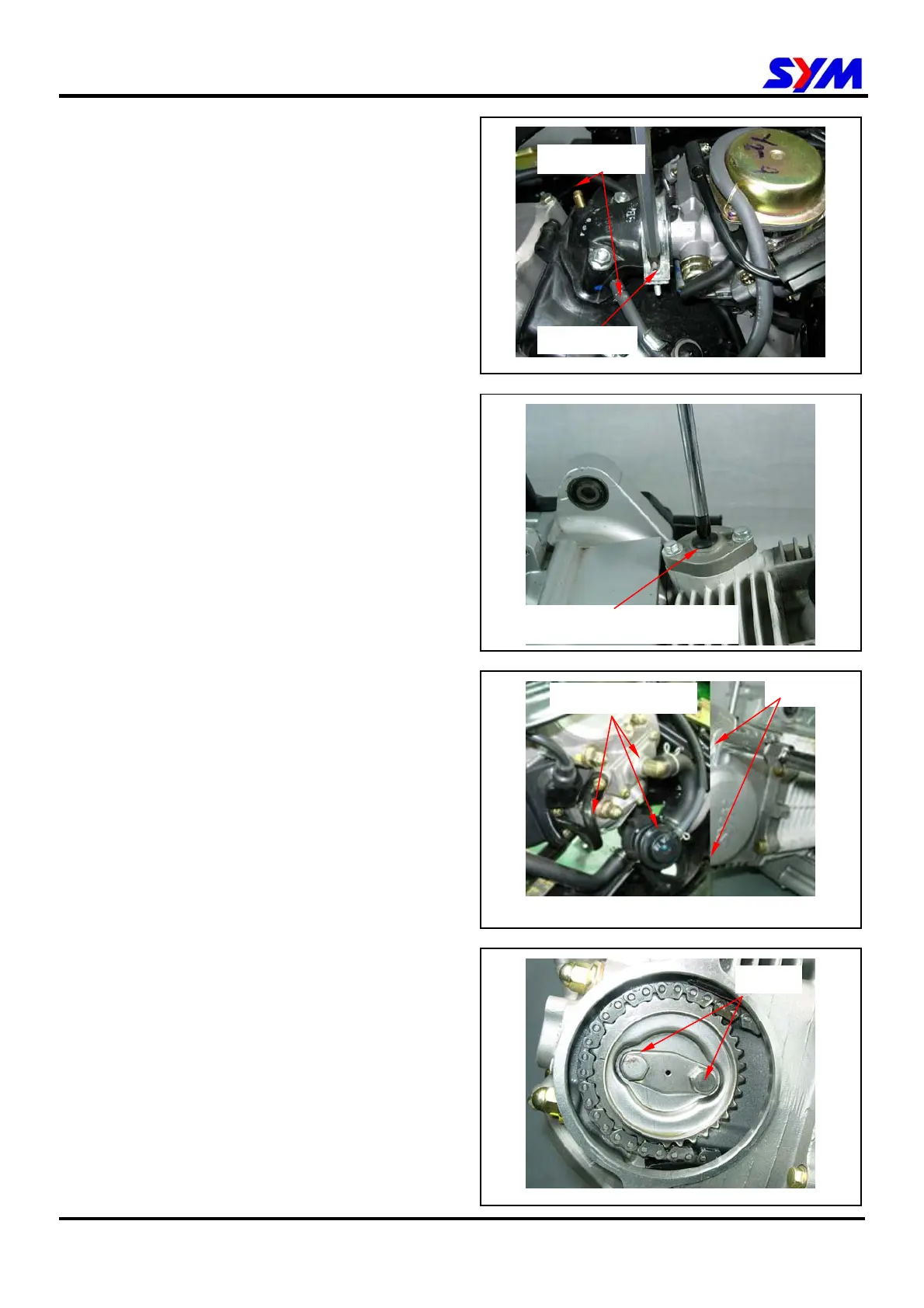

Cylinder Head Removal
Remove seat, luggage box and body cover.
Remove engine. (Refer to chapter 5)
Remove the clamp strip bolt of carburetor, and
disconnect vacuum tube from the carburetor
insulator.
Remove holing cap for the adjustment bolt of cam
chain tensioner, and then loosen the tensioner by
turning a flat-driver in C.W direction.
Remove the side cover mounting bolts of cylinder
head, and then take out the side cover.
Remove
the A.I.A.C Tube connect to the air cleaner
connecting tube and the
air pipe.
Remove the A.I.C.V Tube B, the A.I.C.V reed valve
joint tube and A.I.C.V.P.B joint tube.
Remove cam sprocket bolts and then remove the
sprocket by prying chain out.
Vacuum tube
Clamp strip
2 bolts
Holing cap of adjustment bolt
Air pipe, A.I.C.V &
reed
alve Comp.
2 bolts
To Next Page
