14. BRAKE
14-12

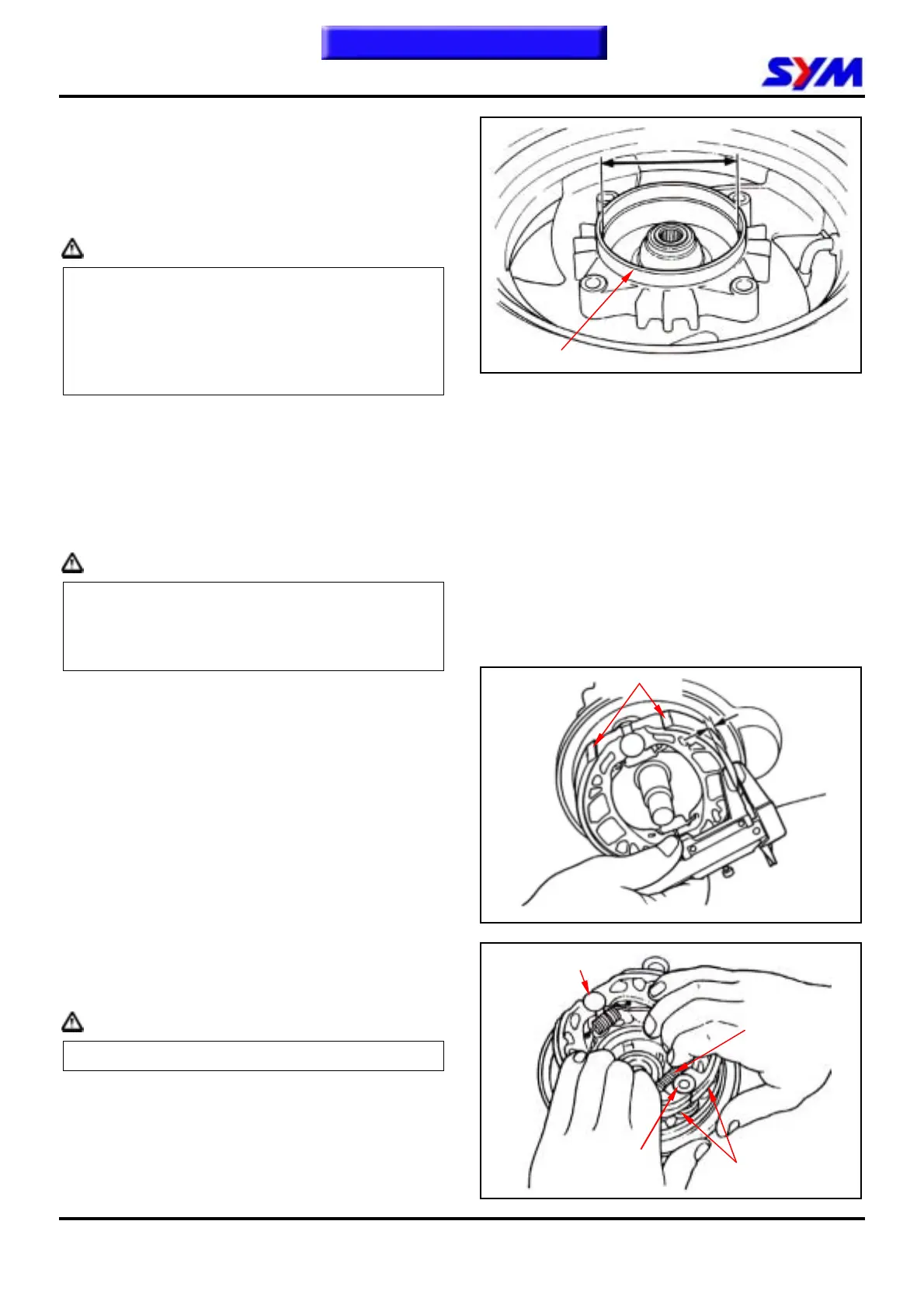

Rear Drum Brake
Remove brake drum
Remove wheel and brake drum.
To use vacuum cleaner or other alternatives to
avoid danger caused from dusts.
Caution
y Inhaling brake lining ashes may cause
disorders of respiration system, therefore,
never use compressed air or dry brush to
clean brake parts.
y Brake performance will be reduced by grease
on brake lining.
Inspection brake drum
Check brake drum for damage or wear out, and
replace it if necessary.
Measure the inner diameter of brake drum and
record the max. value.
Allowable limit: 131.0mm
Caution
y Clean the rust onto the brake drum with
#120 sand-paper.
y Measure the inner diameter of brake drum
with micrometer.
Brake lining inspection
Measure the thickness of brake lining at three
points (both ends and center).
If the thickness is less than specified value or if it
is contaminated by oil or grease, replace as a set.
Service limit: Rear: 2.0 mm
Remove brake lining
To both hands pulls open brake lining, remove
brake lining from brake.
Caution
Brake linings must be replaced as a shoes.
Brake lining
Brake lining
Spring
Brake cam
Lock pin
Brake drum
