5. ENGINE REMOVAL
5-2
Removal of Engine
Open seat and remove the luggage box (6 bolts
and 1 screw).
Remove rear carrier (4 bolts).
Remove battery cover (2 screws).
Remove battery negative (-) post.
Remove battery positive (+) post.
Remove tail light connector.
Remove right and left body cover (2 bolts).
Disconnect the auto by-starter wire connector.
Disconnect A.C.G wire connectors.
Remove starter motor wire from relay.
Remove spark plug cap.
Remove fuel pipe, vacuum tube and throttle valve
wire from carburetor.
Loosen the screw of air cleaner duct strip, and
then remove the duct.

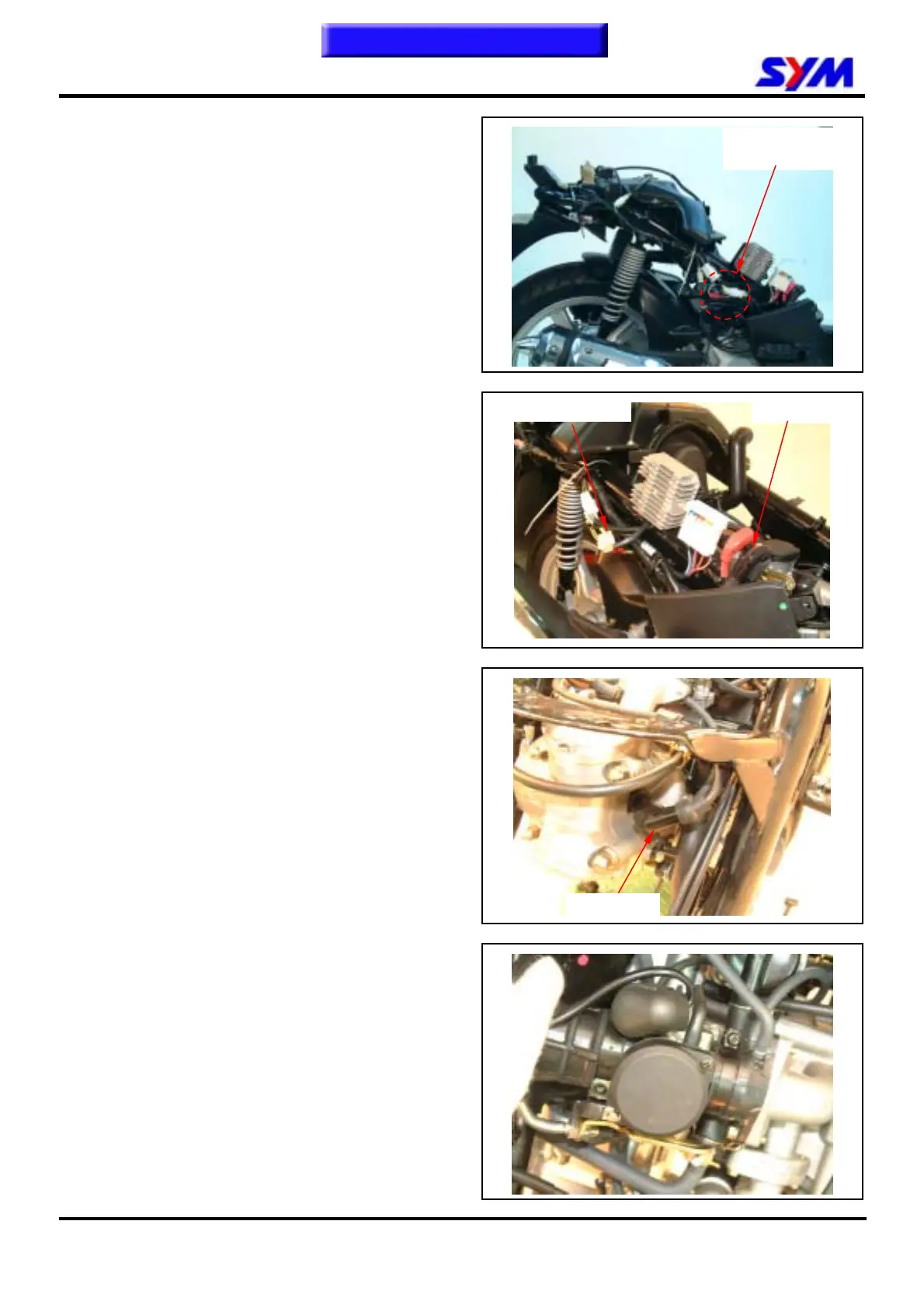

Starter relay
A.C.G wire coupler
Spark plug cap
Auto by-starter &
AC. G. coupler
