5. LUBRICATION SYSTEM
5-7

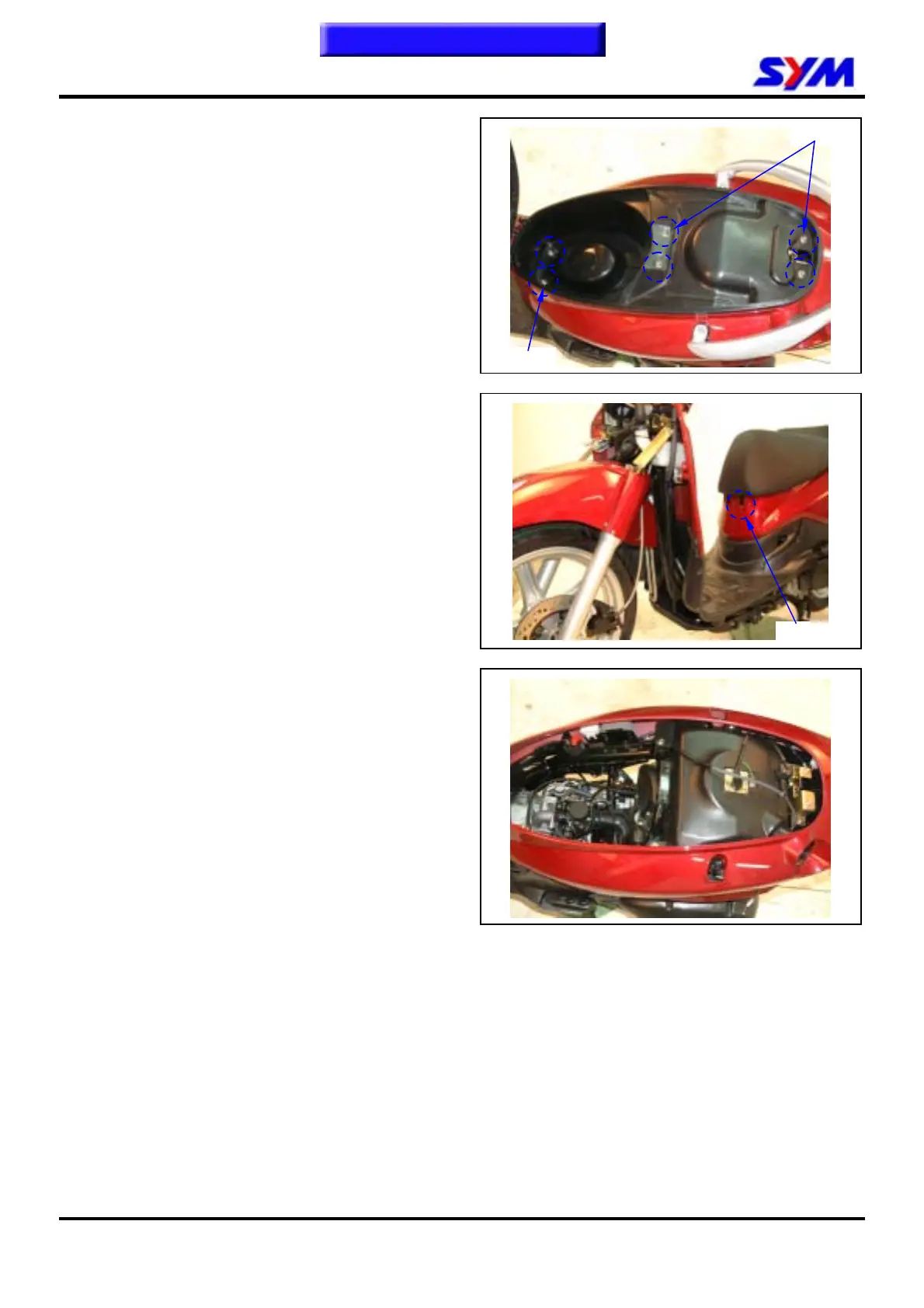

Gear Oil
Oil level inspection
Park the motorcycle on flat surface with main
stand.
Turn off engine and remove oil inspection bolt.
Gear lubrication oil quantity has to be measured
with measure device.
If oil level is too low, add gear oil. Recommended
using King series oil.
Install oil inspection bolt.
Gear Oil Change
Remove oil level inspection bolt.
Remove drain plug and drain oil out.
Install the drain plug after drained.
Torque value: 1.0~1.4kgf-m
Make sure that the drain plug washer can be
re-used.
Add oil to specified quantity from the inspection
hole.
Gear Oil Quantity: 120
CC
when replacing
Make sure that the bolt washer can be re-used,
and install the bolt.
Start engine and run engine for 2-3 minutes.
Turn off engine and make sure that oil level is in
correct level.
Make sure that no oil leaking.
Gear oil Ins
ection Bolt
Gear oil drain
lu
