7. ENGINE REMOVAL

7-3

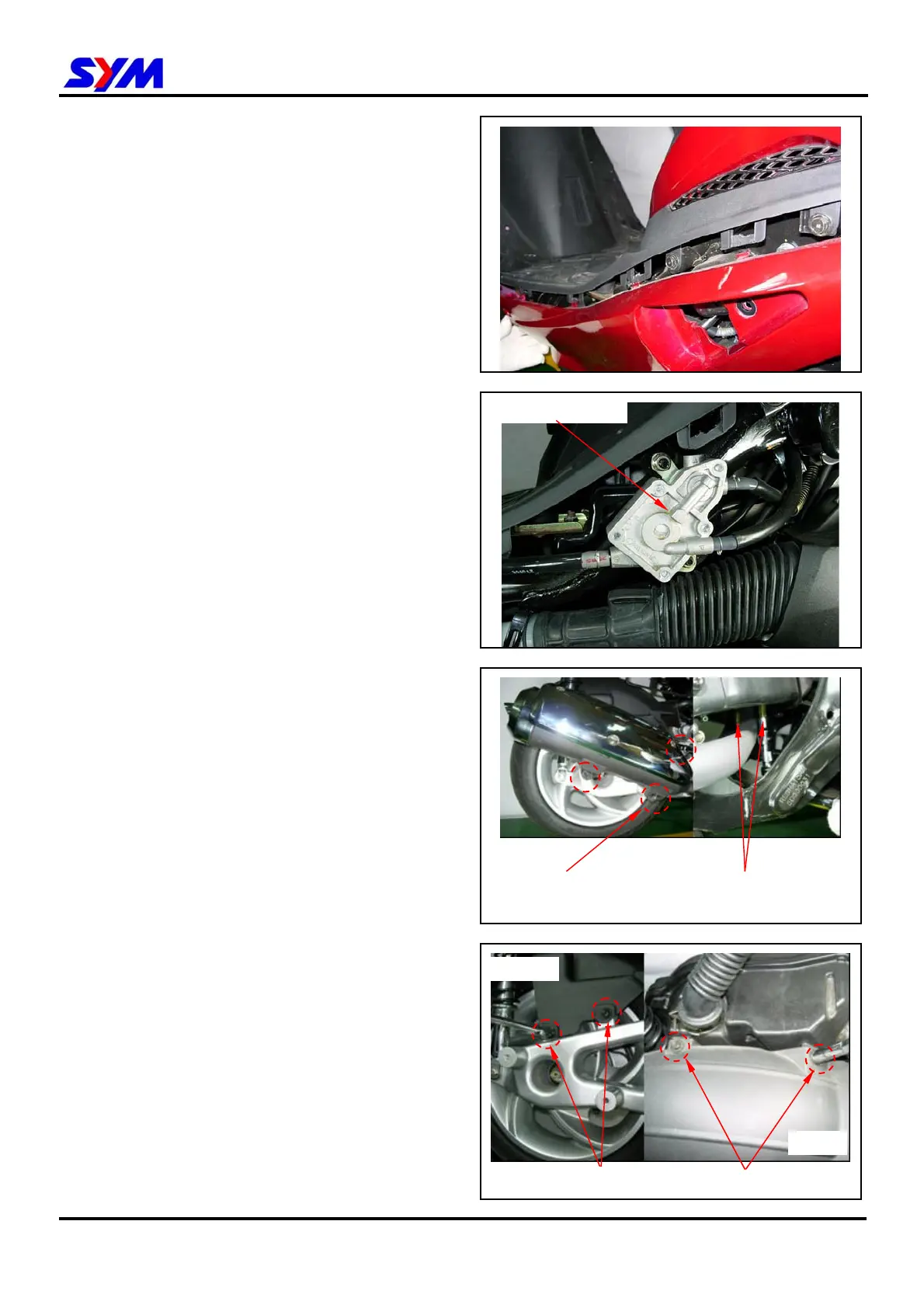

Remove right and left body cover.

Remove right and left pillion step ass'y

Remove the fuel pump.

Remove the muffler (3 bolts, 2 nuts).

Remove rear inner fender

2 Bolts

Right side

Fuel pump

3 bolts

2 nuts

Left side

2 Bolts
