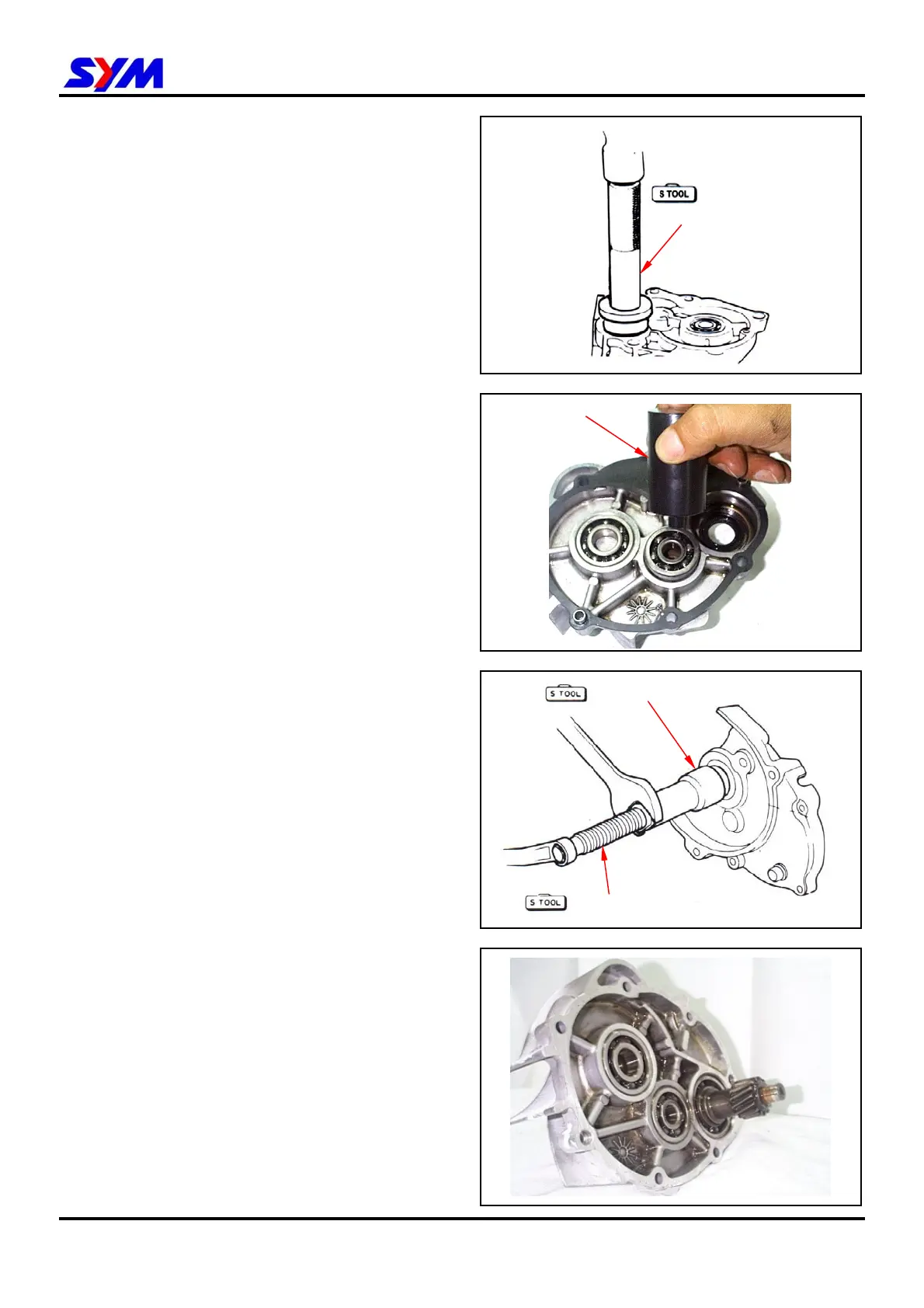

Sym VS150 User Manual

2. MAINTENANCE INFORMATION
2-1
Precautions in Operation······················ 2-1
Periodical Maintenance Schedule········ 2-2
Fuel Lines / Cable ·································· 2-3
Air Cleaner·············································· 2-4
Spark Plug·············································· 2-4
Valve Clearance ····································· 2-5
Carburetor Idle Speed Adjustment······· 2-6
Ignition System······································ 2-7
Cylinder Compression Pressure ·········· 2-7
Drive Belt················································ 2-8
Brake System (Front Disk Brake)········· 2-8
Brake Light Switch/Starting Inhibitor
Switch ················································· 2-10
Headlight Beam Distance ·················· 2-10
Clutch Disc Wear································ 2-10
Side Stand··········································· 2-11
Cushion··············································· 2-11
Nuts, Bolts Tightness ························ 2-11
Wheel/Tire··········································· 2-12
Steering Handle Top Bearing············ 2-12
Special Tools List······························· 2-13
Precautions in Operation
Specification
Fuel Tank Capacity 8000 c.c.
Capacity 1000 c.c.
Engine Oil
Change 800 c.c.
Capacity 110 c.c.
Transmission Gear oil
Change 100 c.c.
Engine + radiator 780 c.c.
Capacity of coolant
Reservoir upper 420 c.c.
Clearance of throttle valve 2~6 mm
Type NGK CR8E
Spark plug
Gap 0.8 mm
“F” Mark in idling speed BTDC 13º / 1000 rpm
Full timing advanced BTDC 27º / 6000 rpm
Idling speed 1600±100 rpm
Cylinder compression pressure 12.0 ±2 kgf/cm²
Valve clearance: IN/EX 0.12 ± 0.02 mm
Front 100/80-16 50P
Tire dimension
Rear 120/80-16 60P
Single Front: 1.75 kg/cm² rear : 2.25 kg/cm²
Tire pressure (cold)
Two persons Front: 1.75 kg/cm² rear : 2.50 kg/cm²
Battery 12V8Ah (MF battery) type: YTX9-BS
