13. CRANKCASE / CRANK
13-4

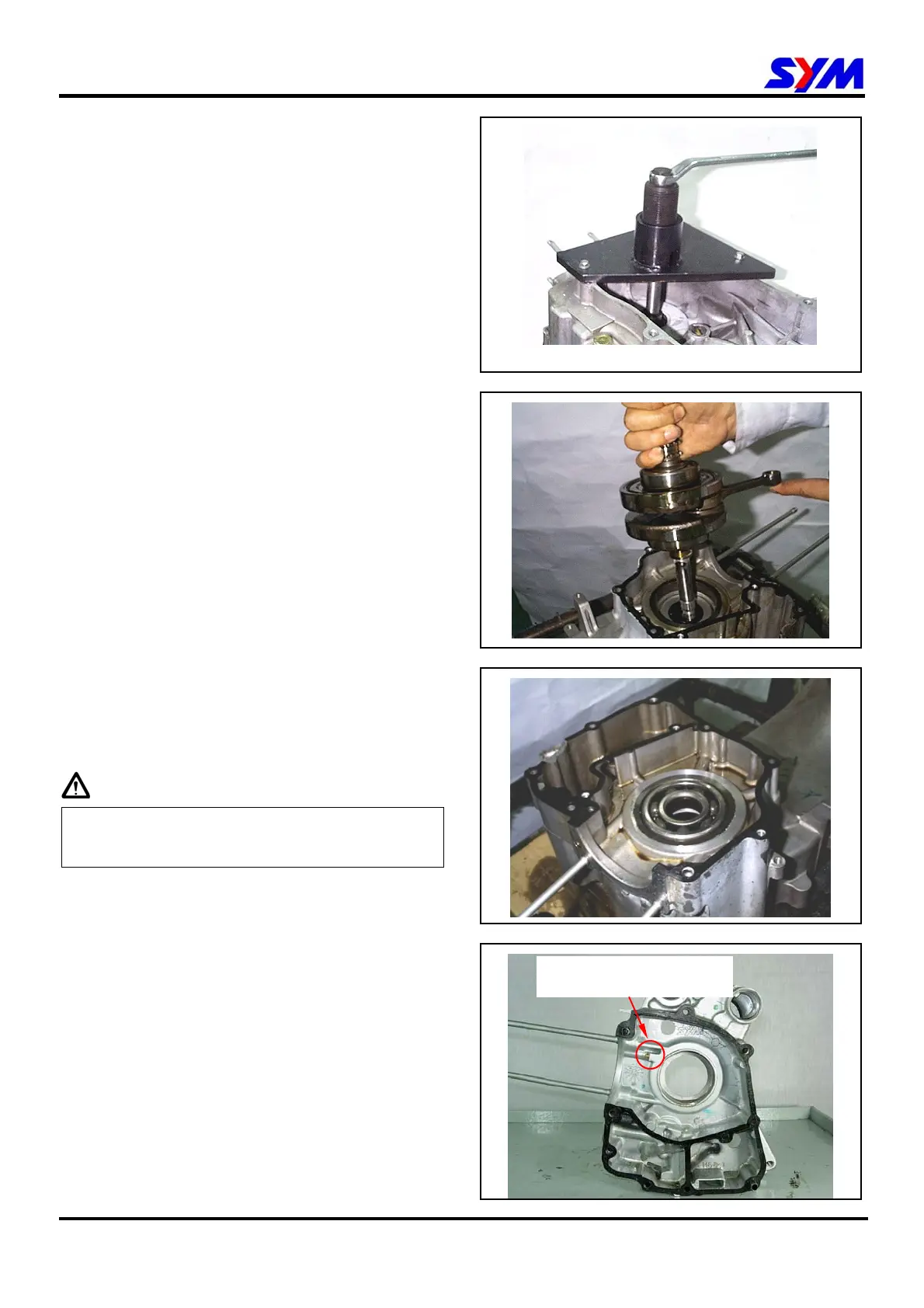

Remove crank by left crank shaft.
Refer to chapter 2: Special tools
Special tool:
R/L. crankcase disassemble/install tool
(SYM-1120000-H9A)
Remove crankshaft from right crankcase.
Remove gasket and dowel pins.
Scrape gasket residues off the crankcase contact
surface.
Caution
Do not damage contact surface of the gasket.
It is better to moisten the gasket residue for
easy scrapping.
Check oil line lubricate the cylinder.
Check any damage in oil seal and scrape gasket.
Replace with new one if damaged.
Oil line lubricate the cylinder
