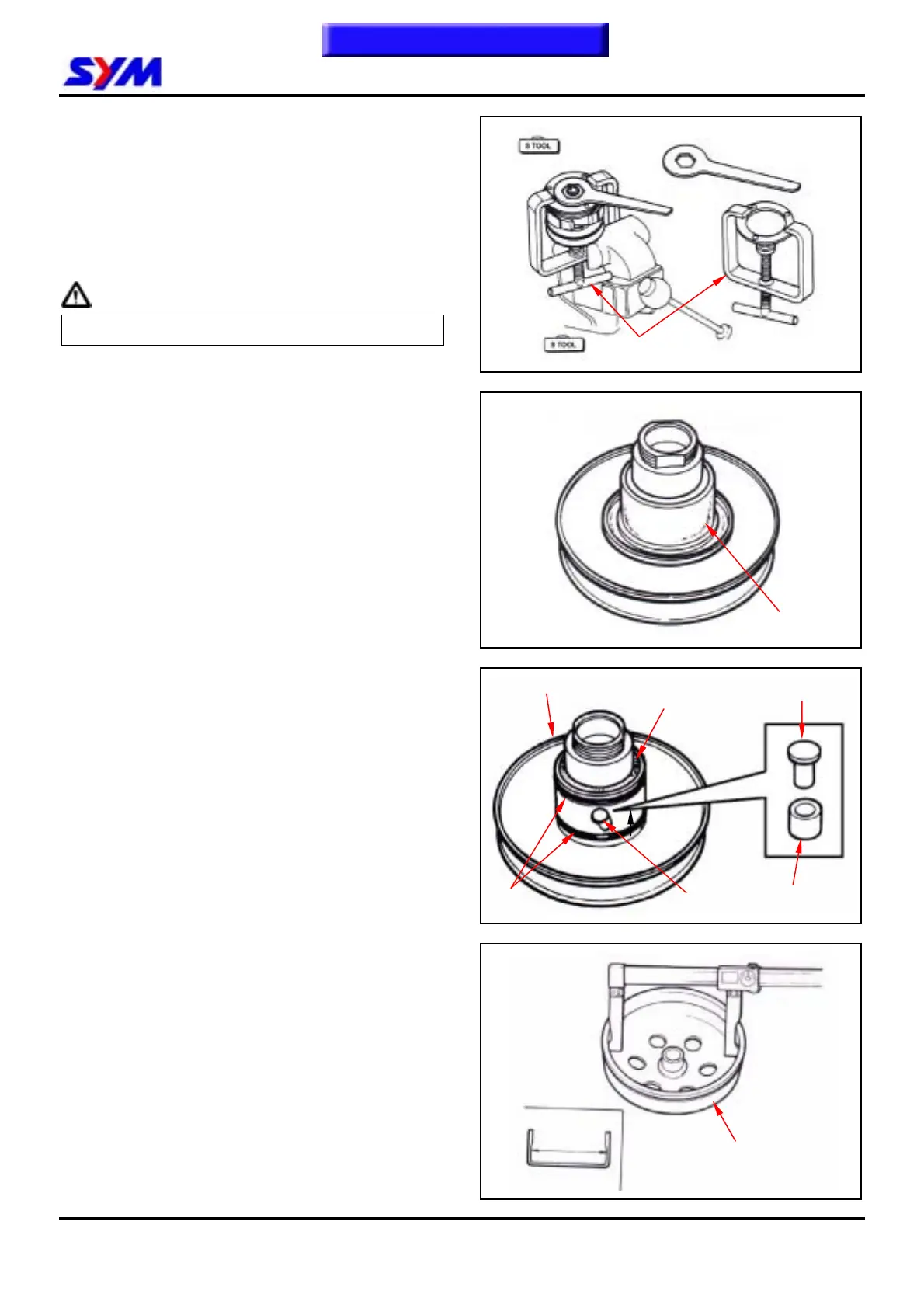

8. V-BELT DRIVING SYSTEM/KICK STARTER
8-9
Clutch Outer/Driven Pulley
Disassembly
Remove drive belt and clutch outer/driven pulley.
Install clutch spring compressor onto the pulley
assembly, and operate the compressor to let the
wrench be installed more easily.
Caution
Do not press the compressor too much.
Hold the clutch spring compressor onto bench vise,
and then remove mounting nut with special service
tool.
Release the clutch spring compressor and remove
clutch weight and spring from driven pulley.
Remove seal collar from driven pulley.
Remove guide pin, guide pin roller, and movable
driven face, and then remove O-ring & oil seal
seat from movable driven face.
Inspection
Clutch outer
Measure the inner diameter of clutch outer.
Replace the clutch outer if exceed service limit.
Service limit: 130.5 mm
Clutch outer
Inner
diameter
O-ring
Guide pin roller
Guide pin
Seal
Movable driven face
Collar
Clutch spring compressor
Clutch nut wrench
Guide pin
