SYSMEX SP-50 - Replacing the Ink Ribbon

As Required Maintenance – Quick Guide: Maintenance
Sysmex House, Garamonde Drive, Wymbush, Milton Keynes, MK8 8DF, United Kingdom · Phone +44 333 320 3460 · Fax +44 1908 267 901
academy.training@sysmex.co.uk· www.sysmex.co.uk
39
Replacing Ink Ribbon
To replace the ink ribbon:

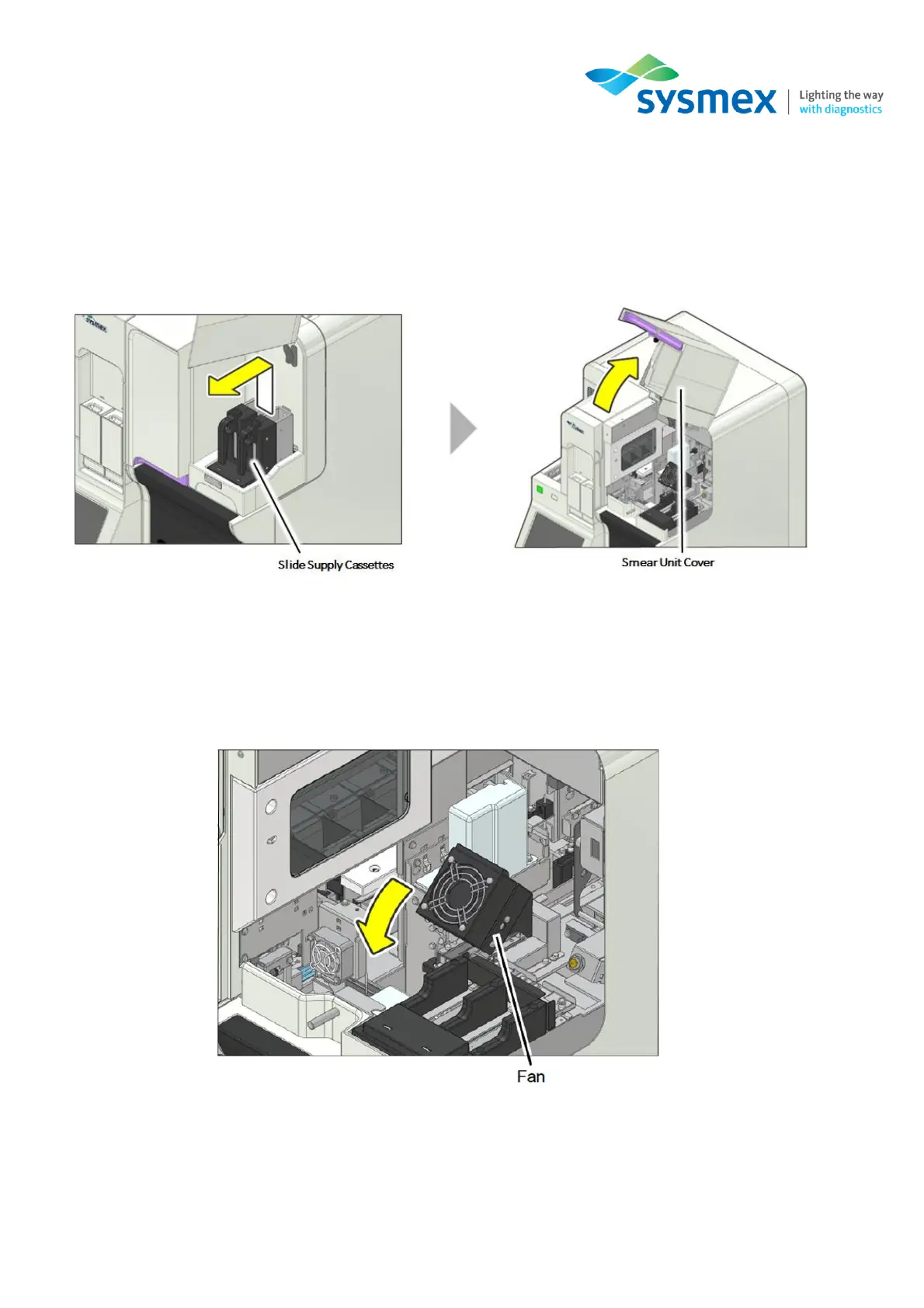

1. Open the slide unit cover and remove the slide supply cassettes. This will enable you to open
the smear unit cover.
IMPORTANT: Be sure to open the all covers until they are locked in place.
2. Rotate the drying fan forward to gain access to the ink ribbon.
