SYSMEX SP-50 - Page 40

As Required Maintenance – Quick Guide: Maintenance
Sysmex House, Garamonde Drive, Wymbush, Milton Keynes, MK8 8DF, United Kingdom · Phone +44 333 320 3460 · Fax +44 1908 267 901
academy.training@sysmex.co.uk· www.sysmex.co.uk
40

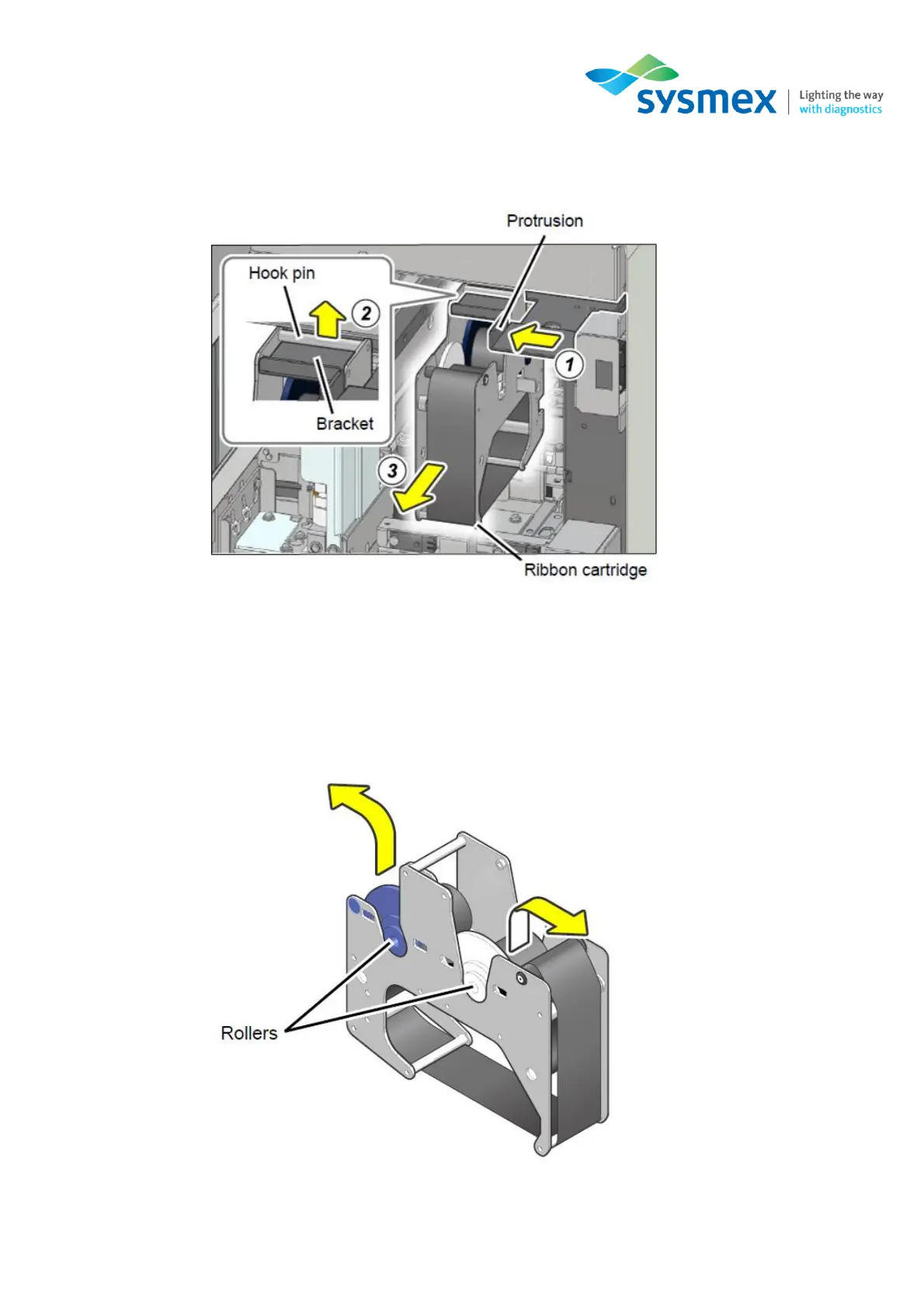

3. Remove the ink ribbon cartridge from the bracket as shown in the diagram below:
(1) Pull the protrusion slide the bracket to the left to move the ribbon to the removal position.
(2) Lift the ribbon and remove the hook pin from the bracket.
(3) Remove the ribbon cartridge.
4. Remove the ink ribbon by lifting both rollers out from the ribbon cartridge.
