RSA-G2 Getting Started Guide Page 22
NOTE: Geometry baffles prevent heat from entering the transducer and motor areas. For optimum perfor-
mance when running the FCO above 250°C, place the upper and lower geometry baffles outside the outer
top and bottom covers of the oven, as shown below. Refer to TRIOS Help for additional information.

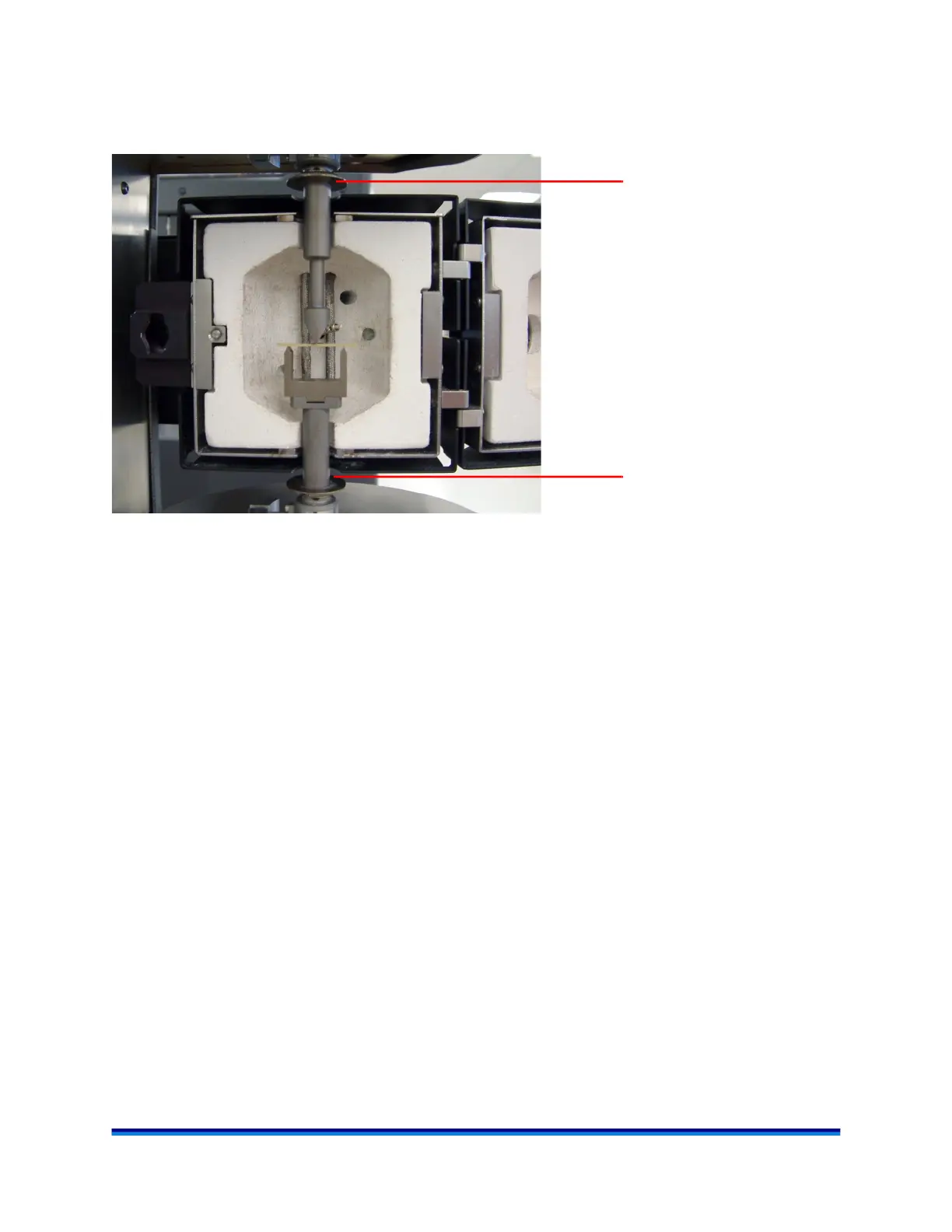

Figure 10 RSA-G2 geometry baffles positioned properly above and below FCO, with sample loaded.
CAUTION: Make sure the purge air is flowing when the oven is on. Failure to do so could cause
damage to components inside the oven. The purge line connects to the back of the RSA-G2, to the
port labeled OVEN PURGE.
MISE EN GARDE: Assurez-vous que l'air de drainage circule lorsque le four est en marche. Le non
respect de cette précaution pourrait provoquer des dégâts sur les composants du four. La conduite
de drainage se raccorde à l'arrière de l'RSA-G2, au port étiqueté DRAINAGE DU FOUR.
Upper geometry baffle
positioned above FCO
Lower geometry baffle
positioned below FCO
