Takeuchi TB153FR User Manual

137
MAINTENANCE
Every 500 Hours
Replacing the Fuel Filter
WARNING
¡¡
¡¡
¡ Do not smoke or permit open flames
while handling fuel or working on the
fuel system.
¡¡
¡¡
¡ Stop the engine in a well-ventilated
place and allow it to cool down before
performing maintenance.
¡¡
¡¡
¡ Clean up spilled fuel immediately.
1. Open the engine hood.

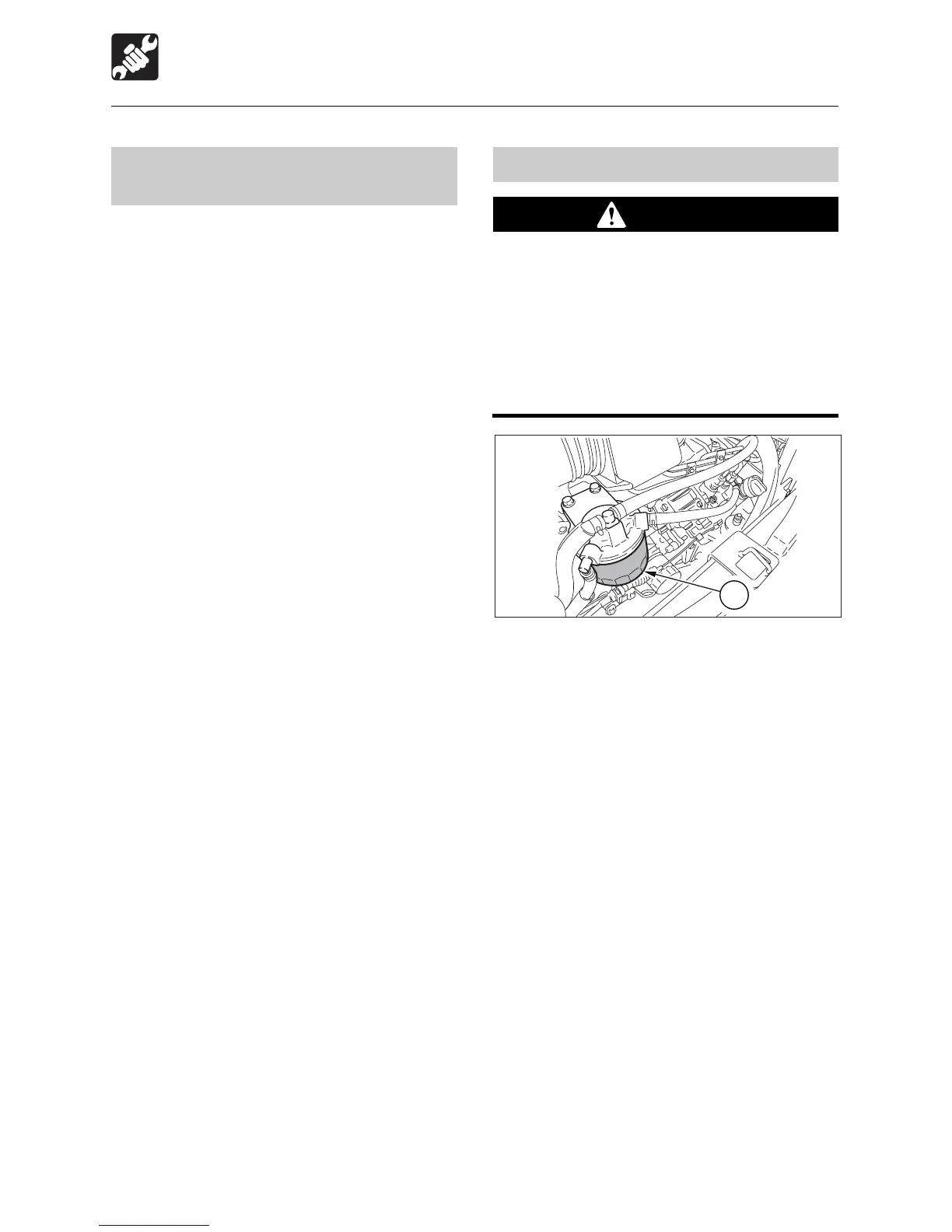

2. Using a filter wrench, turn the filter (1)
counterclockwise and remove it.
3. Clean the filter installation surface on the
filter stand.
4. Apply a thin layer of oil to the packing of
the new filter.
5. Install the new filter by hand.
6. Tighten 2/3 more turns with the filter
wrench after the filter packing comes in
contact with the surface of installation.
•Tightening torque : 20 to 24 N·m
(14.5 to 17.4 ft-lb)
7. Bleed the air.
Refer to page 168 “Bleeding the Air from
the Fuel System”.
Replacing the Hydraulic Oil
Return Filter
Refer to page 125 “Replacing the Hydraulic
Oil Return Filter”.
K3G003
1

Takeuchi TB153FR Specifications

General

Engine Make	Yanmar
Engine Model	4TNV88
Tail Swing Type	Zero Tail Swing
Maximum Reach	5, 570 mm
Max Reach Ground Level	5, 570 mm
Transport Width	2, 000 mm
Transport Height	2, 600 mm
