Takeuchi TB153FR User Manual

55
CONTROLS

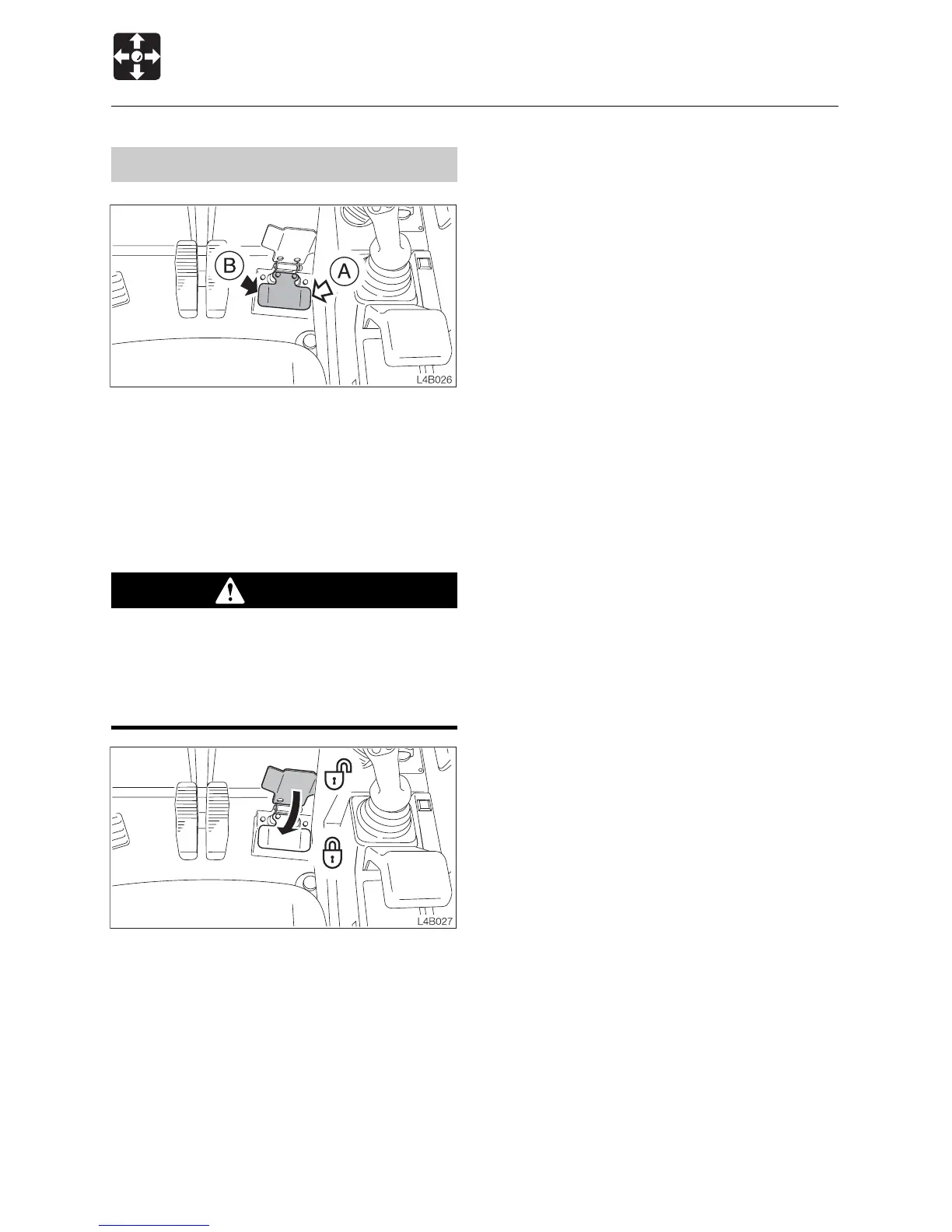

Offset Pedal
Use this pedal to operate the boom offset.
(A) .... Boom offset right
(B) .... Boom offset left
Refer to page 85 “Operating the Boom
Offset”.
Pedal Lock
WARNING
When not using the pedal, set the pedal
lock to the locked position. Stepping on
a pedal accidentally when it is not locked
may lead to unexpected accidents.
This device is for locking the offset pedal.
Set the pedal lock over the pedal to lock it.
Levers and Pedals

Takeuchi TB153FR Specifications

General

Engine Make	Yanmar
Engine Model	4TNV88
Tail Swing Type	Zero Tail Swing
Maximum Reach	5, 570 mm
Max Reach Ground Level	5, 570 mm
Transport Width	2, 000 mm
Transport Height	2, 600 mm
