Takeuchi TB153FR User Manual

202
OPTIONS

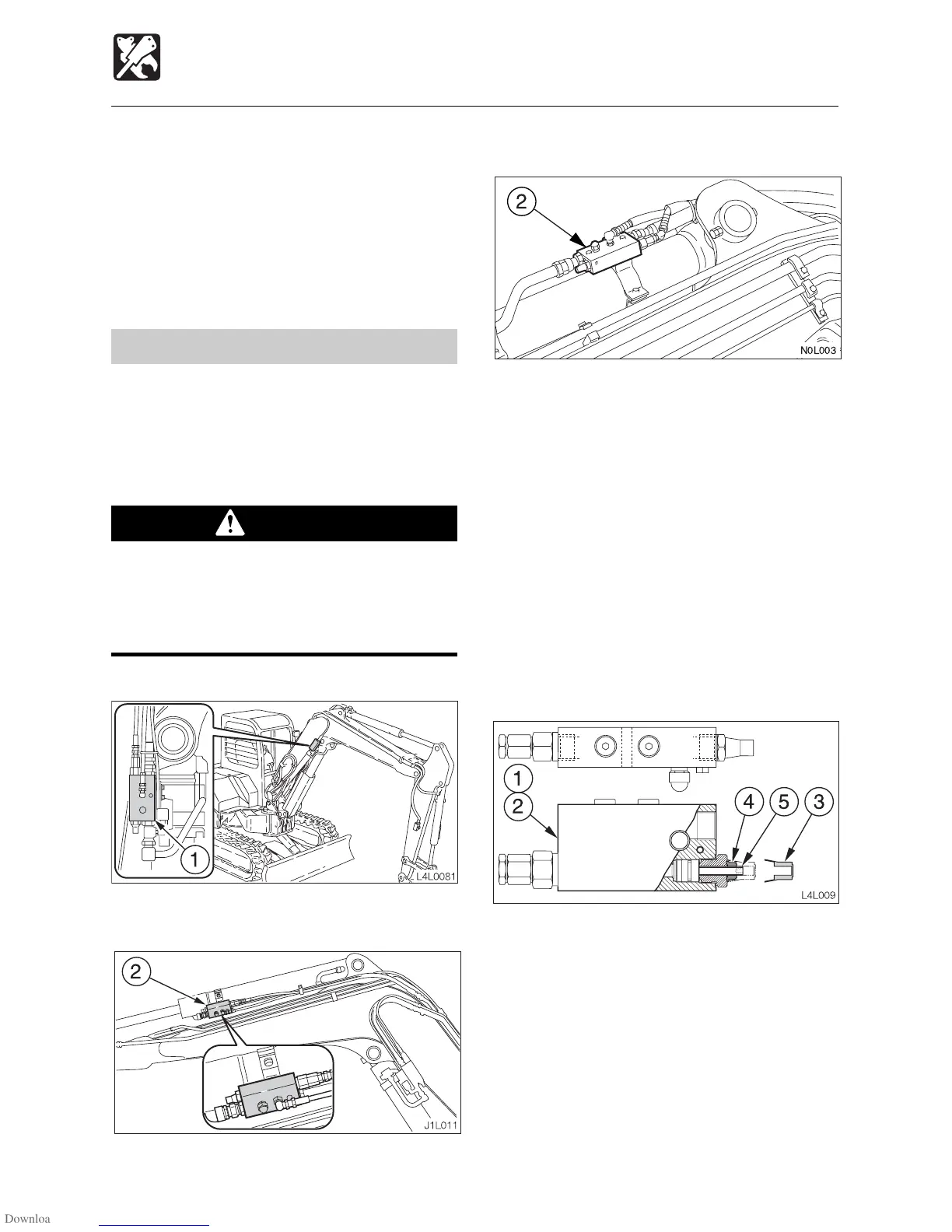

Load Safety Device
The load safety devices include an
emergency shut-off valve and an overload
warning device. The emergency shut-off
valve stops the boom or arm part way
through a fall. The overload warning device
sounds an alarm when an excessive load is
applied.
Emergency Shut-off Valve
When the hose of the boom or arm cylinders
are ruptured and the boom or arm falls, the
emergency shut-off valve is activated and
stops the boom or arm part way through the
fall.
WARNING
If the boom or arm drops and the
emergency shut-off valves are activated,
immediately move away from the
suspended object.
Boom
Arm
< TB153FR >
< TB180FR >
If the emergency shut-off valves (1) or (2)
are activated, immediately set the operating
lever to the neutral position. Do not move
the operating lever to the boom or arm
lowering side. Contact a Takeuchi dealer for
maintenance.
If the engine can be started, the boom or
arm can be lowered with the operating lever.
Check for safety, then slowly lower the boom
or arm.
If the engine cannot be started, the boom or
arm can be lowered using the procedure
described below.
1. Check for safety in the working area and
for stability of the machine and lifted load.
2. Remove the cap (3).
3. Loosen the lock nut (4).
4. Tighten the stem (5) to lower the boom or
arm.
5. Check for stability of the hoe attachment
and load.
6. Loosen the stem (5) secure it with the lock
nut (4).
N0L003
2
