Takeuchi TB153FR User Manual

200
OPTIONS
Hydraulic Breaker
For handling of the breaker, read the
hydraulic breaker’s manual, provided
separately.
IMPORTANT: When mounting devices,
select devices suited for this machine.
For advice on selecting device, contact a
Takeuchi sales or service outlet.

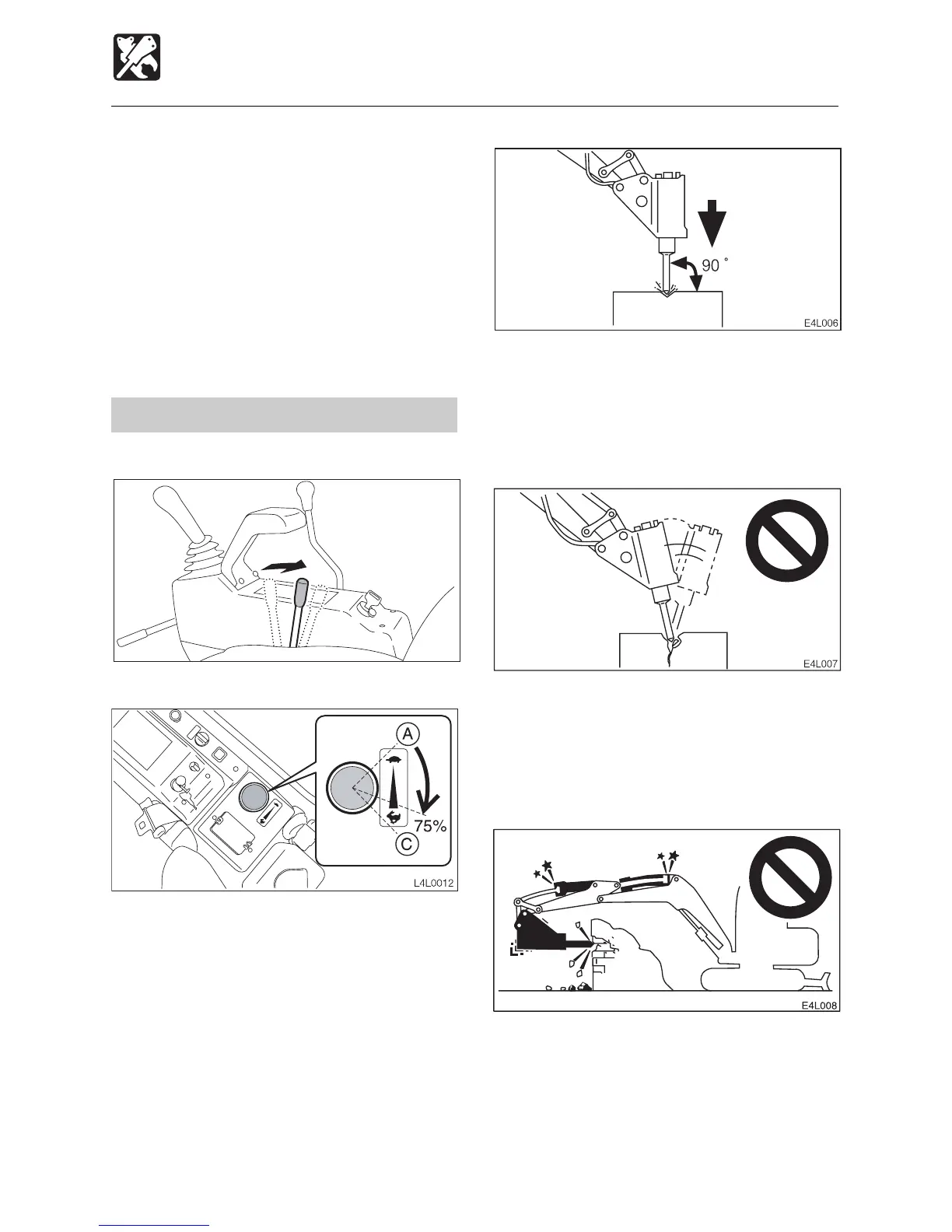

Precautions on Operating
< TB153FR >
< TB180FR >
¡ Run the engine with 75% the maximum
speed.
¡ Pound with the chisel perpendicular to the
surface you are pounding.
¡ When pounding, press the chisel properly
against the object to be broken so as to
avoid pounding the air.
¡ Do not pry with the chisel, and do not pry
while pounding.
¡ Do not move the chisel while pounding.
¡ Do not pound continuously for over 30
seconds on the same surface.
¡ Do not pound with the cylinder fully
extended or contracted (at the stroke end).
Leave a margin of at least 5 cm.
Pressing force
D5L005

Takeuchi TB153FR Specifications

General

Engine Make	Yanmar
Engine Model	4TNV88
Tail Swing Type	Zero Tail Swing
Maximum Reach	5, 570 mm
Max Reach Ground Level	5, 570 mm
Transport Width	2, 000 mm
Transport Height	2, 600 mm
