Takeuchi TB153FR User Manual

166
TROUBLESHOOTING
If a light does not turn on or the electric
system does not operate, a fuse may be
blown. Inspect the fuses.

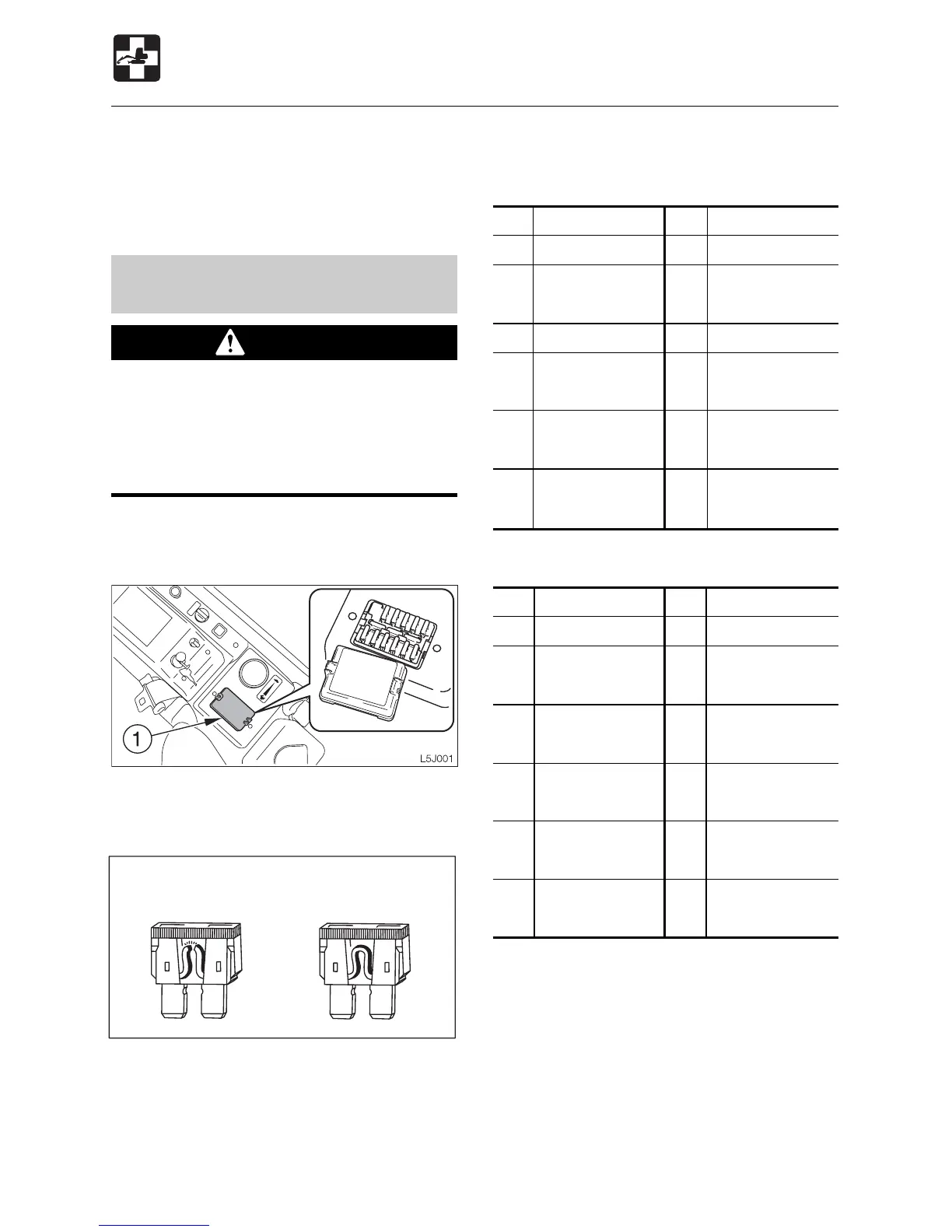

Inspecting and Replacing the
Fuse
WARNING
If the fuse blows as soon as it is replaced,
there is a problem with the electric
system. Continued use may lead to fire.
Consult a Takeuchi sales or service
outlet.
1. Turn the starter key to the OFF position
and stop the engine.
2. Open the fuse box cover (1).
3. Inspect for any blown fuses.
4. If a fuse is blown, replace it with a spare
fuse of the same capacity.
If a Fuse Blows
Fuse Layout and Circuits Protected
E4J007
NormalBlown
< TB153FR >
20A Horn
10A Radio,
Interior light
10A Lever lock
5A Lights
30A Wiper,
Cigarette lighter
10A Optional
10A Throttle controller
30A Emergency stop
relay
5A Controller (ACC),
Accessory relay
5A Instrument cluster
5A Interference
prevention
Capacity Protected circuit Capacity Protected circuit
< TB180FR >
20A Horn
10A Radio,
Interior light
10A Lever lock
30A Lights
30A Wiper,
Cigarette lighter
10A Optional
10A Controller
30A Stop solenoid
5A Controller (ACC),
Accessory relay
5A Instrument cluster
Feed pump
5A Interference
prevention
Capacity Protected circuit Capacity Protected circuit

Takeuchi TB153FR Specifications

General

Engine Make	Yanmar
Engine Model	4TNV88
Tail Swing Type	Zero Tail Swing
Maximum Reach	5, 570 mm
Max Reach Ground Level	5, 570 mm
Transport Width	2, 000 mm
Transport Height	2, 600 mm
