CONTROLS

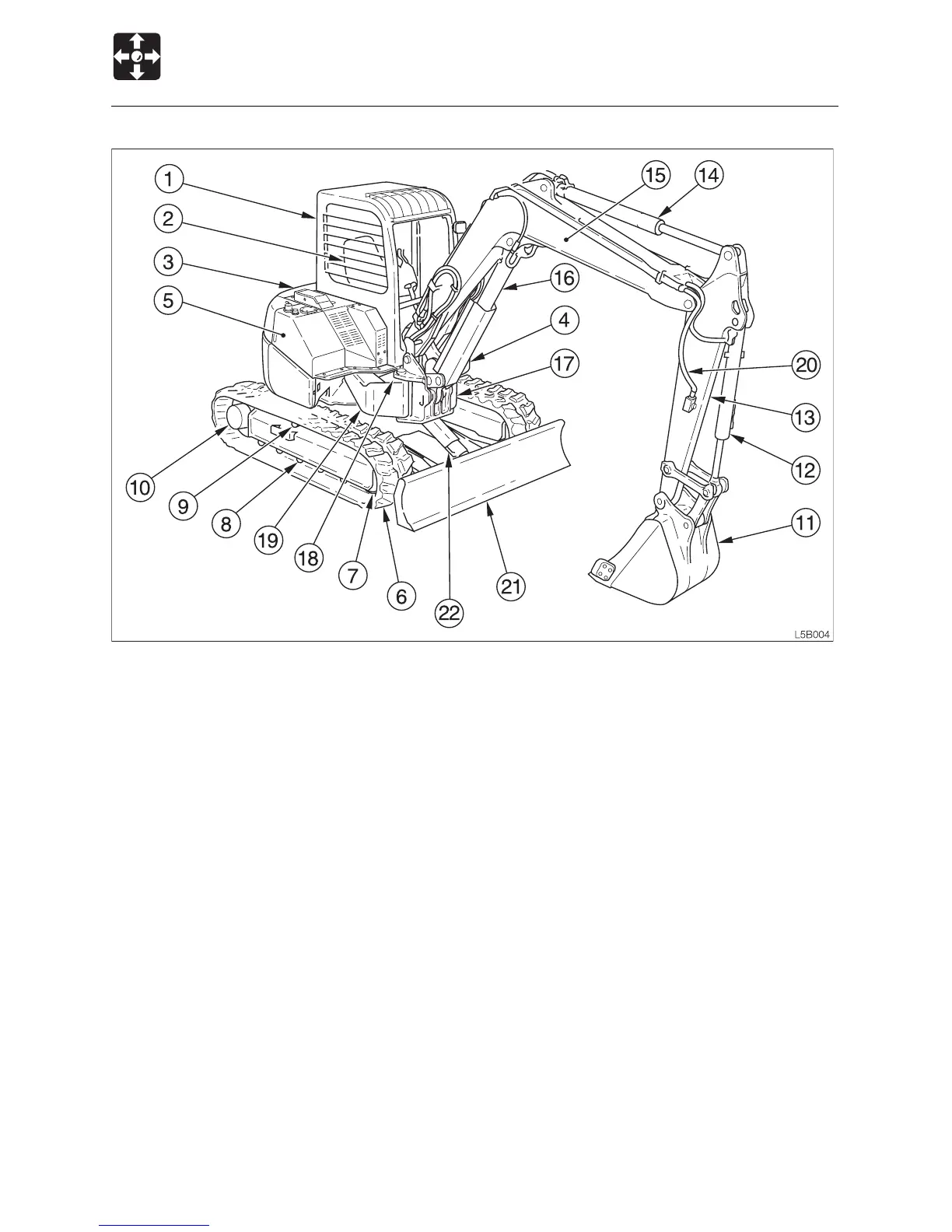

Names of Components
Upperstructure
1. Cab
2. Seat
3. Engine hood
4. Fuel tank
5. Hydraulic tank
Undercarriage
6. Crawler belt
7. Idler
8. Track roller
9. Carrier roller
10. Travel motor
Working equipment
11. Bucket
12. Bucket cylinder
13. Arm
14. Arm cylinder
15. Boom
16. Boom cylinder
17. Boom bracket
18. Offset cylinder
19. Right link arm
20. Auxiliary hydraulic lines
21. Dozer blade
22. Blade cylinder

Takeuchi TB153FR Specifications

General

Engine Make	Yanmar
Engine Model	4TNV88
Tail Swing Type	Zero Tail Swing
Maximum Reach	5, 570 mm
Max Reach Ground Level	5, 570 mm
Transport Width	2, 000 mm
Transport Height	2, 600 mm
