Takeuchi TB153FR User Manual

84

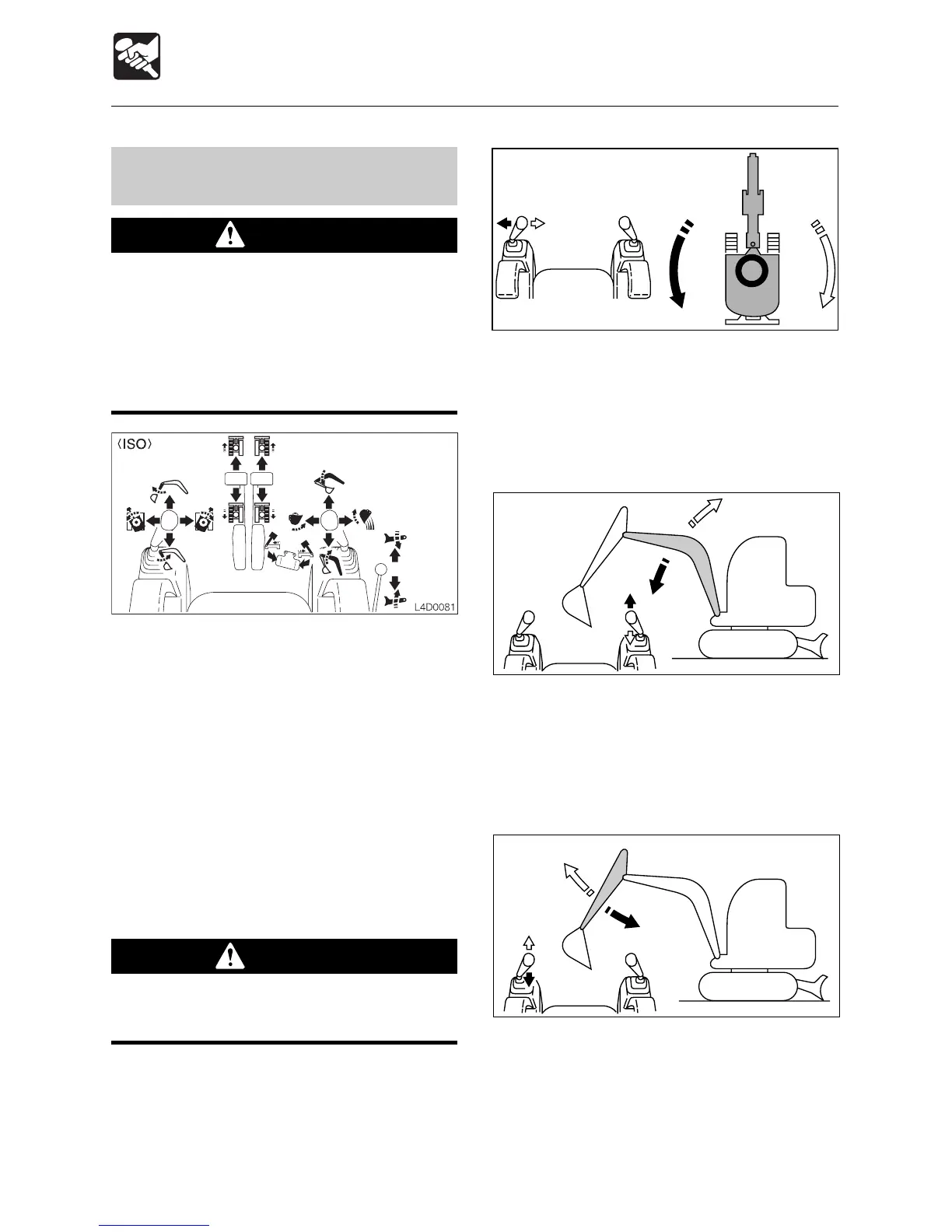

OPERATION
Machine Operation
Operating the Working
Equipment
WARNING
¡¡
¡¡
¡Be careful to check which pattern of
lever control arrangement you are
operating with before beginning
operations.
¡¡
¡¡
¡The explanations in this manual are for
the ISO pattern.
Use the right operating lever to operate the
boom and bucket.
Use the left operating lever to operate the
arm and for slewing.
Return the operating levers to the neutral
position to stop the hoe attachments.
1. Fully lower the safety lock lever to
disengage the lock.
2. Raise the pedal lock to disengage the lock.
Slewing
WARNING
Check the surrounding area for safety
before slewing.
aTo slew left :
Tilt the left operating lever to the left.
eTo slew right :
Tilt the left operating lever to the right.
Operating the Boom
aTo lower the boom :
Tilt the right operating lever forward.
eTo raise the boom :
Tilt the right operating lever backward.
Operating the Arm
aTo contract the arm :
Tilt the left operating lever backward.
eTo extend the arm :
Tilt the left operating lever forward.
E4D021
E4D022
E4D023

Takeuchi TB153FR Specifications

General

Engine Make	Yanmar
Engine Model	4TNV88
Tail Swing Type	Zero Tail Swing
Maximum Reach	5, 570 mm
Max Reach Ground Level	5, 570 mm
Transport Width	2, 000 mm
Transport Height	2, 600 mm
