Takeuchi TB153FR User Manual

85
OPERATION
Machine Operation

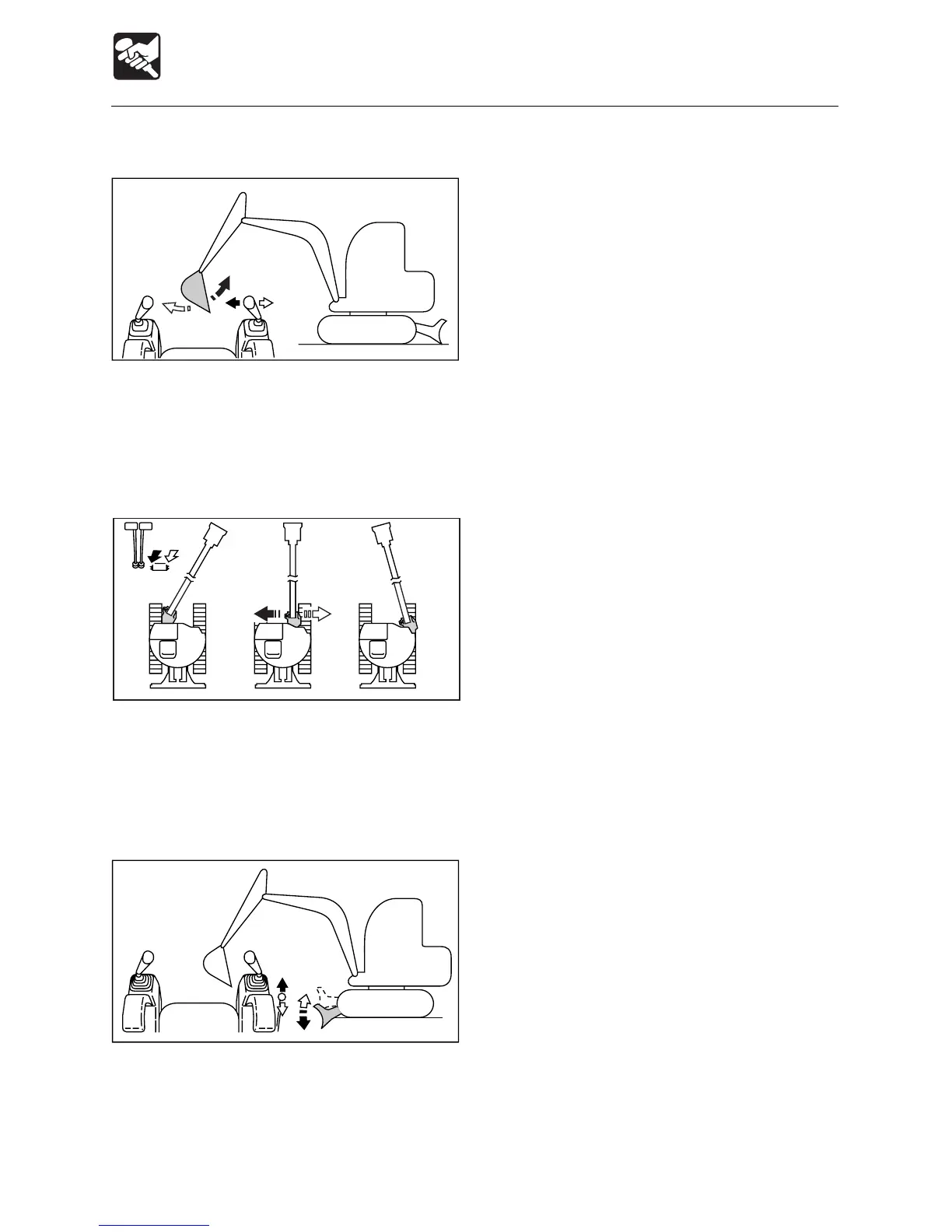

Operating the Bucket
aTo dig :
Tilt the right operating lever to the left.
eTo dump :
Tilt the right operating lever to the right.
Operating the Boom Offset
aTo offset left :
Press the left side of the pedal.
eTo offset right :
Press the right side of the pedal.
Operating the Dozer Blade
aTo lower the dozer blade :
Tilt the lever forward.
eTo raise the dozer blade :
Tilt the lever backward.
E4D026
E4D024
L2D0061

Takeuchi TB153FR Specifications

General

Engine Make	Yanmar
Engine Model	4TNV88
Tail Swing Type	Zero Tail Swing
Maximum Reach	5, 570 mm
Max Reach Ground Level	5, 570 mm
Transport Width	2, 000 mm
Transport Height	2, 600 mm
