CONTROLS
Accessories
Heater (Cab)
WARNING
¡¡
¡¡
¡Always be sure to allow sufficient
ventilation.
¡¡
¡¡
¡Do not place combustible or explosive
objects near the air outlets.

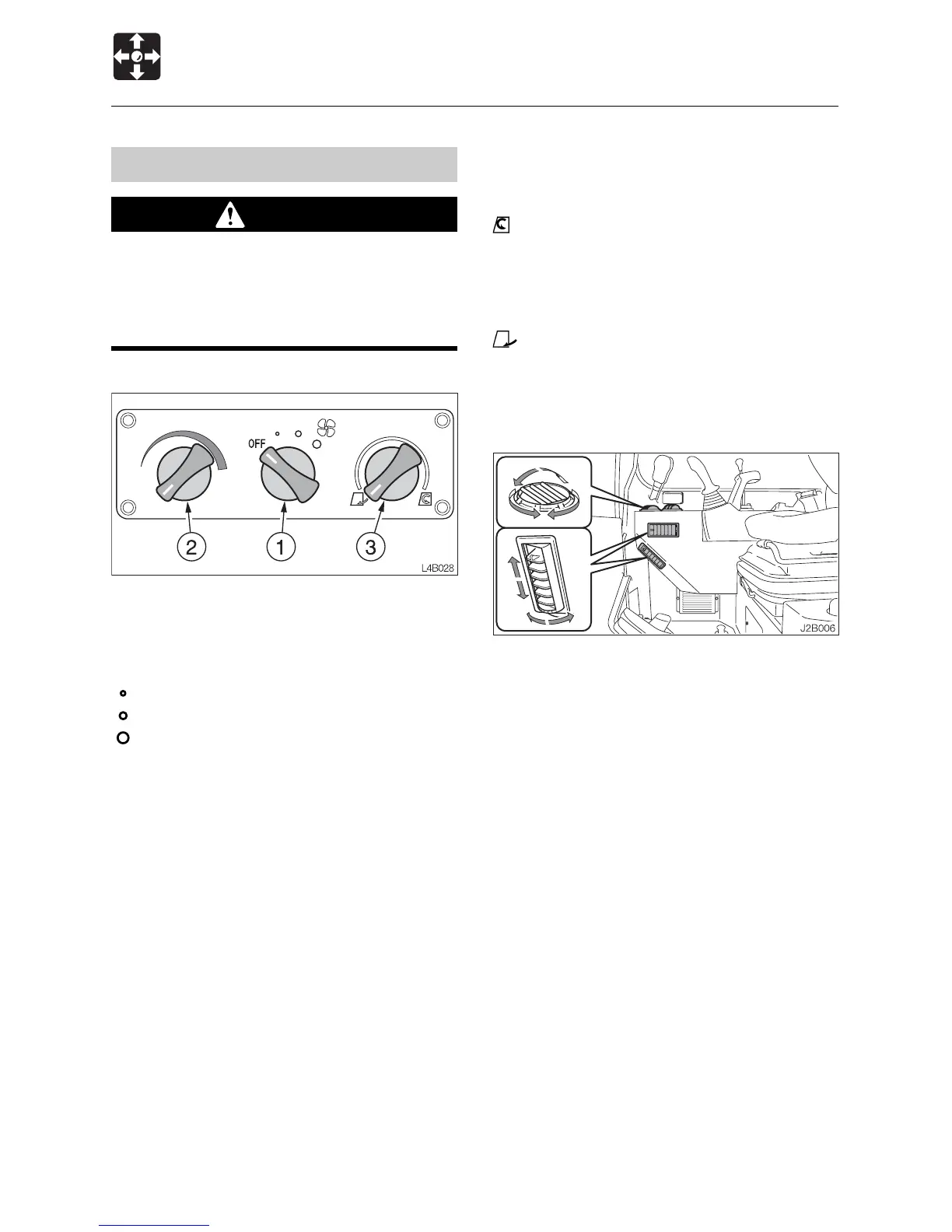

Control panel
Fan Switch (1)
Use this switch to adjust the fan speed in
three steps.
OFF ........ Fan off
............ Low
............ Medium
............ High
Temperature Control Dial (2)
Use this dial to adjust the air temperature.
Counterclockwise
.......................... To lower the temperature
Clockwise ..... To increase the temperature
Supplement: No warm air is emitted if the
temperature of the engine coolant is low.
Airflow mode control dial (3)
Use this dial to select recirculation or fresh
air intake.
............... Recirculation
• To cool or heat the cab quickly
• When external air is dirty
CENTER.... 50% fresh air intake
• To ventilate while heating the cab slowly
............. Fresh air intake
• To remove fog from the windows
• To ventilate while heating the cab
Outlets
Move the louvers up and down or left and
right to adjust the air flow direction and
amount.
Supplement: Use the heater with care in
warm seasons. Coolant circulates in the
heater even when the heater switch is turned
off.
When the heater is no longer needed, stop
coolant circulation as follows :
IMPORTANT: Use the valve (1) either fully
open or fully closed.
Cooling water could leak when the valve
is set at a halfway position.
