Takeuchi TB153FR User Manual

47
CONTROLS
C4B013
C4B014
G4B011

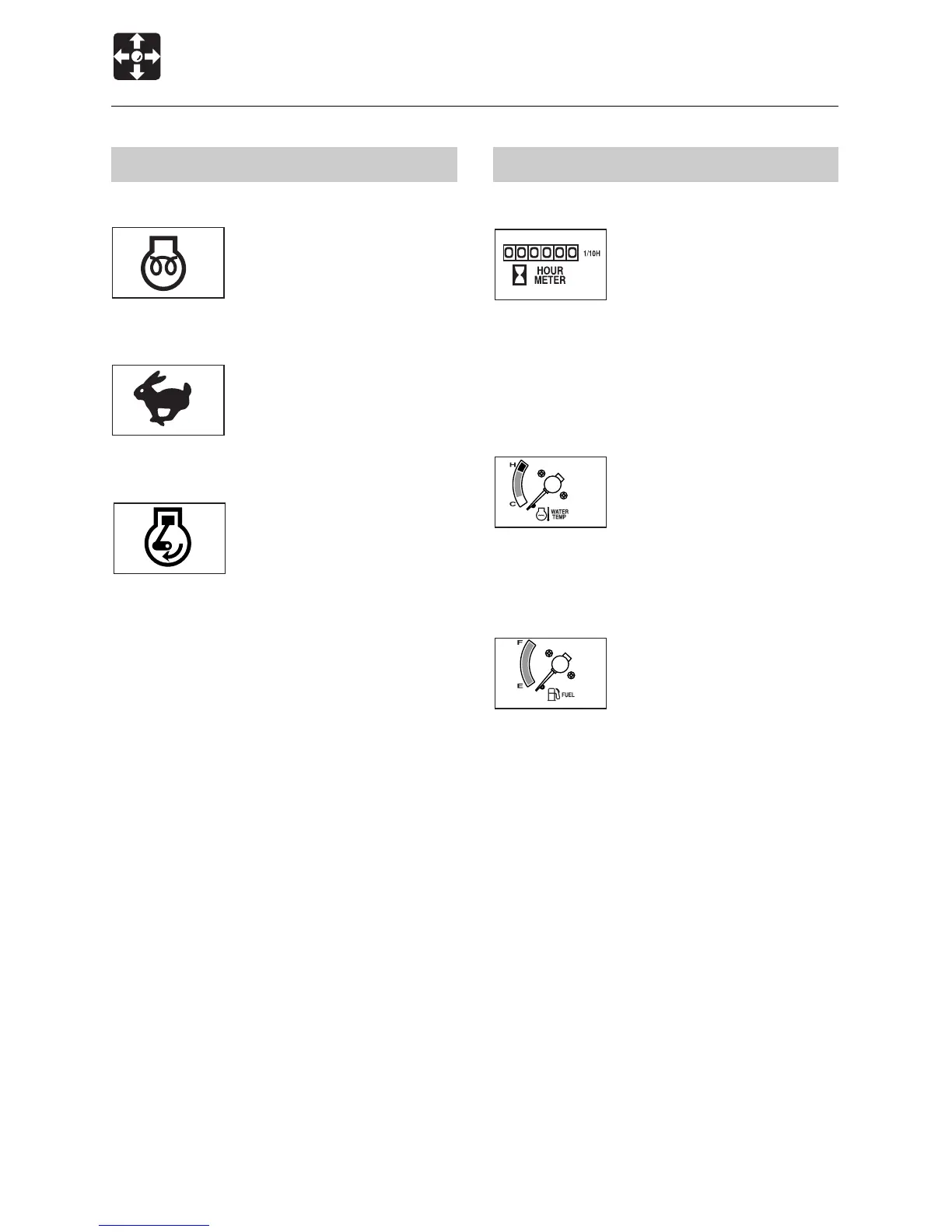

Indicators
6. Glow Lamp
This lamp turns off when
engine preheating is
completed.
7. Travel Speed Lamp
This lamp lights when the
travel speed is set to 2nd
(high speed).
8. Decel. Lamp
This lamp lights when decel.
switch pressed, the engine
speed decreases.
Instrument Cluster
Meters
9. Hour Meter
This displays the total
engine running time in
hours.
The rightmost digit indicates
tenths of hours (6 minutes).
Set the inspection and maintenance intervals
according to the time displayed on the hour
meter.
10. Water Temperature Gauge
This gauge indicates the
temperature of the engine
coolant water.
The needle should be within
the green range during machine operation.
The red range indicates overheating.
11. Fuel Gauge
This gauge indicates the
amount of fuel in the tank.
Be sure to top off the tank
before running out of fuel.
G4B012
G4B013
G4B014

Takeuchi TB153FR Specifications

General

Engine Make	Yanmar
Engine Model	4TNV88
Tail Swing Type	Zero Tail Swing
Maximum Reach	5, 570 mm
Max Reach Ground Level	5, 570 mm
Transport Width	2, 000 mm
Transport Height	2, 600 mm
