Takeuchi TB153FR User Manual

50

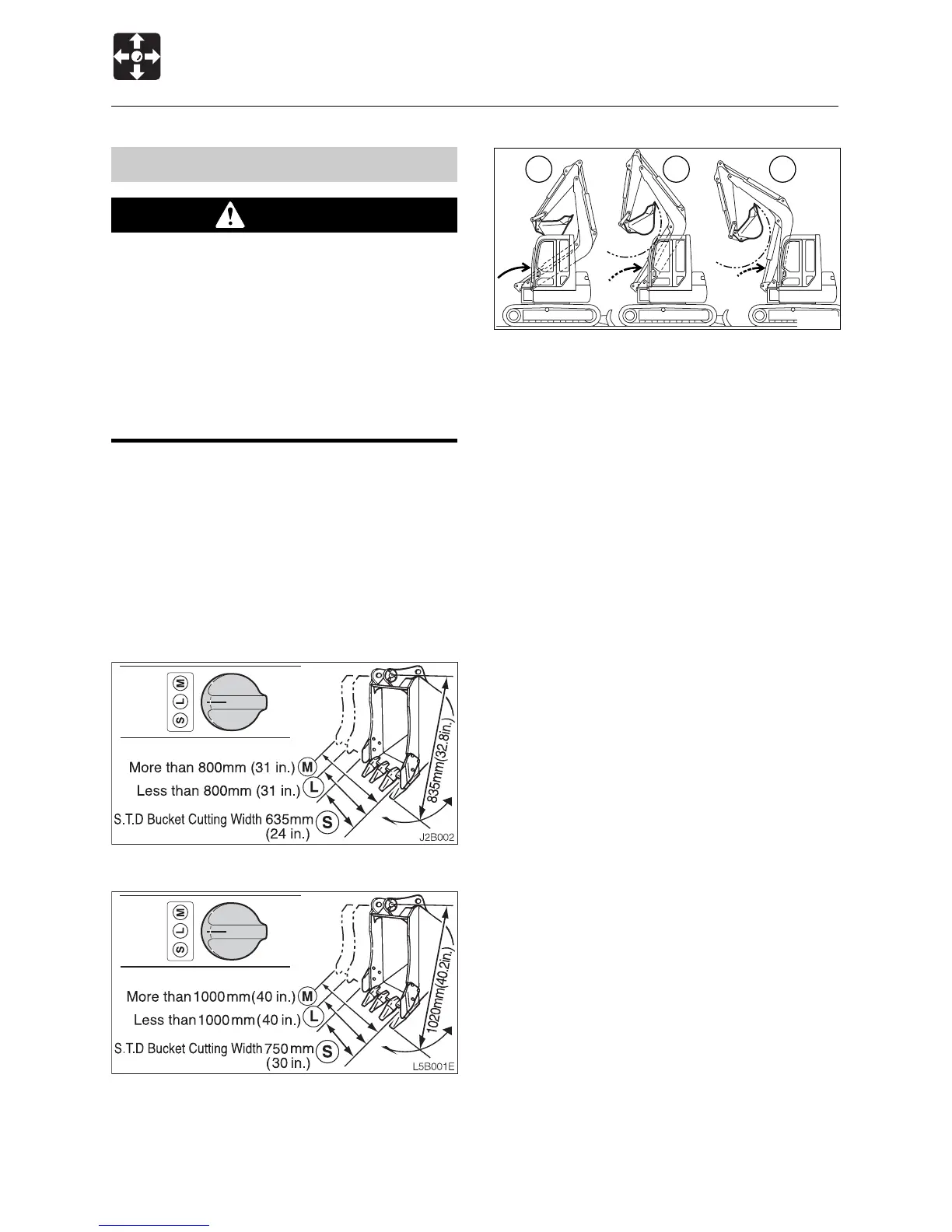

CONTROLS
Attachment Interference Switch
WARNING
¡¡
¡¡
¡Failure to properly set the Attachment
Interference Switch can result in
equipment damage, serious injury, or
death.
¡¡
¡¡
¡Ensure that all buckets used in the
standard position are no longer than a
standard bucket when measured from
pin to tooth.
The Attachment Interference Switch (AIS) is
automatically set to the M mode by the
interference Prevention System (IPS) when
the engine is started.
To use the minimal front radius feature, reset
the AIS to the M position then select the
appropriate attachment width (S.L or M).
< TB153FR >
< TB180FR >
Switches
M
S
J1B017
L
Modes of Operation
< TB153FR >
S....... Standard bucket attachment less
than 635mm (24 inches) wide
L ....... Bucket attachment more than
635mm (24 inches) and less than
800mm (31 inches) wide
M ...... Bucket attachment more than
800mm (31 inches) wide or any other
approved attachment
< TB180FR >
S....... Standard bucket attachment less
than 750mm (30 inches) wide
L ....... Bucket attachment more than
750mm (30 inches) and less than
1000mm (40 inches) wide
M ...... Bucket attachment more than
1000mm (40 inches) wide or any
other approved attachment
Refer to page 82 “Attachment Interference
Switch / Interference Prevention System”.

Takeuchi TB153FR Specifications

General

Engine Make	Yanmar
Engine Model	4TNV88
Tail Swing Type	Zero Tail Swing
Maximum Reach	5, 570 mm
Max Reach Ground Level	5, 570 mm
Transport Width	2, 000 mm
Transport Height	2, 600 mm
