Takeuchi TB153FR User Manual

51

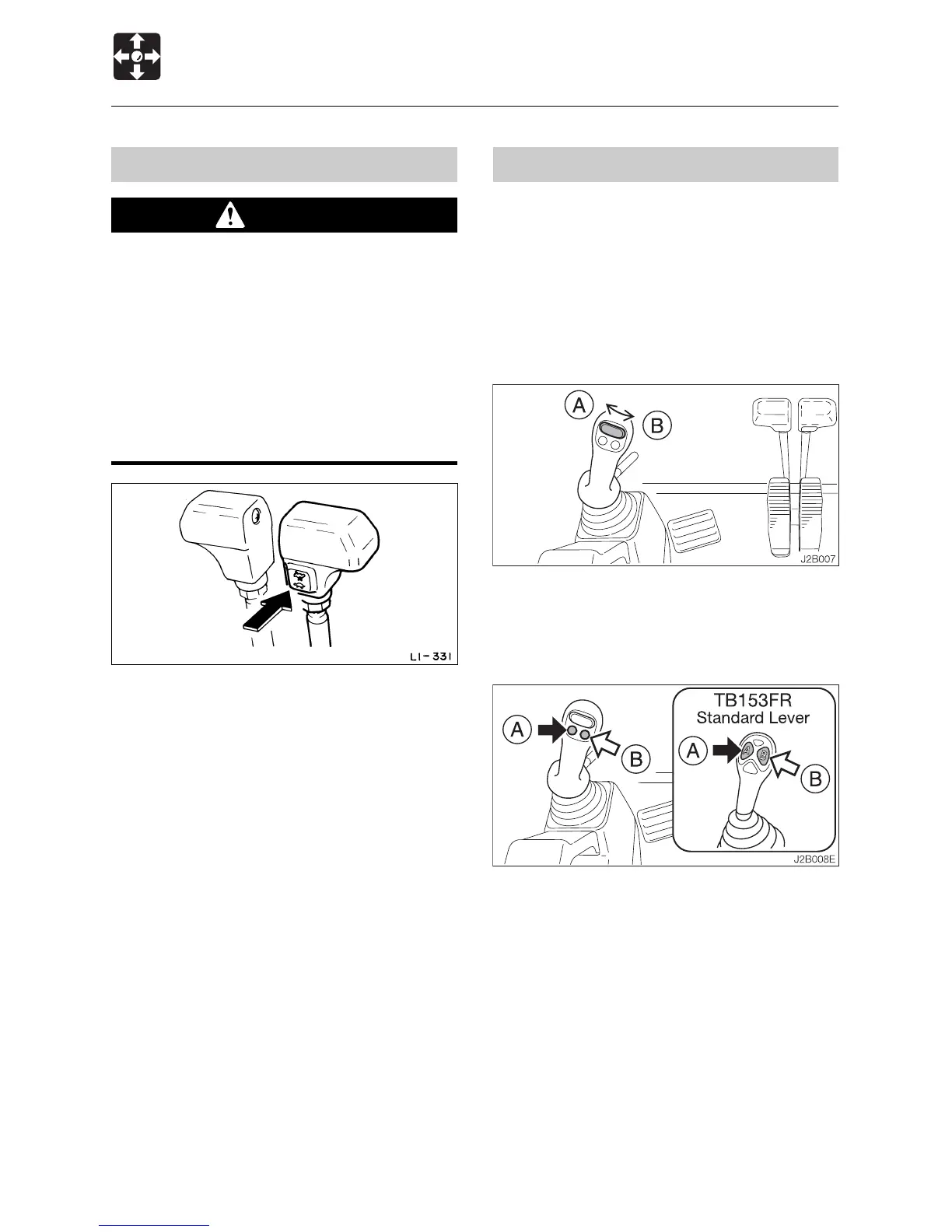

CONTROLS
Switches
First Auxiliary Hydraulic Switches
Slider Switch
(Proportional control)
Proportional control allows for slow-to-fast
movement of auxiliary functions.
Example: If you move the slider switch half
way, the auxiliary function will move at
approximately one-half speed.
Move this switch to control the flow of the oil
in the first auxiliary hydraulic lines.
Auxiliary Hydraulic Buttons
Press those buttons to control the flow of the
oil in the first auxiliary hydraulic lines.
¡Proportional control of the auxiliary
hydraulic circuit is not possible.
(A) .... Hydraulic oil flows to left auxiliary
line(a)
(B) .... Hydraulic oil flows to right auxiliary
line(b)
Travel Speed Switch
WARNING
When a load greater than a set value is
applied during 2nd speed (high speed)
travel, the speed will automatically slow
down by switching to 1st speed (low
speed). Thereafter, when the load
becomes lighter, the speed will increase
by returning to 2nd speed (high speed).
Exercise due caution since the travel
speed changes automatically.
Press this switch to set the travel speed to
2nd speed (high speed). Press again to
return to 1st speed (low speed).

Takeuchi TB153FR Specifications

General

Engine Make	Yanmar
Engine Model	4TNV88
Tail Swing Type	Zero Tail Swing
Maximum Reach	5, 570 mm
Max Reach Ground Level	5, 570 mm
Transport Width	2, 000 mm
Transport Height	2, 600 mm
