Takeuchi TB153FR User Manual

38

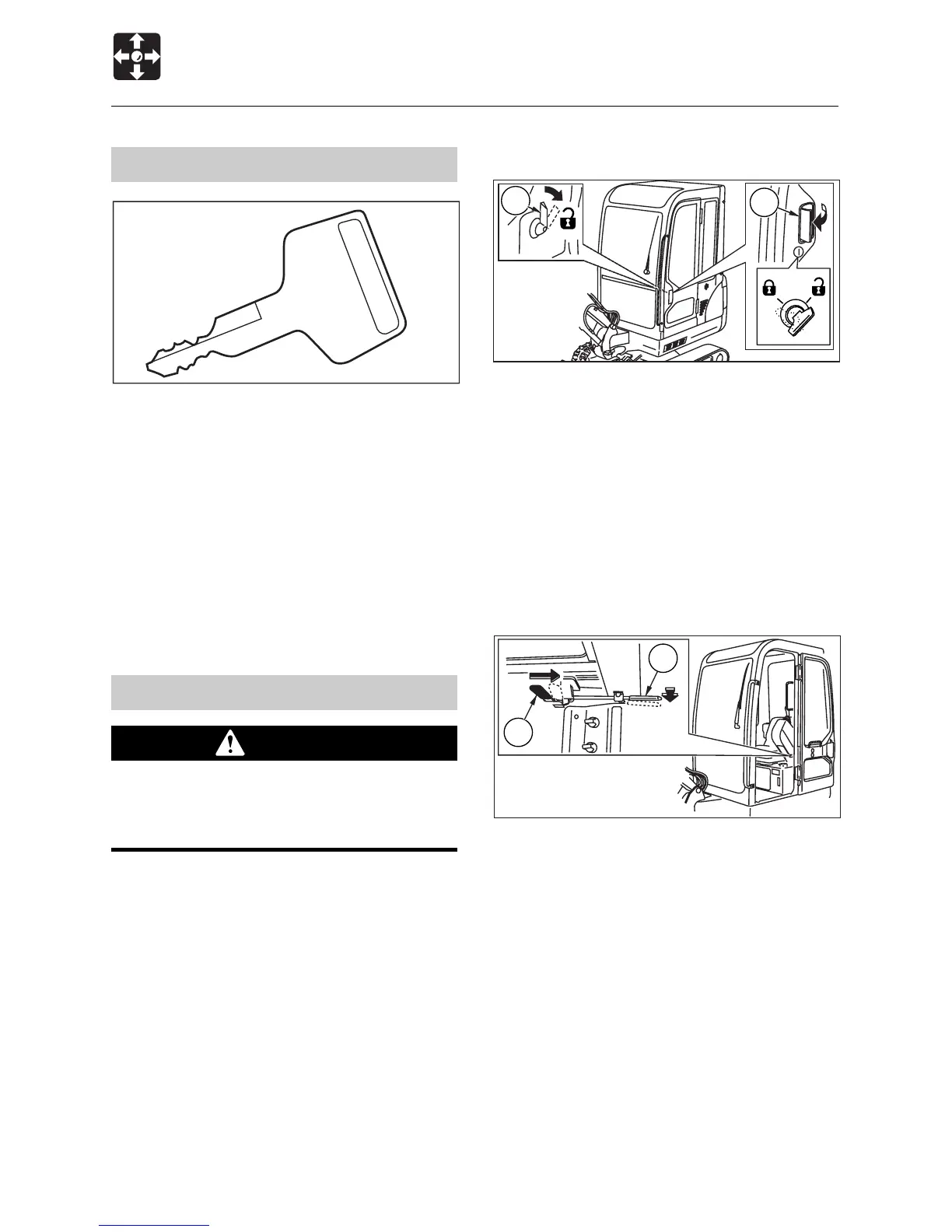

CONTROLS
Doors and Covers
Starter Key
The starter key is used not only to start and
stop the engine, but also to lock and unlock
the following places :
¡ Cab door
¡ Fuel filler cap
¡ Rear cover
¡ Rear cover
¡ Tool box
¡ Manual storage compartment (Canopy)
Cab Door
WARNING
When mounting and dismounting the
cab, first open the door fully to the locked
position and check that it does not move.
Open the door fully and press it against the
catch at the back of the door to lock it in place.
Always lock the door when mounting and
dismounting and when operating the
machine.
Lock and unlock
1. Insert and turn the starter key.
Opening
1. Pull the knob (1) towards you and open
the door.
To open the door from inside the cab, push
the lever (2) to the front.
2. Open the door fully and press it against
the cab to lock it in place.
Closing
1. Either push release lever (3) to the front
or lower release lever (4).
2. Close the released door.
E4B003
C4C001
2
1
4
3
C4C002

Takeuchi TB153FR Specifications

General

Engine Make	Yanmar
Engine Model	4TNV88
Tail Swing Type	Zero Tail Swing
Maximum Reach	5, 570 mm
Max Reach Ground Level	5, 570 mm
Transport Width	2, 000 mm
Transport Height	2, 600 mm
