CONTROLS

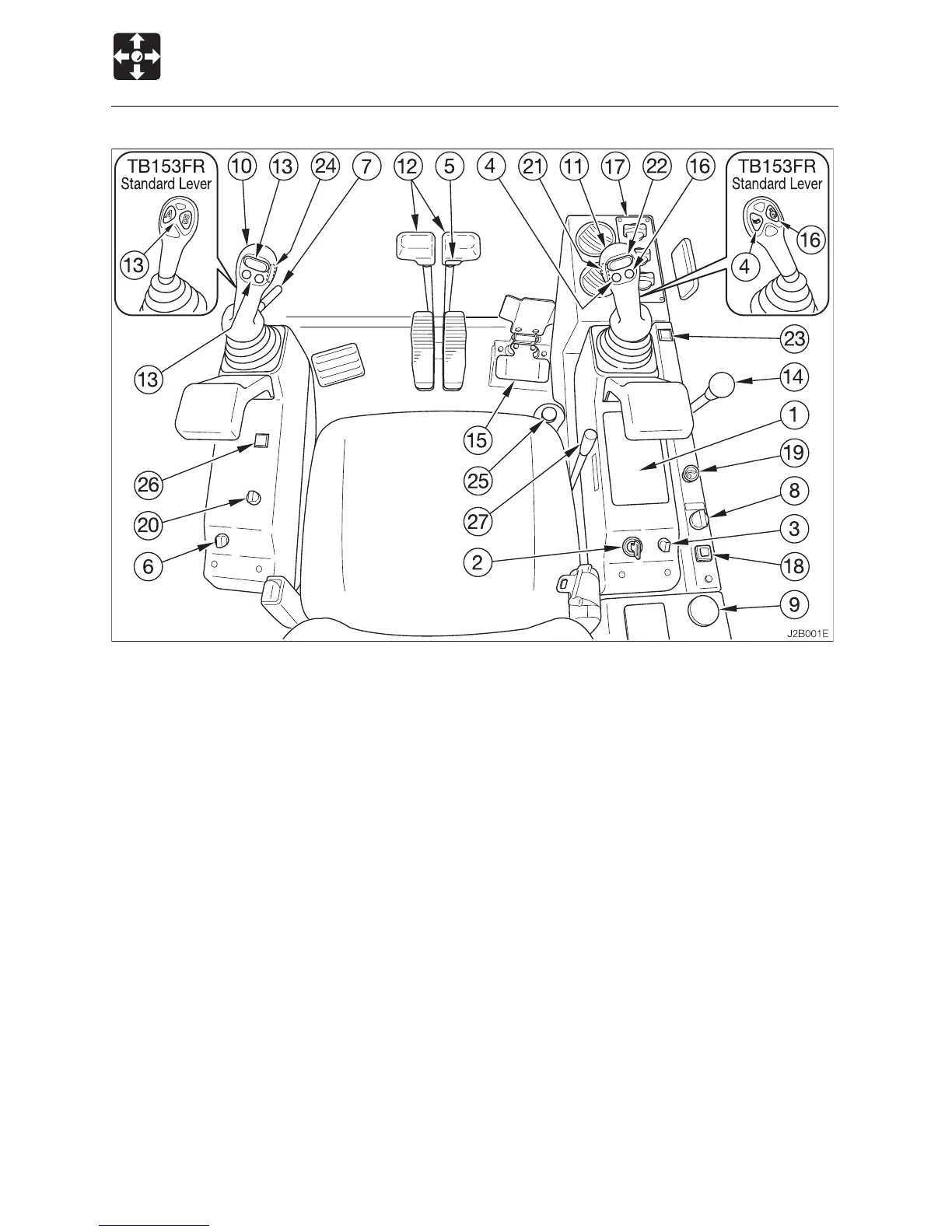

Names of Components
1. Instrument cluster
2. Starter switch
3. Light switch
4. Horn button
5. Travel speed switch
6. Wiper switch (Cab)
7. Safety lock lever
8. Attachment Interference switch
9. Throttle controller < TB180FR >
10. Left operating lever
11. Right operating lever
12. Travel levers
13. First Auxiliary hydraulic switches
14. Blade lever
15. Offset pedal
16. Decel. button
17. Heater & AC control panel
18. Automatic decel. button < TB180FR >
19. Cigarette lighter
20. Overload warning switch (Option)
21. Selector button (2nd or 4th Aux.) (Option)
< TB180FR >
22. Second / fourth auxiliary hydraulic switch
(Option)
23. Second auxiliary hydraulics operation
indicator lamp (Option) < TB180FR >
24. Third auxiliary hydraulic button (Option)
25. Third auxiliary hydraulic switch (Option)
26. Third auxiliary hydraulics warning lamp
(Option)
27. Throttle lever < TB153FR >

Takeuchi TB153FR Specifications

General

Engine Make	Yanmar
Engine Model	4TNV88
Tail Swing Type	Zero Tail Swing
Maximum Reach	5, 570 mm
Max Reach Ground Level	5, 570 mm
Transport Width	2, 000 mm
Transport Height	2, 600 mm
