Takeuchi TB153FR User Manual

54

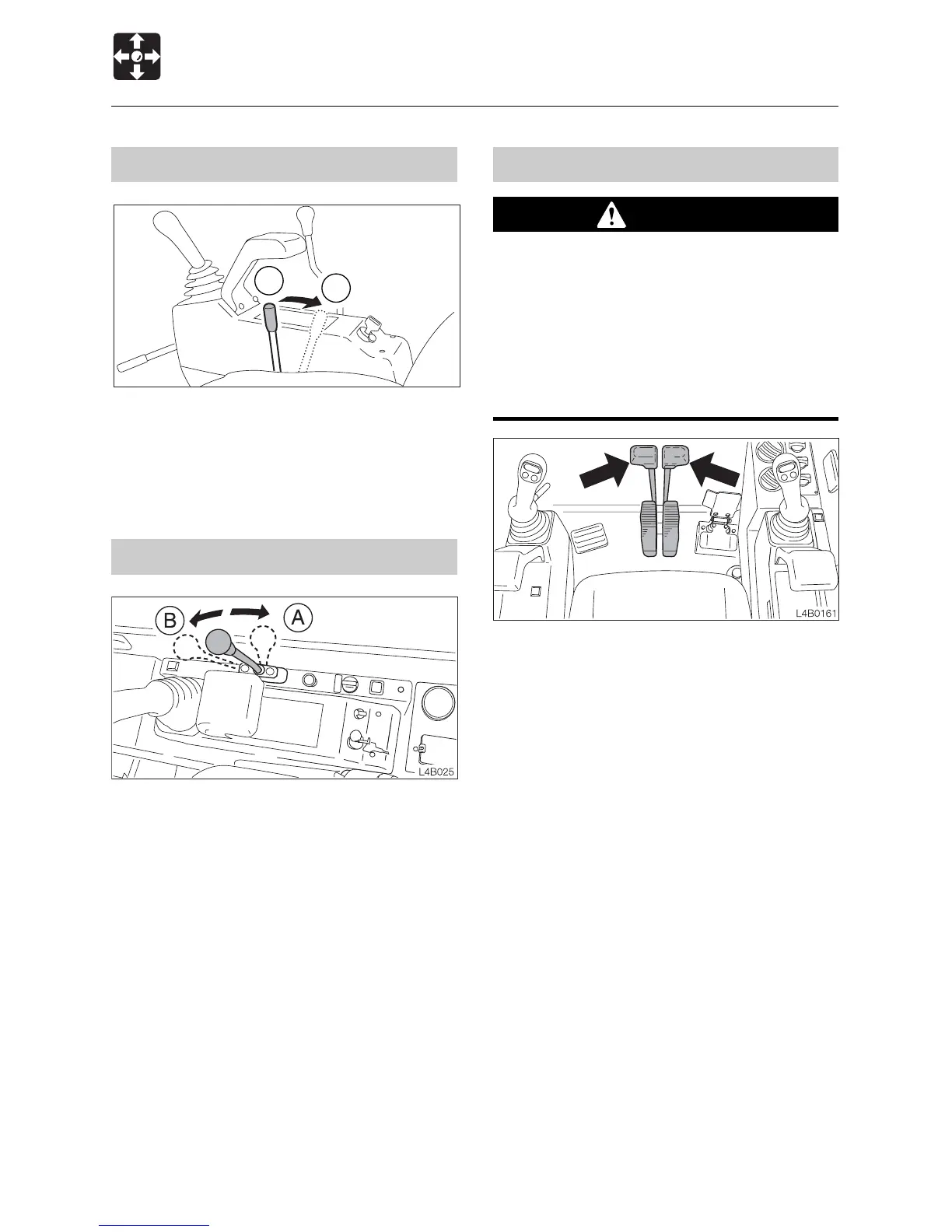

CONTROLS
Travel Levers
WARNING
Before operating the travel levers, check
to make sure that the dozer blade is to
the front of the operator’s seat. BE
AWARE that when the dozer blade is to
the rear of the operator’s seat, the travel
levers operate in the opposite direction
to when the dozer blade is in the front.
Use these to move forward and backward
and to change directions.
Refer to page 79 “Operating the Travel
Levers”.
Levers and Pedals
Throttle Lever < TB153FR >
This controls the engine speed.
(A) .... Low idling
(B) .... Maximum speed
Blade Lever
Use this lever to operate the dozer blade.
(A) .... Blade up
(B) .... Blade down
Refer to page 85 “Operating the Dozer
Blade”.
D5B021E
A
B

Takeuchi TB153FR Specifications

General

Engine Make	Yanmar
Engine Model	4TNV88
Tail Swing Type	Zero Tail Swing
Maximum Reach	5, 570 mm
Max Reach Ground Level	5, 570 mm
Transport Width	2, 000 mm
Transport Height	2, 600 mm
