CONTROLS

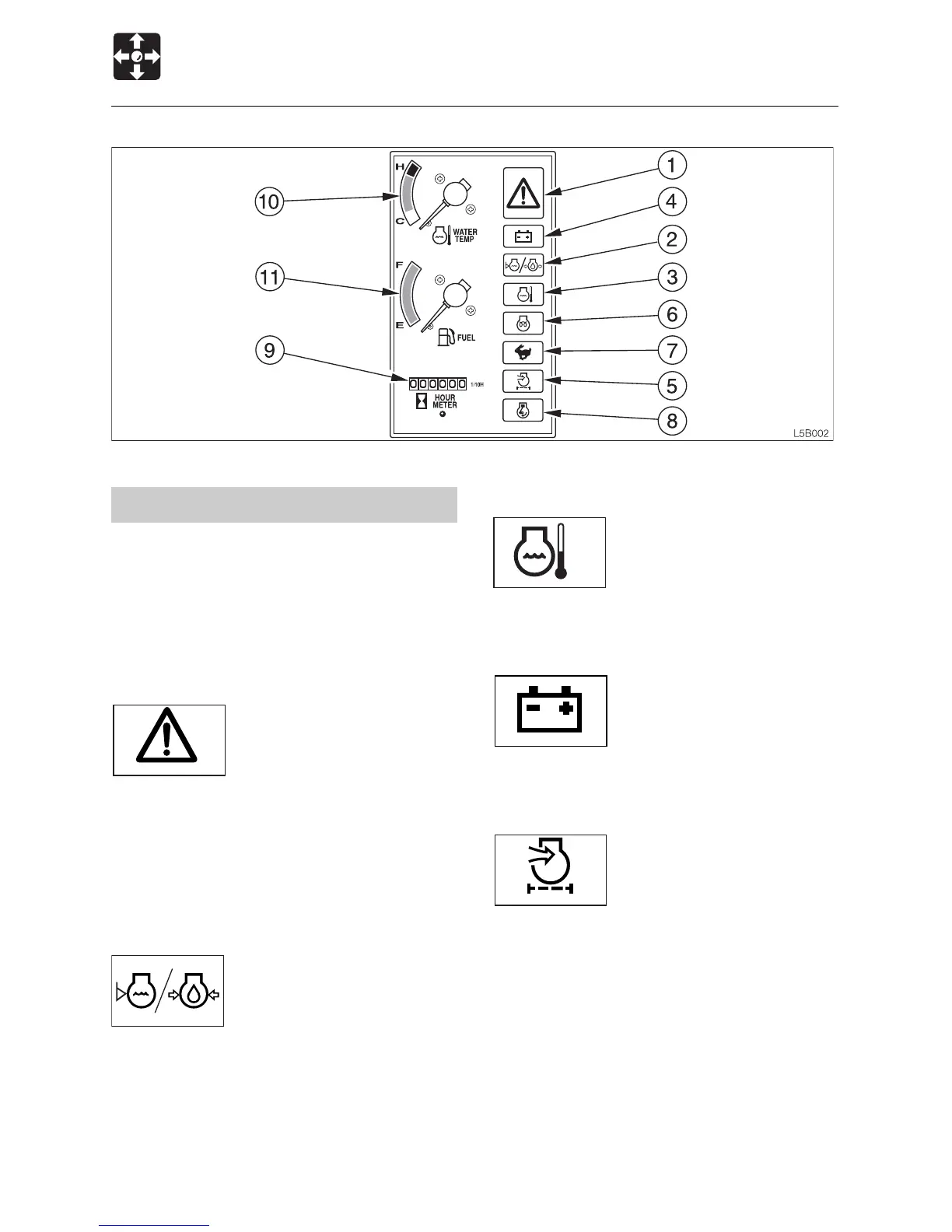

Instrument Cluster
Warning Lamps
IMPORTANT: If a warning lamp flashes
and an alarm is sounded, stop all
operations immediately and inspect and
maintain the appropriate part.
Refer to page 169 “Troubleshooting”.
1. Engine Emergency Lamp
This lamp flashes and an
alarm is sounded if the
engine oil pressure or the
coolant level in the radiator
drops or the coolant temperature rises
abnormally while the engine is running. After
approximately 5 seconds, the engine stops
or low idling automatically.
2. Engine Oil Pressure / Coolant Level
Warning Lamp
This lamp flashes and an
alarm is sounded if the
lubricant oil pressure or
coolant level in the radiator
drops abnormally while the engine is running.
3. Coolant Temperature Warning Lamp
This lamp flashes and an
alarm is sounded if the
engine coolant temperature
rises abnormally while the
engine is running.
4. Battery Charge Warning Lamp
This lamp flashes and an
alarm is sounded if a
problem arises in the
charging system while the
engine is running.
5. Air Cleaner Warning Lamp
This lamp flashes and an
alarm is sounded if the air
cleaner filter is clogged while
the engine is running.
G4B009
C4B012
C4B030
G4B010
L3B036

Takeuchi TB153FR Specifications

General

Engine Make	Yanmar
Engine Model	4TNV88
Tail Swing Type	Zero Tail Swing
Maximum Reach	5, 570 mm
Max Reach Ground Level	5, 570 mm
Transport Width	2, 000 mm
Transport Height	2, 600 mm
