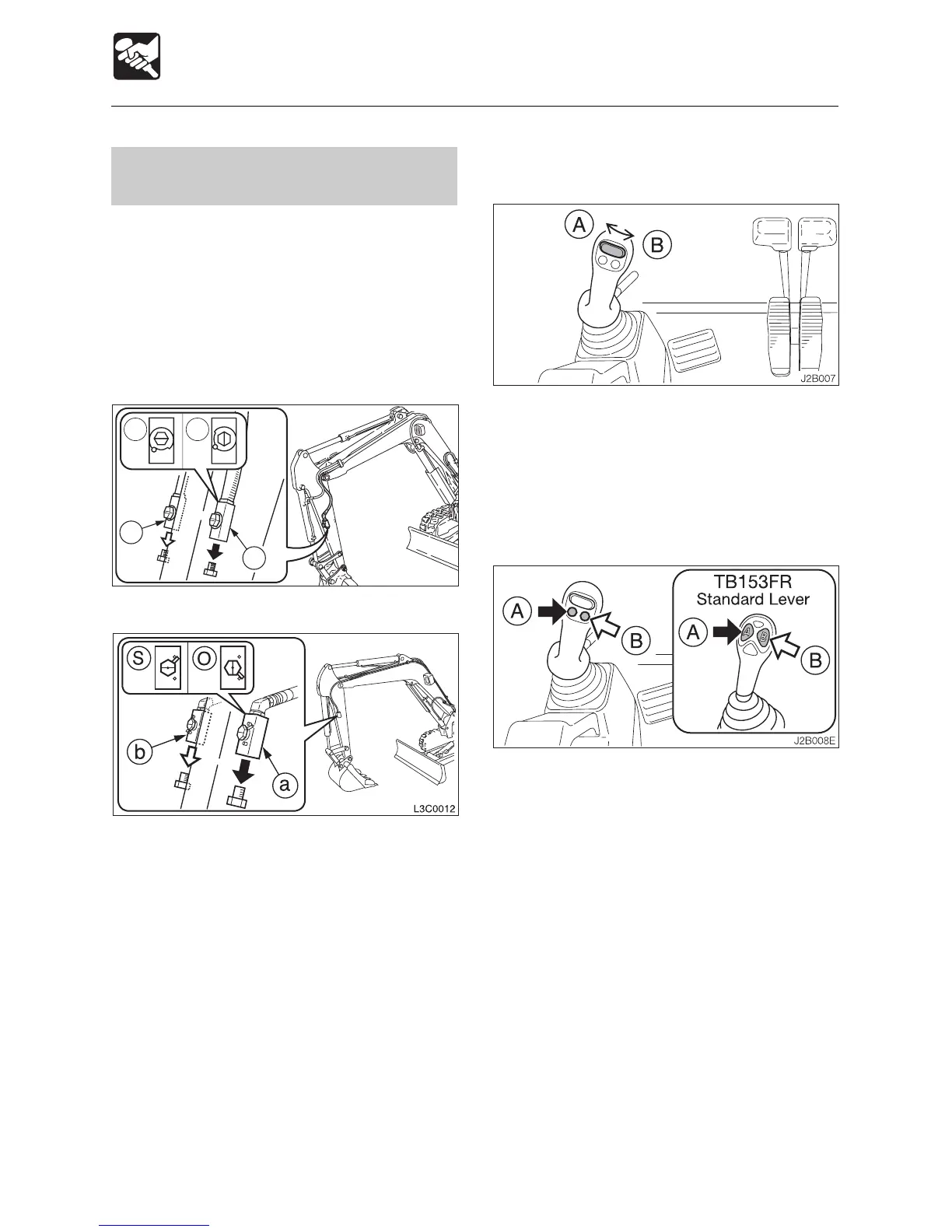

OPERATION
Machine Operation
Operating the First Auxiliary
Hydraulics
Use this to operate a breaker, crusher or
other attachment.
Two methods of operation are permitted:
operation with the auxiliary hydraulic buttons
and operation with the slider switch
(proportional control).
< TB153FR >
< TB180FR >
Operating With the Slider Switch
(Proportional Control)
aTo deliver hydraulic oil to port (a):
Move the switch to the left (A).
eTo deliver hydraulic oil to port (b):
Move the switch to the right (B).
Operating With the Auxiliary Hydraulic
Buttons
aTo deliver hydraulic oil to port (a):
Press (A).
eTo deliver hydraulic oil to port (b):
Press (B).
b
S
O
a
J1C002

Takeuchi TB153FR Specifications

General

Engine Make	Yanmar
Engine Model	4TNV88
Tail Swing Type	Zero Tail Swing
Maximum Reach	5, 570 mm
Max Reach Ground Level	5, 570 mm
Transport Width	2, 000 mm
Transport Height	2, 600 mm
