Takeuchi TB153FR User Manual

153
MAINTENANCE

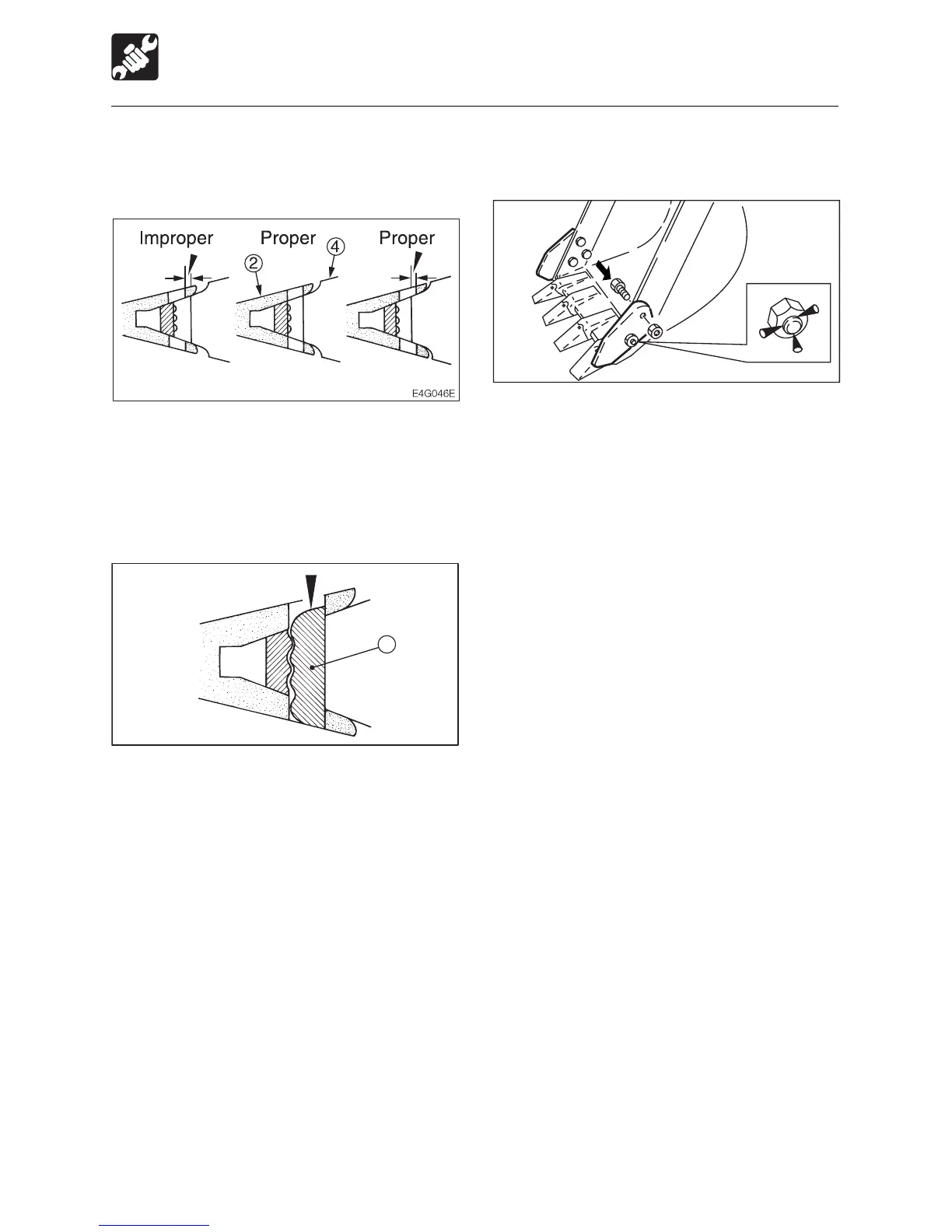

Do not let the rubber pin lock stick out past
the welding adapter surface.
2. Install point (2) onto welding adaptor (4).
•Insert the point so that the surface
behind the point’s pin hole is flush or
deeper than the surface behind the
welding adapter’s pin hole.
3. Drive in locking pin (1).
After driving in the locking pin, use a pin with
the same surface as the point surface. Do
not use worn locking pins.
When Required
E4G047
1
¡¡
¡¡
¡ Side cutter
Installation
1. Insert the bolts from the inner of the bucket
and tighten the nuts.
•Tightening torque: 241 N·m (178 ft-lb)
2. Caulk the bolts with a punch at three spots
along the periphery of the screw to prevent
the nuts from coming loose.
G4G026

Takeuchi TB153FR Specifications

General

Engine Make	Yanmar
Engine Model	4TNV88
Tail Swing Type	Zero Tail Swing
Maximum Reach	5, 570 mm
Max Reach Ground Level	5, 570 mm
Transport Width	2, 000 mm
Transport Height	2, 600 mm
