Takeuchi TB153FR User Manual

41

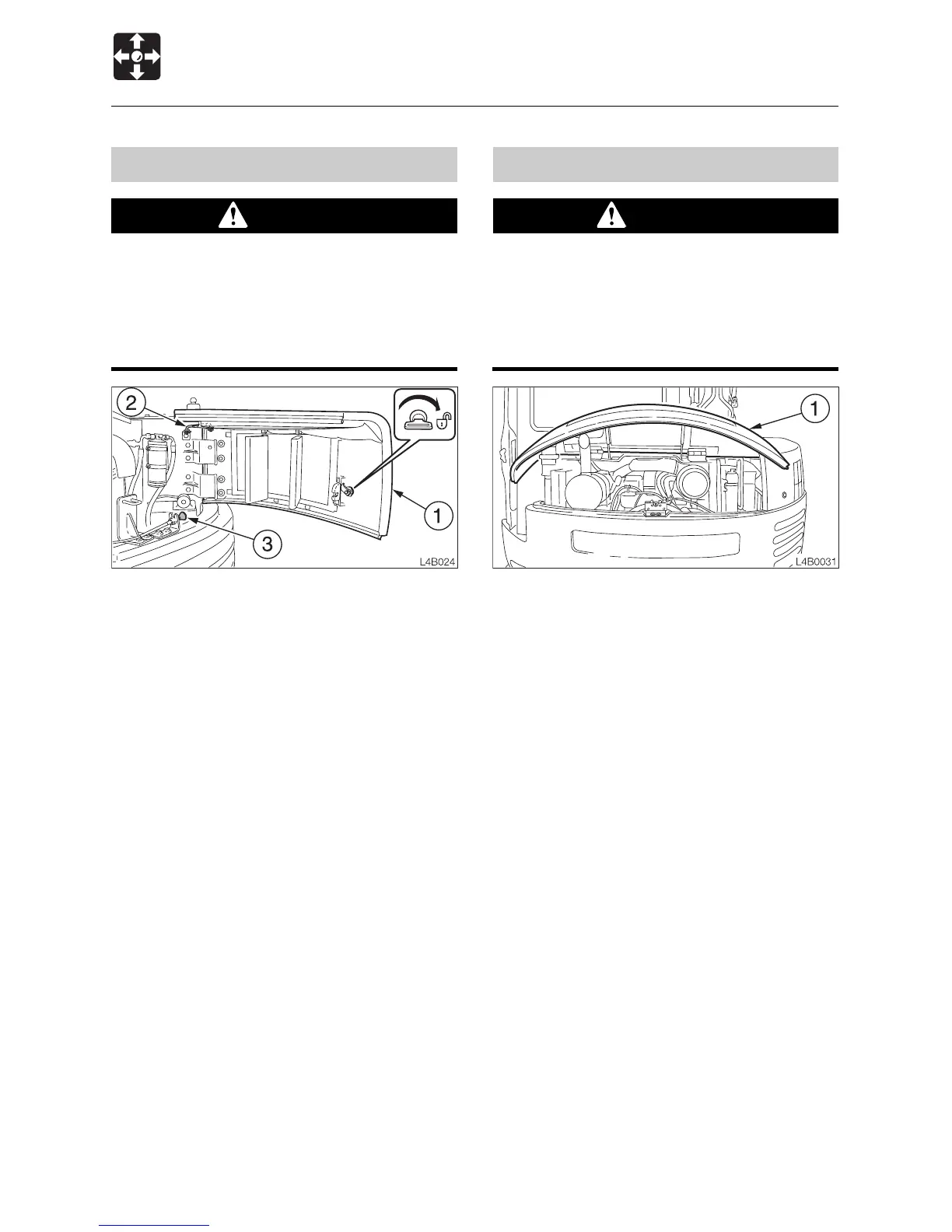

CONTROLS
Doors and Covers
Engine Hood
WARNING
Before opening the engine hood, be sure
to stop the engine. If your hands or tools
should get caught in the fan or fan belt
while the engine is running they may be
severed.
Opening
1. Open the rear cover and pull the unlock
knob (3).
Refer to “Rear Cover”.
2. Lift the engine hood (1) fully.
Closing
1. Close the engine hood and press it down
until a click is heard at the front.
Rear Cover
CAUTION
¡¡
¡¡
¡ When opening the rear cover, open it
firmly to the locked position.
¡¡
¡¡
¡ When opening and closing the rear
cover, be careful not to get your hands
or other parts of your body caught.
Opening
1. Insert the starter key and turn it clockwise
to unlock the rear cover (1).
2. Open the rear cover (1) fully until it stops.
(It locks automatically)
3. Check that the rear cover (1) is securely
locked in place.
Engine hood unlock knob (3) is located
behind the rear cover (1).
Closing
1. Raise the stay (2) to unlock the rear cover
(1).
2. Close the rear cover (1) and press it inside
until a click is heard at the front.

Takeuchi TB153FR Specifications

General

Engine Make	Yanmar
Engine Model	4TNV88
Tail Swing Type	Zero Tail Swing
Maximum Reach	5, 570 mm
Max Reach Ground Level	5, 570 mm
Transport Width	2, 000 mm
Transport Height	2, 600 mm
