DISASSEMBLY AND ASSEMBLY
HYDRAULIC PUMP
6
4
HYDRAULIC PUMP 4I0AY001

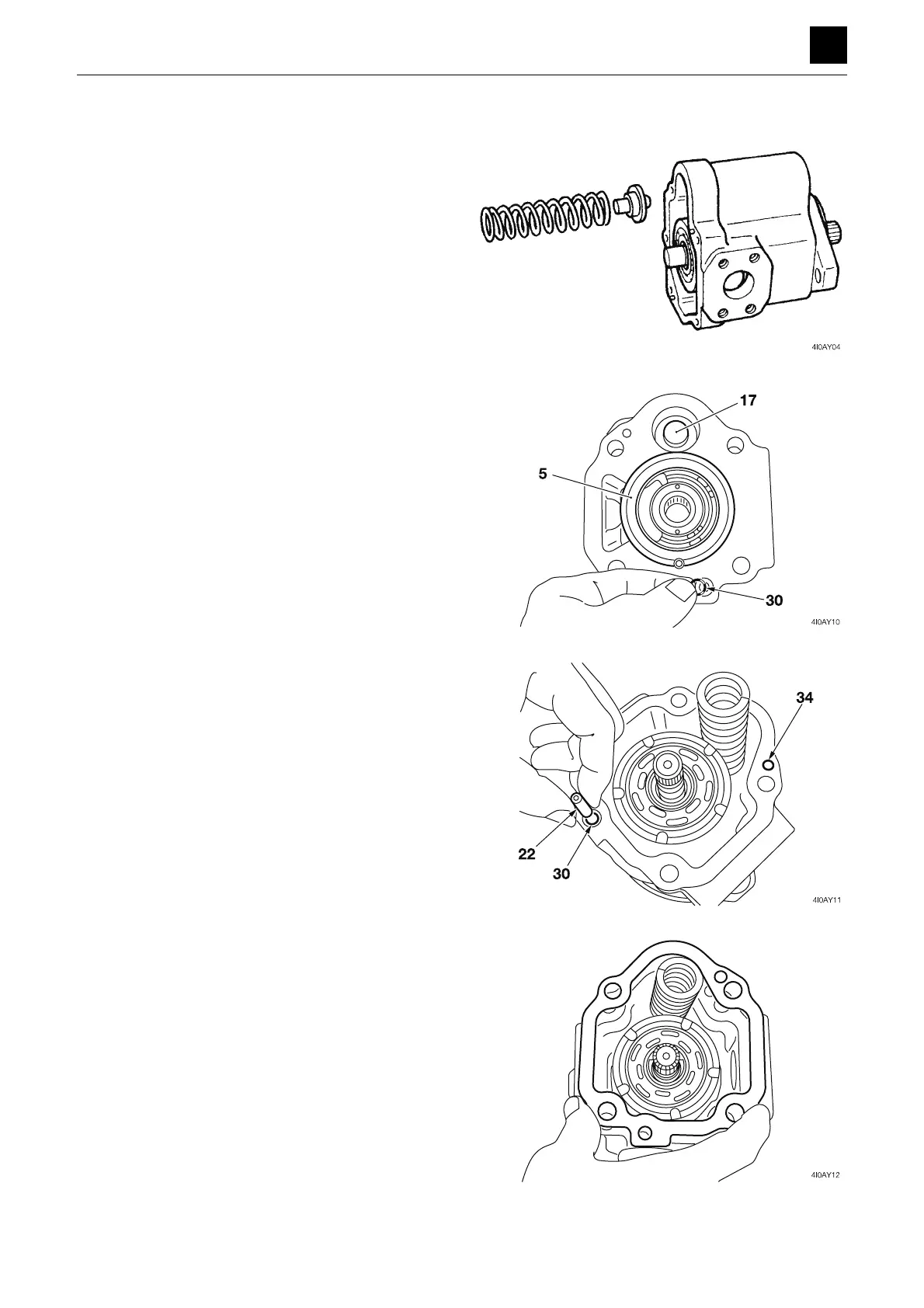

7. Insert the spring (15) into the spring holder (16). Fi-
nally, insert the spherical part of the spring holder
into the hole on the swash plate.
8. Insert the spring guide (17) and O-ring (30) into the
body H (2).
9. Align the valve plate (5) with the spring pin on the
body H and attach it carefully.
• The side of the valve plate with the barbs is the
sliding surface that is to make contact with the cyl-
inder block. Make sure not to reverse it.
10. Insert the O-ring (30) and pins (22) and (34) into the
body S (1).
11. To attach the packing, line it up with the locator pin
on the body S.
• Use a new packing.
To Next Page
