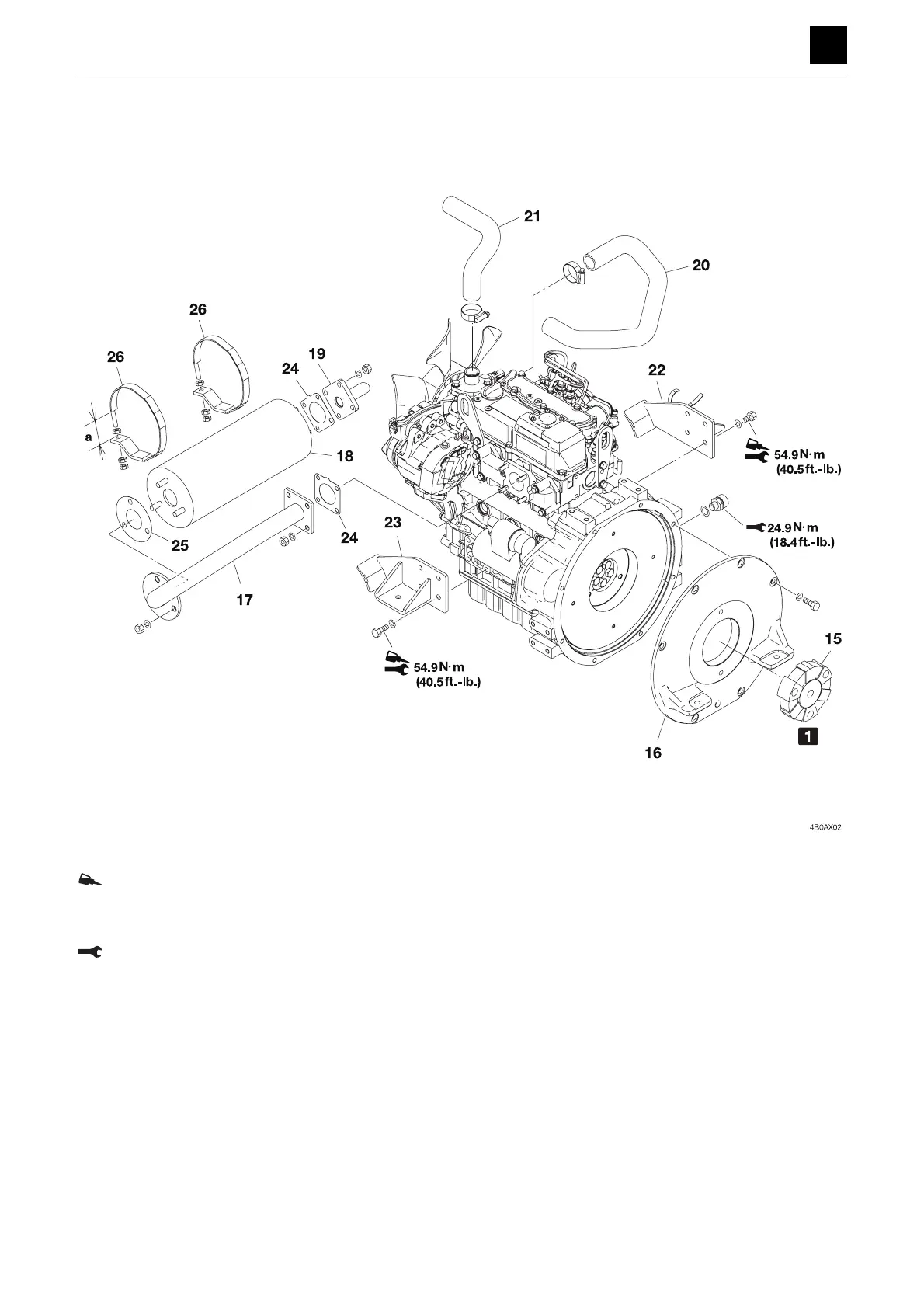

DISASSEMBLY AND ASSEMBLY
DRIVE SYSTEM
2
4
DRIVE SYSTEM
4B0AX00
ThreeBond #1324
1
Use the included bolts which have been coated to prevent them from
becoming loose.
54.9 N·m (40.5 ft-lb)
Press-fit the three included spring pins into the a
ssembly to insert
them.
2
Clearance “a”: 19 mm (0.75 in.)
15.
Coupling
21.
Hose
16.
Housing
22.
Engine hood FR
17.
Pipe
23.
Engine hood FL
18.
Silencer
24.
Gasket
19.
Pipe
25.
Gasket
20.
Hose
26.
Band
92
94
