DISASSEMBLY AND ASSEMBLY
DRIVE SYSTEM
3
4

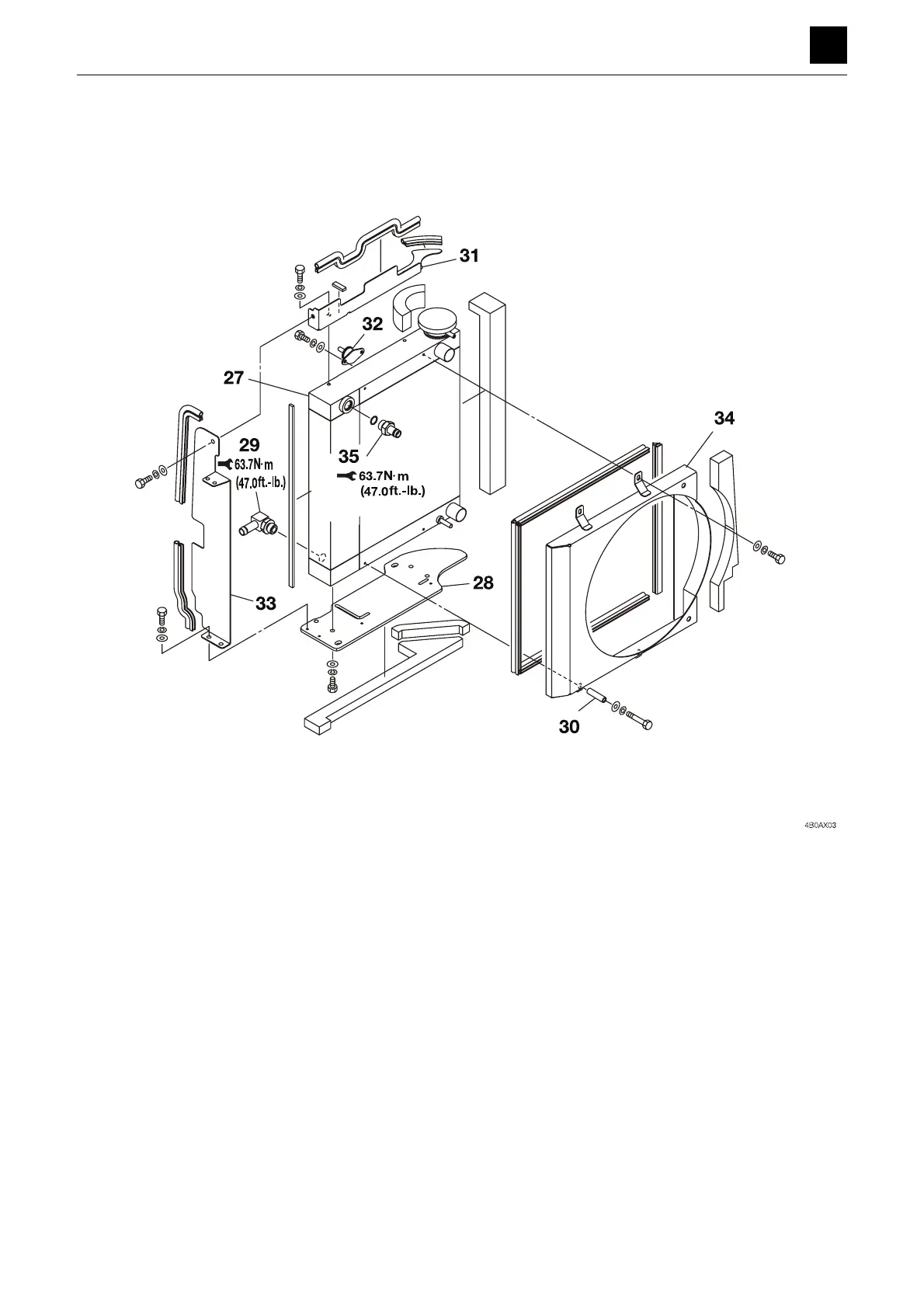

DRIVE SYSTEM 4B0AX00
27. RAD/HOC 32. Cushion rubber
28. Plate 33. Plate
29. Elbow 34. Shroud assembly
30. Pipe 35. Nipple
31. Plate
