TDE MACNO DSC-03N - General Scheme of Dsct Drive Connections (3 X 380 Vac)

User manual 3-2
DSC/DSCT Series

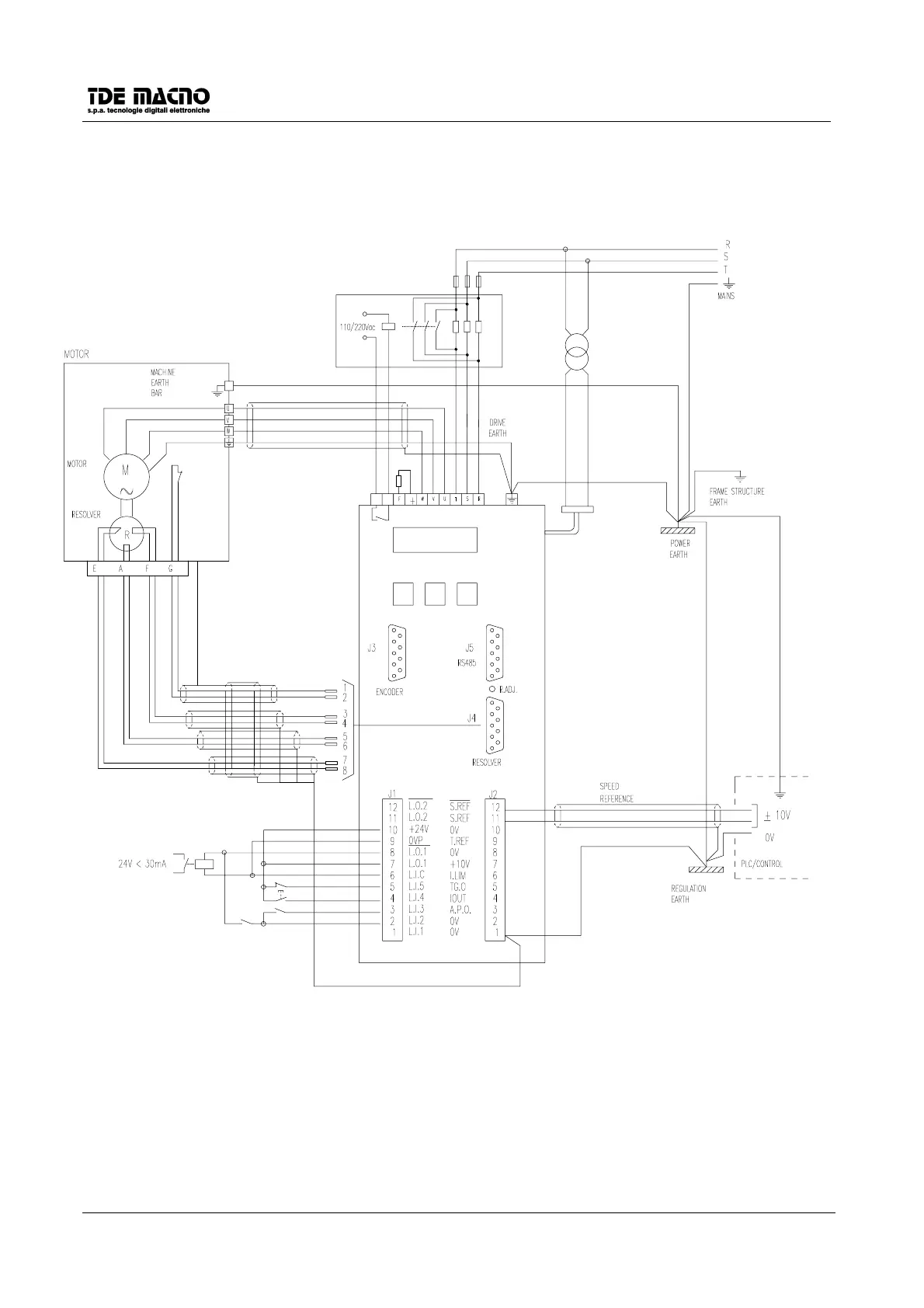

3.2. GENERAL SCHEME OF DSCT DRIVE CONNECTIONS (3 X 380 VAC).
CONNECTOR FOR
AUX.POWER SUPPLY
AUX.POWER
EXTERNAL ENABLE
RESET
REFERENCE ENABLE
ON-LINE
K
SUPPLY WITH
380V/220V
30VA MAX.
TRANSFORMER
RSS
F
IC IC
RF
INTERNAL RELAY, ONLY FOR
SIZES 37 AND 47A
K2
K1
External switch-on current limitation
device only necessary for sizes 37A
and 47A
SW
(OPTION)
