TDK-Lambda GENESYS 10KW - Page 24

83
-
530
-
000 Rev.
G
21

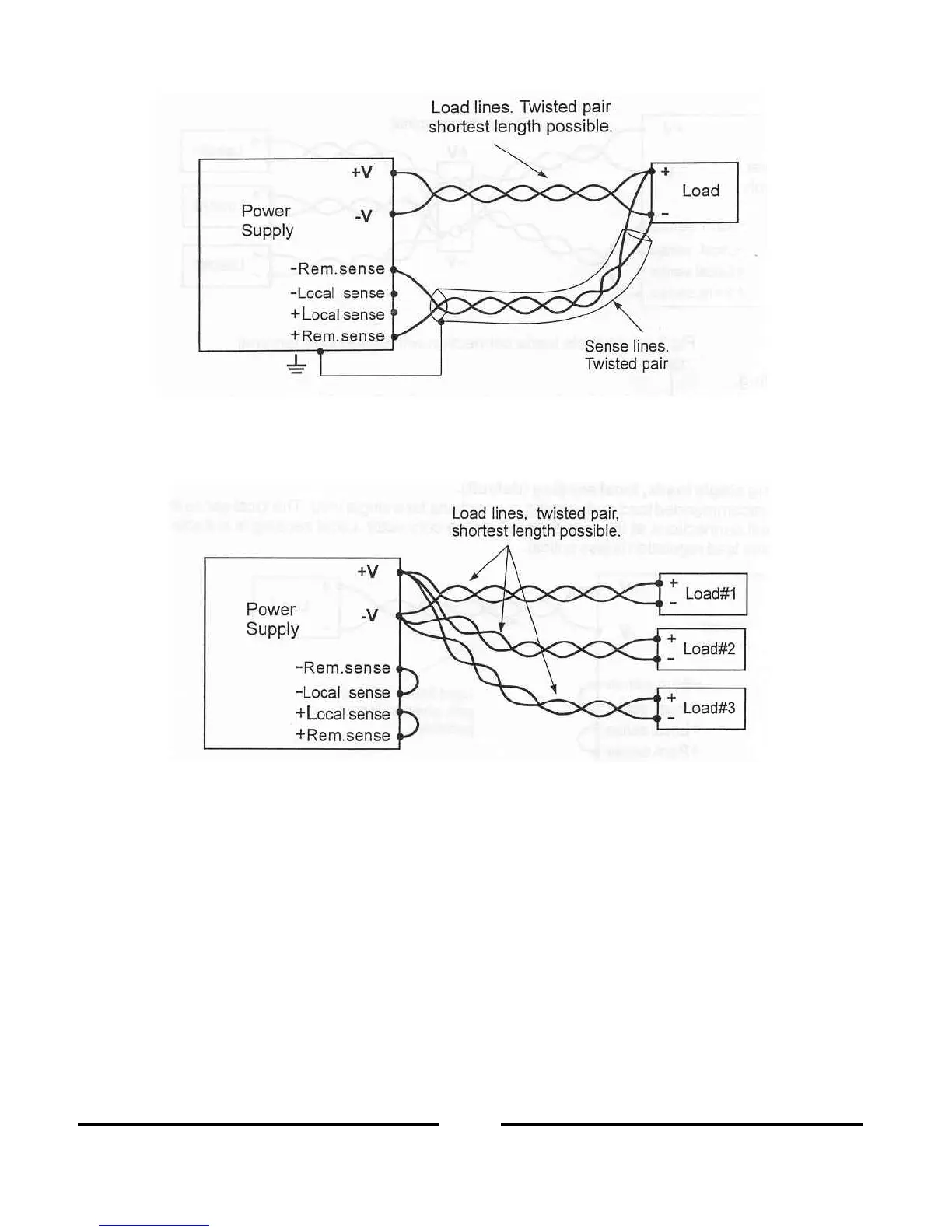

Fig. 3
-
11: Remote sensing, single load
Fig. 3
-
12: Multiple loads connection, radial distribution, local sense
3.9.6
Multiple load connection with distribution terminals
If remotely located outp
ut distribution terminals are used, the power supply output terminals should be
connected to the distribution terminals by pair of twisted and/or shielded wires. Each load should be
separately connected to the remote distribution terminals (see Fig.3
-
13).
If remote sensing is required, the sensing wires should be connected to the distribution terminals or at
the most crit
i
cal load.
