CAUTION
Make sure that the connection between
–
V terminals is reliable to avoid disconnection
during operation. Disconnection may
cause damage to the power supply.
NOTE
With local sensing it is important to minimize the wire lengt
h and resistance. Also the positive and
negative wire resistance should be close as possible to each other to achieve current balance b
e-
tween power supplies
*Programmed Current to zero
*UVL to zero volts
*OVP to its maximum value
*AST OFF
*OUT OFF
*Foldback protection OFF
*Locked Front Panel

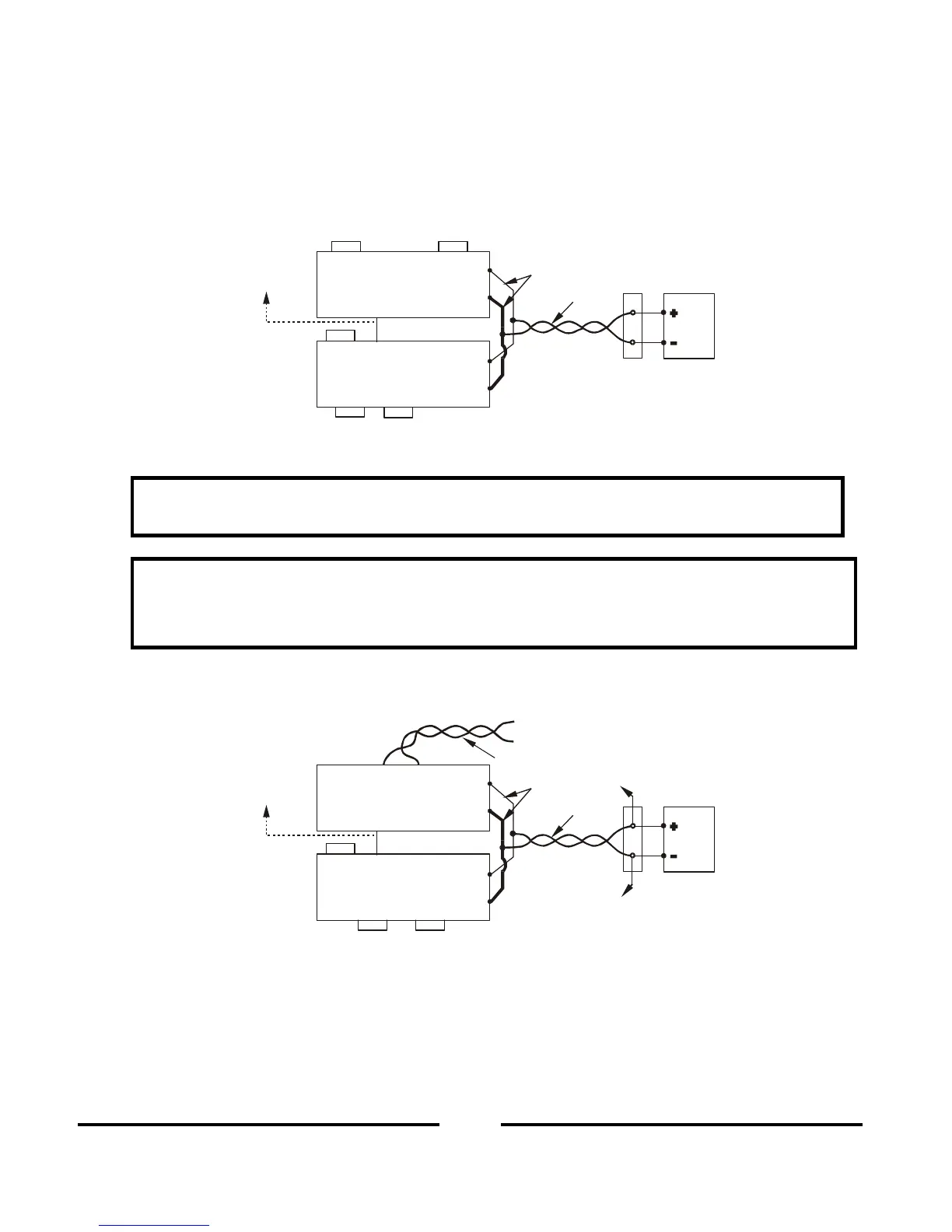

Fig.5-4: Parallel connection with local sensing
MASTER
POWER SUPPLY
SLAVE#1
POWER SUPPLY
J1-25
J1-10
P
IPGM
+
V
-
V
+
V
-
V
LOAD
As short as possible
Twisted
pair
+S
-S
J1-8
J1-12
To J1-10
SLAVE#2
POWER SUPPLY
-S
-LS
+LS
+S
+LS
-LS
Fig.5-5: Parallel operation with Remote sensing
MASTER
POWER SUPPLY
SLAVE#1
POWER SUPPLY
J1-25
J1-10
P
IPGM
+
V
-
V
+
V
-
V
+S
-S
LOAD
As short as possible
Twisted
pair
+S
-S
+S
-S
Twisted
pair
J1-8
J1-12
To J1-10
SLAVE#2
POWER SUPPLY
+S
+LS
-LS
-S
